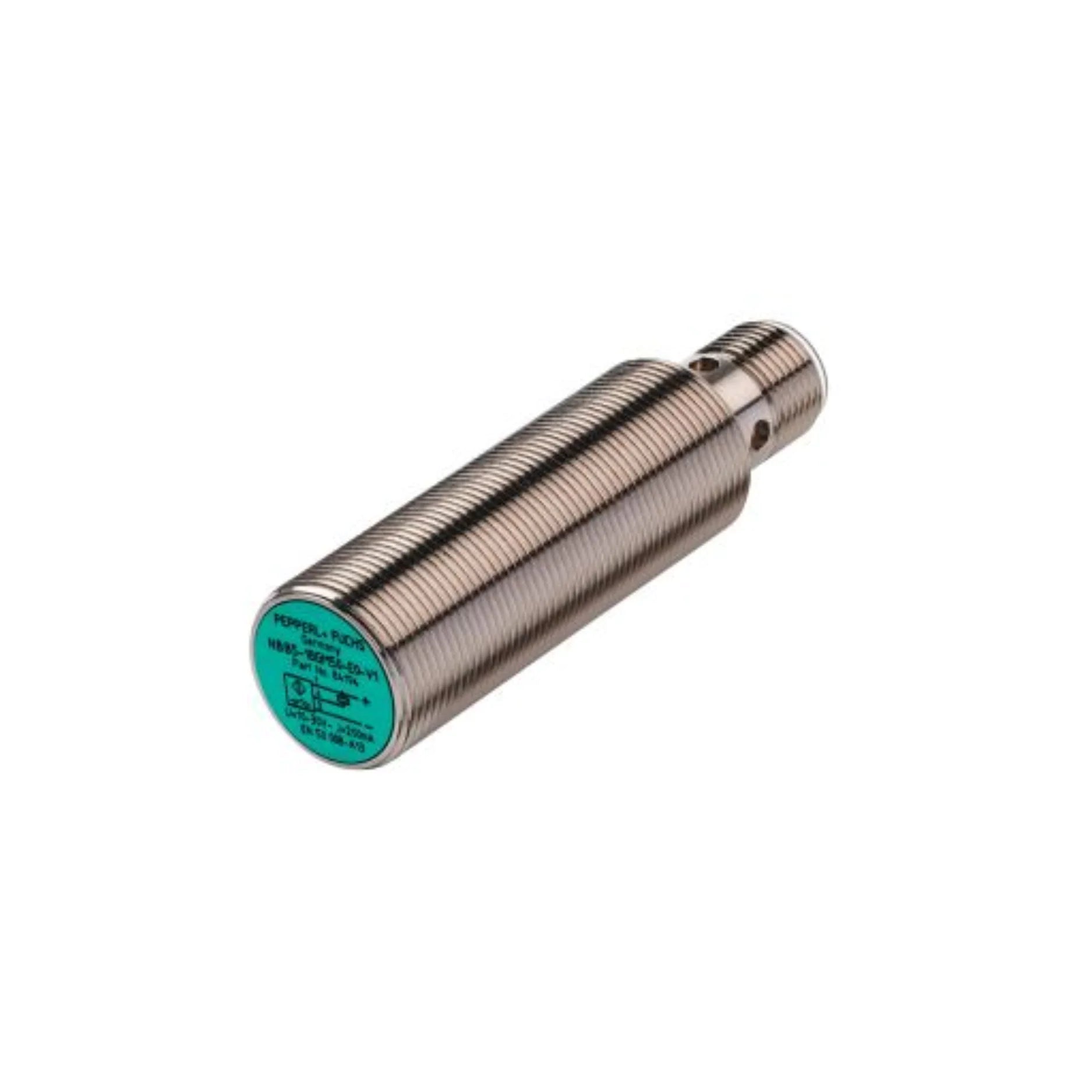

Pepperl+Fuchs NJ5-18GM50-E2-V1

Overview

The Pepperl+Fuchs NJ5-18GM50-E2-V1 is a pinnacle of industrial sensing technology, meticulously engineered to provide unparalleled precision and reliability in diverse automation environments. This high-performance M18 inductive proximity sensor is expertly designed for the accurate, non-contact detection of metallic objects within a 5 mm flush sensing range. Built to withstand the rigors of demanding industrial applications, its robust stainless steel housing and superior IP67 protection rating ensure exceptional durability and resistance to harsh operating conditions. Featuring a PNP normally open (NO) switching output, the NJ5-18GM50-E2-V1 offers seamless integration into existing control systems, making it an indispensable component for optimizing operational efficiency and maintaining stringent quality control across various industries.

Key Features

• Precision Sensing: Achieves a highly accurate 5 mm flush installation sensing range, crucial for precise object detection and positioning tasks.
• Reliable Output: Equipped with a PNP switching output with a normally open (NO) function, ensuring straightforward and dependable signal transmission for control system integration.
• Broad Voltage Compatibility: Operates efficiently across a wide 10 to 60 V DC voltage range, accommodating standard industrial power supplies without issue.
• High-Speed Operation: Boasts a rapid switching frequency of up to 1,500 Hz, making it exceptionally well-suited for applications demanding fast response times and high throughput.
• Stable Performance: Features a typical hysteresis of 6%, guaranteeing consistent and accurate switching behavior to prevent chatter and ensure stable operation.
• Exceptional Durability: Constructed with a high-grade stainless steel housing (1.4305 / AISI 303), providing superior resistance to corrosion, mechanical stress, and general industrial wear.
• Environmental Resilience: Carries an IP67 protection rating, offering comprehensive defense against dust ingress and temporary immersion in water, ensuring reliable performance in challenging environments.
• Wide Temperature Range: Functions flawlessly within an ambient operating temperature range of -25°C to +70°C, suitable for a variety of climatic and industrial conditions.
• Effortless Connectivity: Incorporates a standard M12 connector plug for quick, secure, and tool-free installation and replacement, minimizing downtime.
• Clear Status Indicators: A highly visible yellow LED provides immediate visual confirmation of the switching state, facilitating easy monitoring and troubleshooting.

Technical Specifications

• Model Number: NJ5-18GM50-E2-V1
• Switching Function: Normally open (NO)
• Output Type: PNP
• Rated Operating Distance: 5 mm
• Installation: Flush
• Output Polarity: DC
• Assured Operating Distance: 0 to 4.05 mm
• Reduction Factors: Aluminum (0.2), Copper (0.15), Stainless Steel 304 (0.62), Brass (0.32)
• Operating Voltage Range: 10 to 60 V DC
• No-Load Supply Current: ≤ 9 mA
• Switching Frequency: 0 to 1,500 Hz
• Voltage Drop: ≤ 3 V
• Operating Current: 0 to 200 mA
• Off-State Current: 0 to 0.5 mA (typ. 0.01 mA)
• Time Delay Before Availability: ≤ 30 ms
• Ambient Temperature Range: -25°C to +70°C
• Housing Material: Stainless steel 1.4305 / AISI 303
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Connection Type: M12 connector plug
• Dimensions: Diameter 18 mm, Length 65 mm
• Compliance: EN IEC 60947-5-2

Applications

• Material Handling Systems: Essential for accurate detection, counting, and positioning of metal objects on conveyor belts, automated guided vehicles (AGVs), and sorting systems, enhancing logistical efficiency.
• Packaging Industry: Crucial for verifying the presence and correct placement of metal caps, foils, or components within packaging lines, ensuring product integrity and preventing costly errors.
• Automotive Manufacturing: Utilized for precise detection of metal parts during various stages of vehicle assembly, robotic welding, and quality inspection, contributing to high manufacturing standards.
• Process Control & Automation: Deployed in a wide array of industrial processes to monitor the positions and movements of metal materials, activating machinery, and ensuring automated sequences run smoothly.
• Machine Tooling: Integrates into CNC machines and other automated tools for workpiece detection, tool measurement, and collision avoidance, improving operational safety and precision.

Why Choose This Model?

Opting for the Pepperl+Fuchs NJ5-18GM50-E2-V1 signifies a commitment to unparalleled industrial performance and longevity. Its 5 mm flush sensing capabilities ensure extraordinary accuracy in detecting metallic objects, critical for maintaining tight tolerances in production processes. The construction, featuring a robust stainless steel housing and an IP67 protection rating, guarantees its resilience against the most challenging industrial environments, from dust-laden factories to areas exposed to splashes or temporary submersion. This durability drastically reduces maintenance needs and extends sensor lifespan. Furthermore, the combination of a user-friendly PNP NO output and a standard M12 connector simplifies both initial setup and ongoing system integration, minimizing installation time and complexity. When precision, reliability, and ease of use are paramount for your industrial automation needs, the NJ5-18GM50-E2-V1 stands out as the superior choice, delivering consistent performance that you can trust day in and day out.

Order Now

Enhance the efficiency and reliability of your industrial operations with the Pepperl+Fuchs NJ5-18GM50-E2-V1 M18 inductive sensor. Its robust design, precise detection capabilities, and seamless integration make it an ideal solution for a multitude of demanding applications. Invest in a sensor that delivers consistent, high-performance results. Add the NJ5-18GM50-E2-V1 to your cart today and experience the difference that Pepperl+Fuchs quality brings to your automation infrastructure. For bulk orders or technical inquiries, please contact our sales team.
