Pepperl+Fuchs NJ2-12GM40-E2-V1

Overview

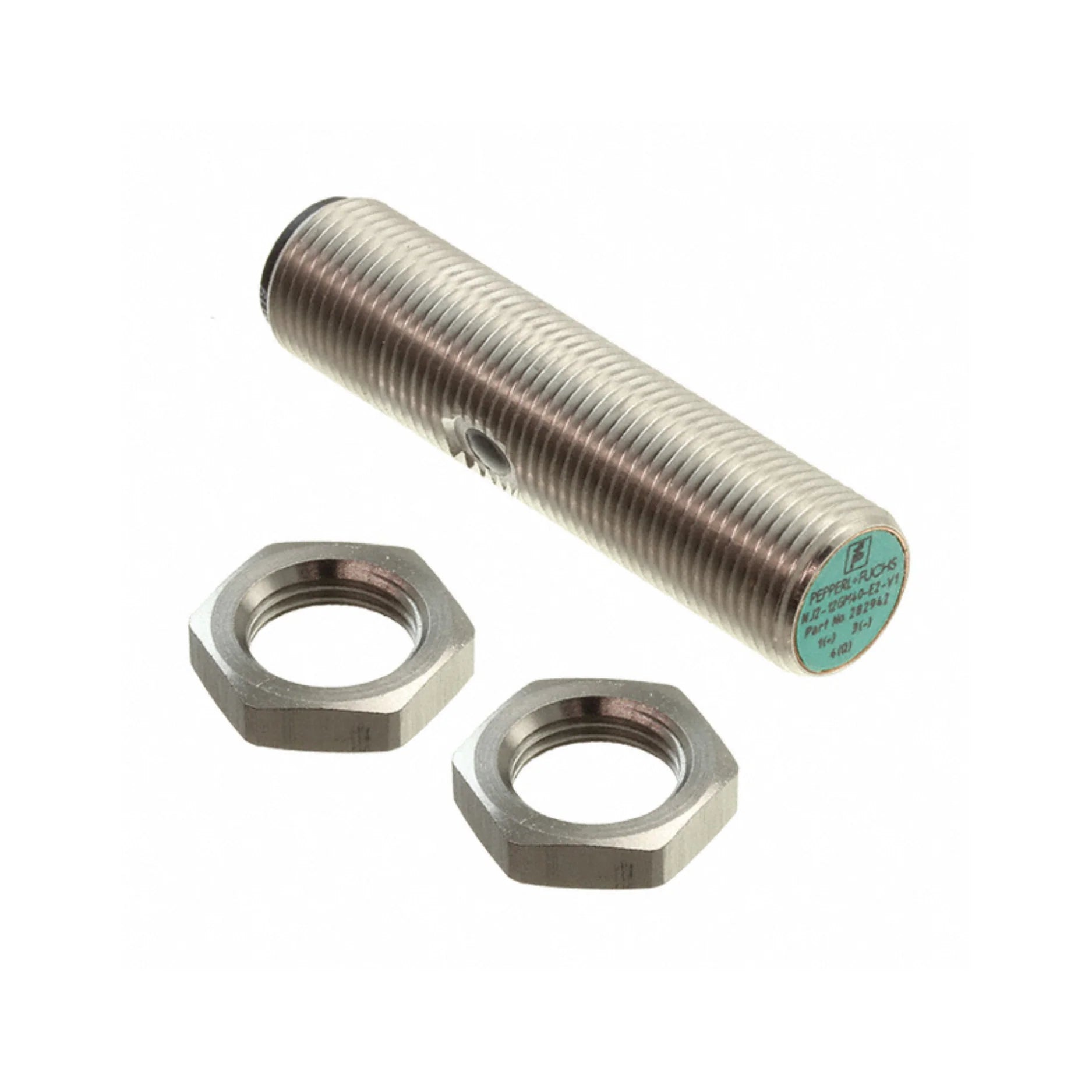

The Pepperl+Fuchs NJ2-12GM40-E2-V1 is a state-of-the-art 2mm inductive proximity sensor engineered for unparalleled precision and reliability in detecting metallic objects. This robust sensor, featuring a compact and flush-mountable design, is an essential component for a wide array of industrial automation challenges where accurate and consistent sensing is paramount. Its advanced technology ensures consistent performance even in demanding environments, making it a cornerstone for efficient and automated processes.

Key Features

• Sensing Distance: Precise 2mm detection range for accurate object identification.
• Output Type: PNP Normally Open (NO) configuration for seamless integration into existing control systems.
• Operating Voltage: Broad 10 to 60 V DC input range for versatile power supply compatibility.
• Switching Frequency: High-speed performance up to 3,000 Hz, perfect for fast-paced operations and quick detection.
• Installation: Fully flush mountable, saving space and providing a sleek, protected installation.
• Housing Material: Constructed from durable stainless steel (1.4305 / AISI 303) for maximum longevity and resistance to harsh industrial conditions.
• Connection Type: Standard 4-pin M12 connector facilitates quick and secure electrical connections.
• Protection Rating: IP67 rated, guaranteeing superior protection against dust ingress and temporary immersion in water.
• Operating Temperature Range: Wide operational range from -25°C to 70°C (-13°F to 158°F) ensures reliable function in diverse climates.
• Switching State Indicator: Clear yellow LED indicator for immediate visual confirmation of the switching status.

Technical Specifications

• Model: NJ2-12GM40-E2-V1
• Series: NJ2
• Reduction Factors:
  • Aluminum (rAl): 0.23
  • Copper (rCu): 0.21
  • Stainless Steel 304 (r304): 0.7
• Hysteresis: Optimized between 1% to 10%, typically 3%, for stable switching behavior.
• Reverse Polarity Protection: Integrated protection safeguards the sensor from incorrect wiring.
• Short-Circuit Protection: Pulsing short-circuit protection enhances sensor reliability and lifespan.
• Voltage Drop: Minimal voltage drop of ≤ 3 V ensures efficient power utilization.
• Operating Current: Capable of handling operating currents from 0 to 200 mA.
• Off-State Current: Extremely low off-state current of ≤ 0.5 mA, reducing power consumption.
• No-Load Supply Current: Efficient with a no-load supply current of ≤ 9 mA.
• Time Delay Before Availability: Rapid availability with a time delay of ≤ 20 ms.

Applications

The versatility and high performance of the Pepperl+Fuchs NJ2-12GM40-E2-V1 make it suitable for a broad spectrum of industrial applications, including:

• Automation Systems: Essential for precise positioning, presence detection, and confirmation of metal components in automated assembly lines and robotic work cells.
• Conveyor Belts: Reliably detects objects on conveyor systems, enabling accurate counting, sorting, and flow control in manufacturing and logistics.
• Robotics: Ideal for end-of-arm tooling in robotics, providing critical position sensing for robotic grippers and manipulators, enhancing precision and safety.
• Packaging Machines: Ensures efficient operation in packaging lines by accurately detecting metal parts, containers, or closures, preventing errors and optimizing throughput.
• Material Handling: Used for general object detection and control in various material handling scenarios, from warehousing to complex sorting systems.

Why Choose This Model?

Opting for the Pepperl+Fuchs NJ2-12GM40-E2-V1 means investing in a sensor that delivers exceptional performance, durability, and ease of use. Here’s why it stands out:

• High Precision: Benefit from consistently accurate detection with its sensitive 2mm sensing range, critical for tight tolerances in modern manufacturing.
• Durable Construction: The robust stainless steel housing guarantees extended operational life, resisting corrosion and mechanical stress in even the harshest industrial settings.
• Reliable Performance: Its impressive switching frequency ensures unwavering performance, capable of keeping up with high-speed machinery and rapid automation processes, reducing downtime and enhancing productivity.
• Easy Integration: The industry-standard M12 connector simplifies installation and wiring, allowing for quick deployment and minimal setup time, thereby reducing labor costs.
• Robust Protection: An IP67 rating provides peace of mind, assuring you of the sensor's resilience against dust, dirt, and temporary water immersion, making it suitable for challenging environmental conditions.
• Trusted Brand Quality: Pepperl+Fuchs is a globally recognized leader in industrial sensors, ensuring you receive a product built to the highest standards of quality and innovation.

Order Now

Elevate your industrial automation processes with the superior performance of the Pepperl+Fuchs NJ2-12GM40-E2-V1 inductive proximity sensor. Currently in stock and available for prompt shipping, this essential component is ready to integrate seamlessly into your system and boost operational efficiency. Secure your advanced sensing solution today and ensure reliable, precise detection for your critical applications.
