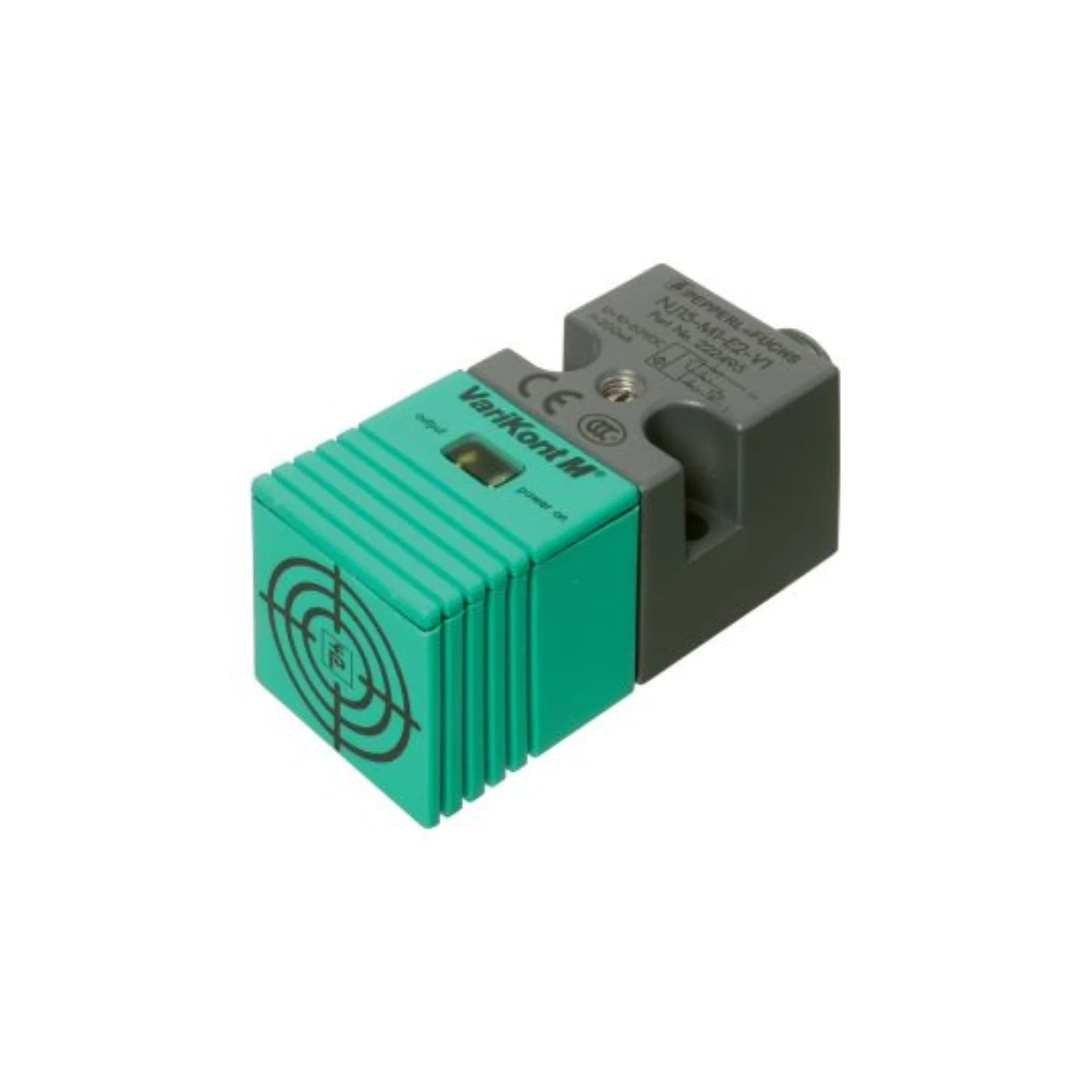

Pepperl+Fuchs NJ15-M1-E2-V1

Overview

The Pepperl+Fuchs NJ15-M1-E2-V1 is an exceptional M30 inductive proximity sensor, engineered to deliver unparalleled precision in non-contact detection of metallic objects within demanding industrial settings. This robust sensor stands out with its 15 mm non-flush sensing range, ensuring accurate object identification even in challenging environments. Equipped with a PNP normally open (NO) switching output, it offers seamless integration into a wide array of control systems. Furthermore, its IP67 protection rating guarantees reliable performance, providing superior resistance against dust and water ingress, making it an ideal solution for critical automation tasks.

Designed for durability and versatility, the NJ15-M1-E2-V1 boasts a sturdy construction and adaptable mounting options, enabling its use across diverse applications from manufacturing to logistics. Its high-performance capabilities ensure operational efficiency and enhanced safety, solidifying its position as a top-tier component for modern industrial automation.

Key Features

• Precise Sensing Range: 15 mm non-flush installation capability ensures accurate and consistent detection of metallic targets.
• Reliable Output Type: PNP switching output with a normally open (NO) function for straightforward and dependable integration into industrial control systems.
• Robust Industrial Design: Constructed with a PBT/metal housing and a PBT sensing face, offering exceptional durability and resilience against typical industrial wear and tear.
• Superior Protection: IP67-rated enclosure provides comprehensive protection against dust and water, ensuring long-term operational integrity in harsh conditions.
• Wide Voltage Compatibility: Operates efficiently across a broad voltage range of 10 to 60 V DC, allowing for flexible power supply options.
• Clear Visual Feedback: Integrated green LED for power status and a yellow LED for switching state, providing instant and unambiguous operational feedback.
• Optimized Compact Design: M30 threaded cylindrical housing, precisely dimensioned at 30 mm x 30 mm x 62 mm, facilitates easy and discreet integration into various machinery and systems.
• Secure Connection: Features an M12 x 1, 4-pin connector plug for a robust and secure electrical connection, minimizing downtime and ensuring stable performance.

Technical Specifications

• Model Number: NJ15-M1-E2-V1
• Switching Function: Normally open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 15 mm
• Installation: Non-flush
• Assured Operating Distance (sa): 0 to 12.15 mm
• Actual Operating Distance (sr): 13.5 to 16.5 mm, typically 15 mm
• Reduction Factors:
  • Aluminum (rAl): 0.39
  • Copper (rCu): 0.36
  • Stainless Steel 304 (r304): 0.73
• Operating Voltage (UB): 10 to 60 V DC
• Switching Frequency (f): 0 to 200 Hz
• Hysteresis (H): Typically 5%
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 2.5 V
• Operating Current (IL): 0 to 200 mA
• No-Load Supply Current (I0): ≤ 14 mA
• Time Delay Before Availability (tv): ≤ 50 ms
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Housing Material: PBT/metal
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Connection Type: M12 x 1, 4-pin connector plug
• Dimensions:
  • Height: 30 mm
  • Width: 30 mm
  • Length: 62 mm
• Compliance:
  • Standards: EN IEC 60947-5-2
  • Approvals: CCC approval certified by China Compulsory Certification (CCC)

Applications

• Material Handling Systems: Facilitates precise detection of metal objects on conveyor belts, optimizing sorting and accurate positioning processes.
• Automotive Manufacturing: Instrumental in ensuring the accurate and reliable detection of vehicle components during intricate assembly line operations, significantly enhancing quality control.
• Packaging Industry: Plays a crucial role in verifying the presence of metallic parts within packaging lines, thereby upholding stringent quality standards and reducing material waste.
• Machine Tools: Monitors the exact position of metal workpieces and tools, contributing to both operational safety and overall efficiency in machining processes.
• Heavy Equipment: Its robust design and superior protection rating make it perfectly suited for deployment in challenging outdoor and rugged industrial environments, ensuring reliable performance under extreme conditions.

Why Choose This Model?

The Pepperl+Fuchs NJ15-M1-E2-V1 inductive sensor stands as a testament to German engineering excellence, offering a compelling blend of reliability, precision, and durability. Its 15 mm non-flush sensing range provides consistent and accurate detection, minimizing errors in critical applications. The PNP normally open output simplifies integration, reducing complexities in design and implementation for system engineers and integrators.

Built with an IP67-rated PBT/metal housing, this sensor is designed to withstand the most aggressive industrial environments, from dust-laden factories to areas exposed to water jets. The clear LED indicators offer immediate operational status, aiding in quick troubleshooting and maintenance. Choosing the NJ15-M1-E2-V1 means investing in a solution that not only meets but exceeds the demands of modern industrial automation, ensuring long-term performance and peace of mind.
