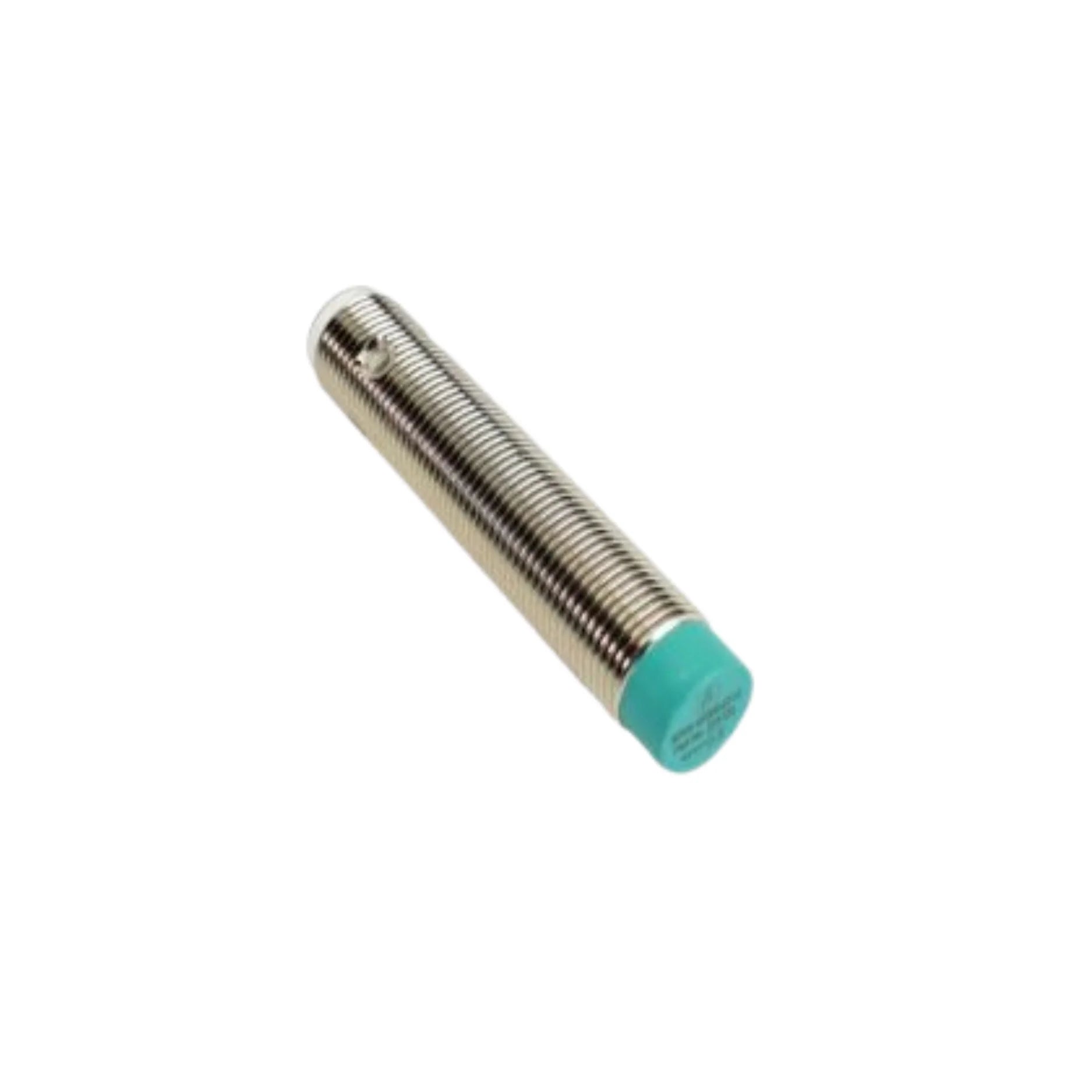

Pepperl+Fuchs NEN10-12GM50-E2-V1

Overview

Elevate your industrial automation with the Pepperl+Fuchs NEN10-12GM50-E2-V1 M12 Inductive Proximity Sensor. Engineered for unparalleled accuracy and reliability, this high-performance sensor is your ultimate solution for non-contact metallic object detection. Featuring an extended 10 mm sensing distance and a robust, non-flush mounting M12 threaded housing crafted from nickel-plated brass, the NEN10-12GM50-E2-V1 is specifically designed to excel in demanding industrial environments where precision and consistent detection are paramount. Its resilient construction and advanced sensing capabilities make it an indispensable component for optimizing efficiency and accuracy across diverse applications, ensuring seamless operations and enhanced productivity. Invest in Pepperl+Fuchs quality for dependable performance that drives industrial excellence.

Key Features

• Extended Sensing Distance: Reliable detection up to 10 mm, offering greater flexibility for application design.
• PNP, Normally Open (NO) Output: Standard configuration for versatile integration into existing control systems.
• Non-Flush Mounting: Optimized for installation where the sensor face is not embedded, ensuring consistent performance.
• Durable M12 Housing: Constructed from nickel-plated brass for superior resistance to corrosion and mechanical stress.
• Robust M12 x 1 Connector: Features a 4-pin M12 x 1 connector for secure and reliable electrical connections.
• Wide Operating Voltage: Compatible with 10 to 30 V DC power supplies, accommodating various industrial setups.
• High Switching Frequency: Supports rapid detection up to 600 Hz for dynamic and fast-paced applications.
• IP67 Protection: Fully protected against dust ingress and temporary immersion in water, ensuring longevity in harsh conditions.
• Broad Temperature Range: Operates reliably from -25°C to +85°C (-13°F to +185°F).
• Clear Status Indication: A highly visible yellow LED provides instant feedback on the switching status.

Technical Specifications

• Model Number: NEN10-12GM50-E2-V1
• Series: Standard Series
• Switching Function: Normally Open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 10 mm
• Assured Operating Distance (sa): 0 to 8.1 mm
• Reduction Factors: Aluminum (rAl): 0.45, Copper (rCu): 0.4, Stainless Steel (r304): 0.75, Brass (rBrass): 0.45
• Operating Voltage (UB): 10 to 30 V DC
• Switching Frequency (f): 0 to 600 Hz
• Hysteresis (H): 0.06 to 1 mm
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 2 V
• Operating Current (IL): 0 to 200 mA (above 70°C max. 150 mA)
• Off-State Current (Ir): ≤ 10 µA
• No-Load Supply Current (I0): ≤ 15 mA
• Time Delay Before Availability (tv): ≤ 50 ms
• Switching State Indicator: Yellow LED
• Connection Type: M12 x 1 connector, 4-pin
• Housing Material: Nickel-plated brass
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Dimensions: Length: 60 mm, Diameter: 12 mm
• Tightening Torque: ≤ 10 Nm
• Standards Compliance: EN IEC 60947-5-2
• Approvals: UL: cULus Listed, General Purpose; CCC: Not required for products rated ≤36 V

Applications

• Industrial Automation: Ensure precise detection of metallic components, optimizing conveyor systems and robotic operations.
• Robotics: Critical for accurate position sensing and dependable feedback in robotic arms and end-of-arm tooling.
• Packaging Machinery: Monitor the presence and exact position of metal parts, boosting efficiency and minimizing errors in packaging processes.
• Material Handling: Reliably detect metal objects on various conveyors, chutes, and sorting systems, preventing bottlenecks and ensuring smooth material flow.
• Automotive Manufacturing: Ideal for sensing metallic components during assembly, enhancing precision and safety in automotive production lines.

Why Choose This Model?

The Pepperl+Fuchs NEN10-12GM50-E2-V1 stands out as a superior choice for your industrial sensing needs due to its blend of advanced features and robust construction.

• Unmatched Sensing Range: The generous 10 mm sensing distance provides unparalleled flexibility in application design, allowing for greater tolerance in object placement and setup.
• Industrial-Grade Durability: Built with a nickel-plated brass housing, this sensor is designed to withstand the harshest industrial environments, ensuring prolonged operational life and minimal downtime.
• Space-Saving Design: Its compact M12 threaded form factor enables seamless integration into space-constrained machinery and control panels without compromising performance.
• High-Speed Reliability: With an impressive switching frequency of up to 600 Hz, the NEN10-12GM50-E2-V1 delivers consistent and precise detection even in the most dynamic and high-speed applications.
• Effortless Integration: The industry-standard M12 connector simplifies installation and ensures secure, reliable connections, reducing setup time and potential errors.
• Trusted Brand Quality: As a Pepperl+Fuchs product, you benefit from decades of expertise in industrial sensing technology, guaranteeing a product that meets rigorous quality and performance standards.

Choose the NEN10-12GM50-E2-V1 for a combination of precision, durability, and versatility that will significantly enhance the performance and reliability of your automated systems.

Order Now

Optimize your industrial processes today with the Pepperl+Fuchs NEN10-12GM50-E2-V1 M12 Inductive Proximity Sensor. This essential component for advanced automation is available for immediate shipping worldwide, ensuring prompt delivery to your location. Enhance your operational efficiency and reliability by securing this high-performance sensor today!
