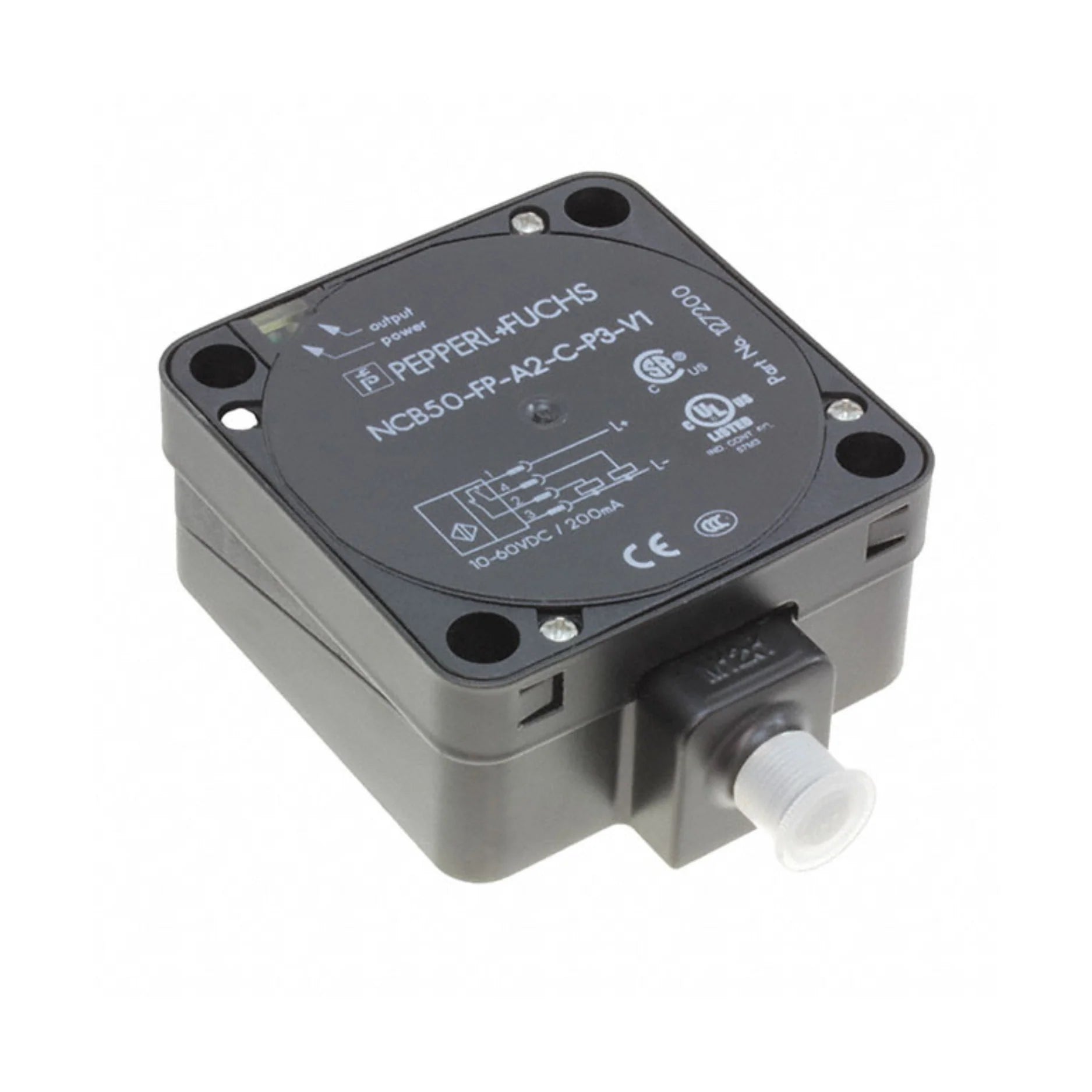

Pepperl+Fuchs NCB50-FP-A2-C-P3-V1

Overview

Elevate your industrial automation with the Pepperl+Fuchs NCB50-FP-A2-C-P3-V1, a cutting-edge inductive proximity sensor engineered for unparalleled precision and durability. This robust sensor is meticulously designed to provide reliable, non-contact detection of metallic targets across a myriad of challenging industrial environments. Boasting an impressive 50 mm sensing distance and complementary PNP outputs, it delivers exceptional performance where accuracy is paramount. Its flush-mount design ensures seamless integration into your existing machinery, while the IP68 protection rating guarantees unwavering operation even in the most demanding conditions, safeguarding against dust and water ingress. This sensor, part number 127200, is your ideal solution for enhancing efficiency and reliability in critical manufacturing and processing applications, providing critical data for informed decision-making.

Key Features

• Extended Sensing Distance: Achieve optimal detection with a generous 50 mm sensing range, allowing for greater flexibility in object positioning and conveyor system design.
• Versatile Output Type: Equipped with complementary PNP outputs (normally open and normally closed), offering enhanced control and signaling options for diverse automation tasks.
• Integrated Flush Mount: Designed for convenient flush installation, saving valuable space and providing a clean, protected integration into machinery.
• Durable Housing Material: Constructed from PBT/metal with a specialized PTFE-coated active surface, ensuring exceptional resistance to wear, chemicals, and mechanical stress.
• Superior Protection Rating: IP68-rated for robust environmental resistance, offering maximum protection against dust, dirt, and water immersion, extending the sensor's lifespan in harsh conditions.
• Wide Operating Voltage: Compatible with a broad operating voltage range of 10 to 60 V DC, facilitating easy integration into various control systems.
• High Switching Frequency: Supports a reliable switching frequency of up to 1 Hz, enabling rapid detection of fast-moving objects without compromise.
• Standard Connection Type: Features an industry-standard M12 x 1, 4-pin connector for quick, secure, and hassle-free connectivity.

Technical Specifications

• Model Number: NCB50-FP-A2-C-P3-V1
• Part Number: 127200
• Assured Operating Distance: 0 to 40.5 mm
• Reduction Factors:
  • Aluminum (rAl): 0.38
  • Copper (rCu): 0.35
  • Stainless Steel 304 (r304): 0.83
• Voltage Drop: ≤ 3 V
• Operating Current: 0 to 200 mA
• Off-State Current: ≤ 0.5 mA
• No-Load Supply Current: ≤ 20 mA
• Hysteresis: Typically 3%
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Switching State Indicator: Green LED for power, yellow LED for switching state for clear operational status.
• Ambient Temperature Range: -25°C to +70°C, ensuring consistent performance across diverse climates.
• Housing Dimensions: Height 40 mm; Width 84 mm; Length 84 mm
• Standards Compliance: EN IEC 60947-5-2
• Certifications: cULus Listed, CCC

Applications

• Conveyor Systems: Precisely detect the presence and position of items on conveyor belts, optimizing flow and preventing bottlenecks.
• Material Handling: Accurately monitor the positions of metallic components in chutes, hoppers, and robotic grippers, improving material flow and reducing errors.
• Packaging Machinery: Ensure the correct placement and orientation of metal parts within packaging lines, enhancing efficiency and product quality.
• Automated Assembly Lines: Verify the precise location of metallic components during intricate assembly processes, preventing defects and ensuring accurate builds.
• Industrial Gate and Door Monitoring: Ideal for sensing the open/closed status of metallic industrial gates and doors, contributing to safety and process control.
• Counting and Batching Applications: Reliably count metallic objects in high-speed processes for accurate batching and inventory management.

Why Choose This Model?

The Pepperl+Fuchs NCB50-FP-A2-C-P3-V1 sensor stands out as a superior choice for a multitude of reasons, making it an indispensable component in modern industrial automation. Its extended 50 mm sensing range provides unparalleled flexibility, allowing for detection in applications where other sensors fall short. This extended capability minimizes the need for precise positioning, simplifying installation and maintenance. The combination of its robust construction, featuring a durable PBT/metal housing and PTFE-coated active surface, alongside its impressive IP68 protection rating, guarantees exceptional longevity and reliable performance even in the harshest industrial environments. From dust-laden factories to areas prone to water exposure, this sensor is built to withstand it all. Furthermore, its adherence to international standards and certifications such as EN IEC 60947-5-2, cULus Listed, and CCC provides assurance of its quality, safety, and compatibility. Easy integration is a hallmark of this model, with its standard M12 x 1, 4-pin connector and wide operating voltage range, ensuring seamless communication with various control systems. Opt for the NCB50-FP-A2-C-P3-V1 for a cost-effective, high-performing solution that delivers consistent, accurate object detection, ultimately enhancing your operational efficiency and reducing downtime.

Order Now

Experience the superior performance and reliability of the Pepperl+Fuchs NCB50-FP-A2-C-P3-V1 (Part Number: 127200). This exceptional inductive proximity sensor is available for immediate worldwide shipping. Enhance your industrial processes and secure your automation future by placing your order today!
