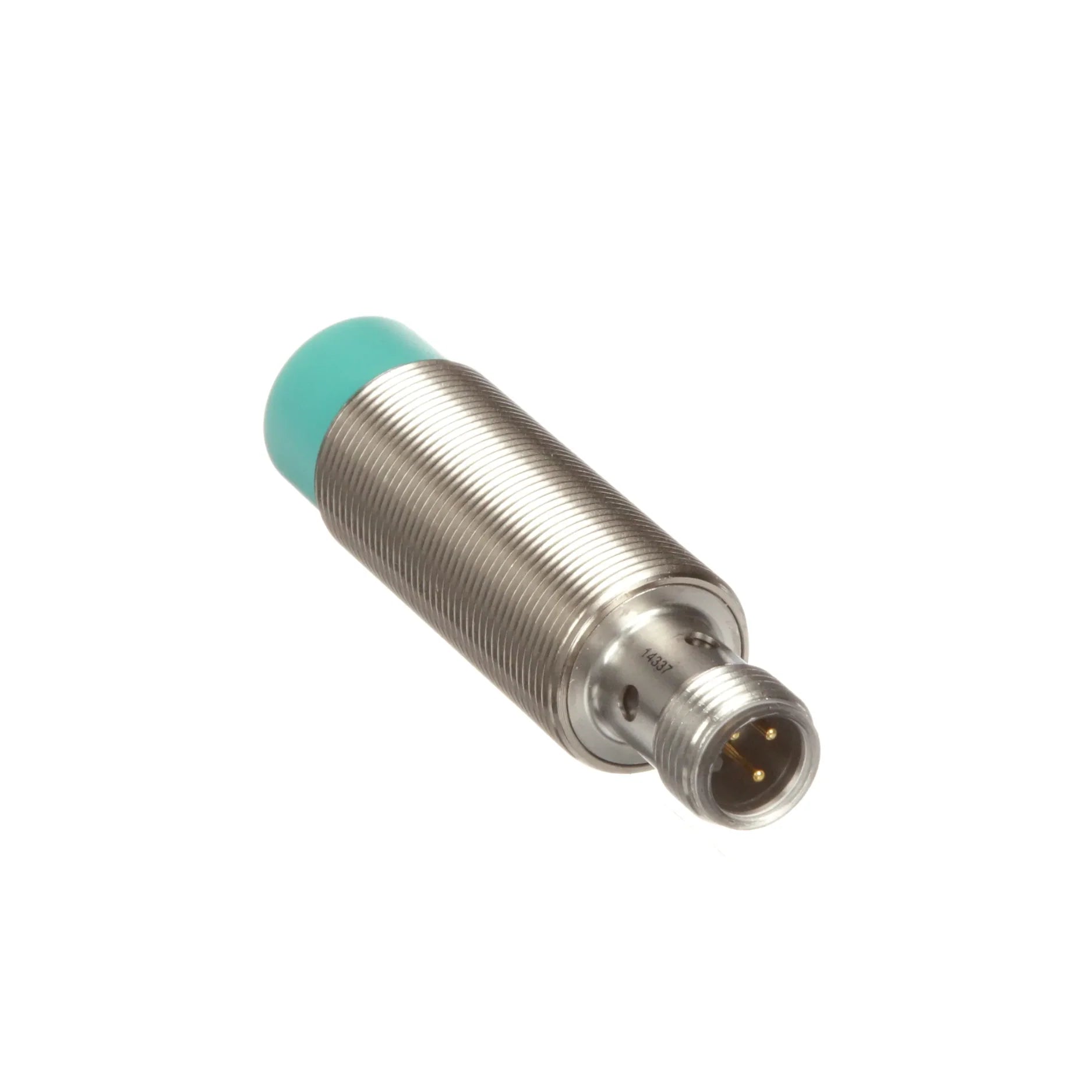

Pepperl+Fuchs NBN8-18GM50-E2-V1

Overview

The Pepperl+Fuchs NBN8-18GM50-E2-V1 is an advanced 8 mm non-flush inductive proximity sensor, engineered for superior performance in demanding industrial applications. This robust sensor, featuring a nickel-plated brass housing, excels at reliably detecting metallic objects without direct contact, making it ideal for environments where precision and durability are paramount. Its PNP normally open (NO) switching output is perfectly suited for seamless integration into 24 V DC control systems, providing versatile compatibility.

Designed for resilience, the NBN8-18GM50-E2-V1 boasts a wide operating voltage range, an extensive temperature tolerance from -40 to +85 °C, and comprehensive IP65, IP66, IP67, and IP68 protection ratings. These features ensure consistent, long-lasting operation even in the harshest conditions, safeguarding your industrial processes against interruptions and maximizing uptime.

Key Features

• Extended Sensing Distance: 8 mm for reliable detection in non-flush mounting scenarios.
• PNP Normally Open Output: Ensures seamless compatibility with standard industrial control systems.
• High-Speed Switching: Achieves an impressive switching frequency of up to 1,650 Hz for rapid detection.
• Robust M12 Connector: Features a secure M12 x 1, 4-pin plug for reliable connections.
• Durable Construction: Housed in white bronze-coated brass for exceptional longevity and resistance to corrosion.
• Superior Environmental Protection: IP65 / IP66 / IP67 / IP68 ratings ensure operation in wet, dusty, and challenging environments.
• Clear Status Indication: A yellow multihole LED provides immediate visual confirmation of the switching state.

Technical Specifications

• Model: NBN8-18GM50-E2-V1
• Part Number: 084197
• Installation Type: Non-flush
• Assured Operating Distance: 0 to 6.48 mm
• Reduction Factors: Aluminum: 0.44, Copper: 0.42, Stainless Steel 304: 0.76, Brass: 0.52
• Output Polarity: DC
• Operating Voltage: 5 to 36 V DC
• Switching Frequency: 0–1,650 Hz
• Hysteresis: Typically 5% of sensing distance
• Voltage Drop: ≤ 1 V
• Operating Current: 0 to 200 mA
• Off-State Current: ≤ 20 μA
• No-Load Supply Current: ≤ 10 mA
• Protection Features: Short-circuit protection (pulsing), Reverse polarity protection
• Startup Delay: ≤ 10 ms
• Mean Time to Dangerous Failure (MTTFd): 960 years
• Mission Time: 20 years
• Standards Compliance: EN IEC 60947-5-2
• Certifications: UL/cULus listed, DNVGL marine approval
• Operating Temperature Range: -40 to +85 °C
• Storage Temperature Range: -40 to +85 °C
• Degree of Protection: IP65 / IP66 / IP67 / IP68
• Connection Type: M12 × 1 connector, 4-pin
• Housing Material: Brass, white bronze coated
• Sensing Face Material: LCP (Liquid Crystal Polymer)
• Dimensions: Diameter: 18 mm, Length: 50 mm
• Included Accessories: 2 x hex nuts

Applications

• Factory Automation: Precisely detects the position and presence of machine components, optimizing automated processes.
• Material Handling: Provides reliable, non-contact detection of metallic parts on conveyor systems, enhancing efficiency and safety.
• Automotive Production: Serves as a durable and accurate sensor solution for robotic assembly lines and manufacturing processes.
• Packaging Equipment: Accurately detects metal presence or position during high-speed packaging operations, minimizing errors and maximizing throughput.
• General Industrial Control: Versatile for numerous applications requiring robust and accurate inductive sensing in challenging conditions.

Why Choose This Model?

The Pepperl+Fuchs NBN8-18GM50-E2-V1 stands out as a superior choice for industrial sensing due to its exceptional blend of performance and durability. Its impressive 8 mm non-flush sensing range offers greater flexibility in installation while maintaining high accuracy. With a rapid switching frequency of up to 1,650 Hz, this sensor is optimized for high-speed applications, ensuring timely and precise detection.

Built to withstand the most demanding environments, its rugged IP68-rated housing, coupled with a wide operating temperature range (-40 to +85 °C) and extensive voltage compatibility (5 to 36 V DC), guarantees reliable operation where other sensors might fail. Furthermore, the NBN8-18GM50-E2-V1 is designed for a remarkably long service life, evidenced by its 960-year MTTFd, providing peace of mind and reducing maintenance overhead. Choose this model for uncompromising quality, reliability, and performance in critical industrial operations.
