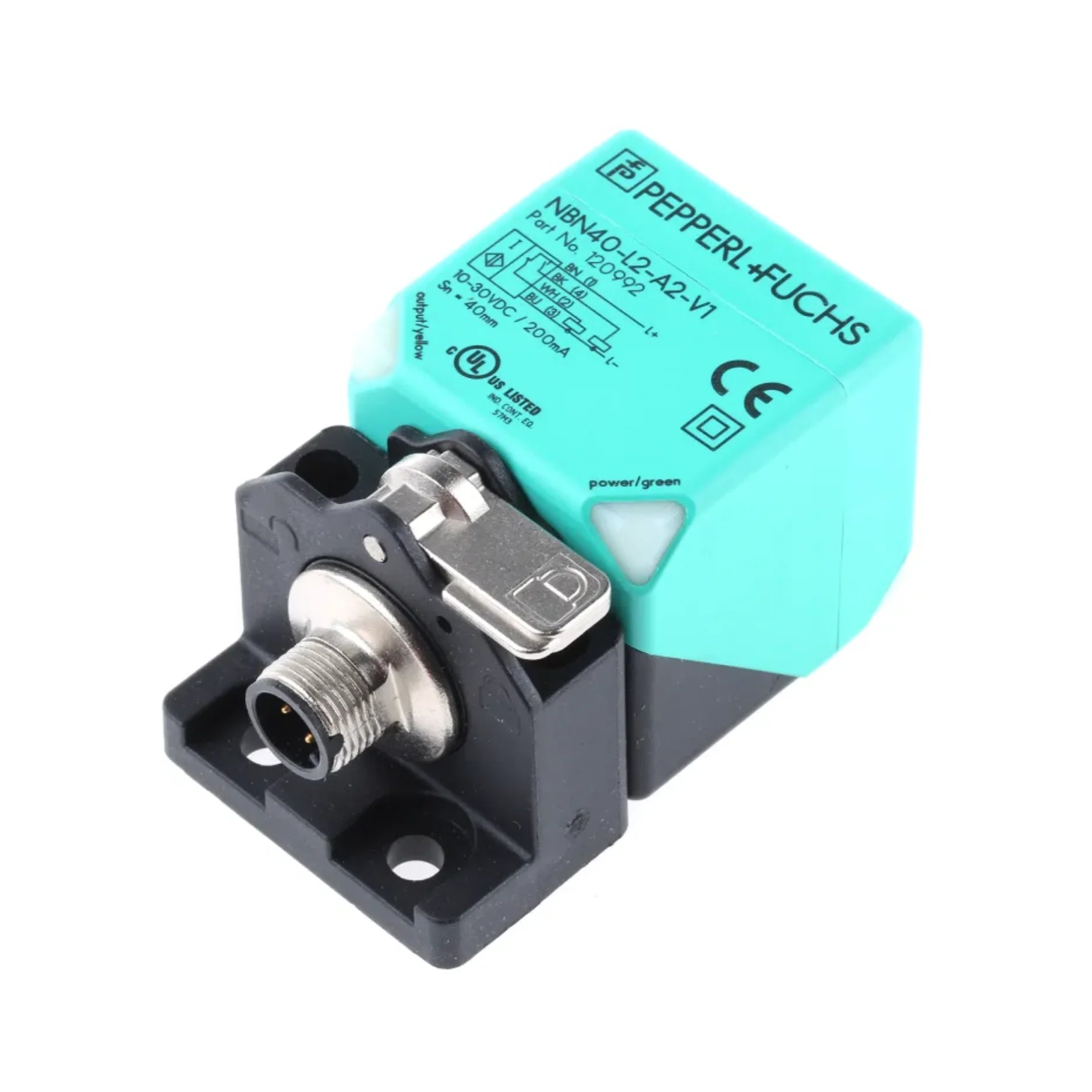

Pepperl+Fuchs NBN40-L2-A2-V1

Overview

Elevate your industrial automation processes with the Pepperl+Fuchs NBN40-L2-A2-V1, a high-performance 40 mm inductive proximity sensor meticulously engineered for the precise and reliable detection of metallic targets. This robust sensor is a cornerstone for applications demanding extended sensing ranges and unwavering operational integrity in even the most demanding industrial settings. Its impressive 40 mm sensing distance, coupled with non-flush installation capability, guarantees consistent and accurate performance, making it an indispensable component for optimizing your production lines.

Designed for seamless integration, the NBN40-L2-A2-V1 boasts a PNP complementary output configuration and a standard M12 connector, ensuring effortless compatibility with your existing control systems. Durability is paramount with this Pepperl+Fuchs offering; it operates flawlessly across a broad temperature spectrum and carries an exceptional IP68/IP69K protection rating. This makes it ideally suited for harsh environments prone to dust, moisture, and high-pressure washdown procedures. Further enhancing its adaptability, the sensor features a bidirectional and rotatable head for flexible mounting options, complemented by a 4-way LED indicator that provides 360° visibility for instant status monitoring, empowering operators with critical real-time feedback.

Key Features

• Extended Sensing Distance: A generous 40 mm sensing distance for reliable non-flush detection.
• Versatile Output: PNP complementary output (NO and NC) for flexible control integration.
• Wide Voltage Range: Operates efficiently within a 10 to 30 V DC supply voltage.
• High Switching Frequency: Responds swiftly with a switching frequency of up to 180 Hz.
• Extreme Temperature Resilience: Functions flawlessly from -25°C to +85°C (-13°F to +185°F).
• Superior Protection: IP68/IP69K rated, offering maximum protection against ingress of dust, water, and high-pressure jets.
• Durable Construction: Housing crafted from robust Polyamide (PA) for extended lifespan.
• Standardized Connection: Equipped with a convenient M12 x 1 connector plug, 4-pin.
• Clear Status Indication: Green LED for power-on status, yellow LED for switching state.
• Installation Flexibility: Bidirectional and rotatable sensor head with a quick mounting bracket for easy and precise positioning.
• Enhanced Visibility: 4-way LED indicator offers 360° visibility of operational status.

Technical Specifications

• Model Number: NBN40-L2-A2-V1
• Part Number: 120992
• Installation Type: Non-flush
• Assured Operating Distance: 0 to 32.4 mm
• Actual Operating Distance: 36 to 44 mm
• Reduction Factors:
  • Aluminum (rAl): 0.31
  • Copper (rCu): 0.3
  • Stainless Steel (r304): 0.74
  • Brass (rBrass): 0.39
• Hysteresis: Typically 5%
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop: ≤ 2 V
• Operating Current: 0 to 200 mA
• Off-State Current: 0 to 0.5 mA
• No-Load Supply Current: ≤ 20 mA
• Time Delay Before Availability: 80 ms
• Housing Dimensions: Height 40 mm, Width 40 mm, Length 67 mm
• Mounting: Quick mounting bracket
• Weight: Approximately 155 g

Applications

• Industrial Automation: Achieve unparalleled precision in detecting metallic components within sophisticated assembly lines and robotic work cells, optimizing production efficiency.
• Conveyor Systems: Ensure seamless material flow by accurately monitoring the presence, position, and movement of items across diverse production and logistics platforms.
• Packaging Machinery: Guarantee flawless operation and reduce errors by meticulously verifying the correct placement and movement of packaging materials at high speeds.
• Automotive Manufacturing: Facilitate critical processes in vehicle assembly by reliably detecting a wide array of metal parts, contributing to consistent quality and reduced downtime.
• Material Handling: Ideal for non-contact detection in harsh environments where traditional sensors may fail.

Why Choose This Model?

• Unmatched Sensing Range: The 40 mm sensing distance positions this sensor as a leading choice for applications requiring robust and reliable detection over greater distances, expanding your operational capabilities.
• Effortless Integration & Flexibility: Benefit from the bidirectional and rotatable sensor head combined with a quick mounting bracket, ensuring rapid, precise, and highly adaptable installation that saves valuable setup time.
• Superior Visibility & Diagnostics: The innovative 4-way LED indicator provides comprehensive 360° visibility of the sensor's status, allowing for quick diagnostics and proactive maintenance, minimizing potential downtime.
• Engineered for Extremes: With industry-leading IP68/IP69K protection ratings, this sensor is not just durable; it's designed to thrive in the most challenging and aggressive industrial environments, guaranteeing sustained performance.
• Trusted Performance: As a product from Pepperl+Fuchs, a global leader in industrial sensor technology, you are investing in a solution synonymous with quality, reliability, and precision engineering.

Order Now

Experience the superior performance and reliability of the Pepperl+Fuchs NBN40-L2-A2-V1. This indispensable inductive proximity sensor is available for immediate shipping worldwide. Enhance your automation systems today by adding this advanced sensor to your operational arsenal.
