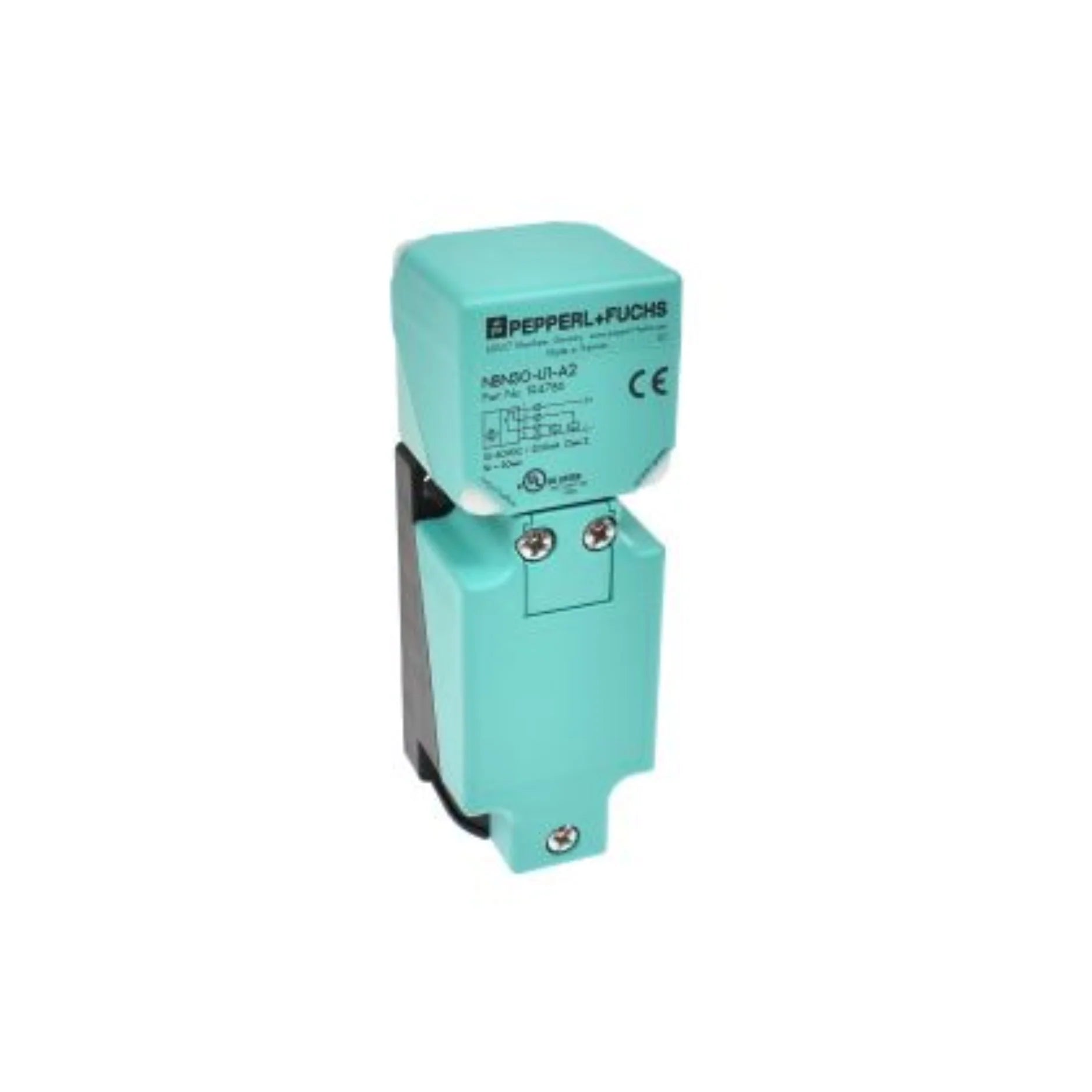

Pepperl+Fuchs NBN30-U1-A2

Overview

The Pepperl+Fuchs NBN30-U1-A2 Inductive Sensor (Part No. 194786) stands as a robust solution for precise and reliable metal detection across diverse industrial environments. Engineered for demanding applications, this high-range inductive proximity sensor boasts a substantial 30 mm sensing distance, making it ideal for scenarios requiring greater clearance. Its versatile 2-wire AC/DC output simplifies integration into existing control systems, offering universal compatibility and reducing wiring complexity. Housed within a rugged enclosure and fortified with an impressive IP67 protection rating, the NBN30-U1-A2 is designed to withstand harsh industrial conditions, ensuring consistent performance and longevity in automation and control systems worldwide.

Key Features

• Extended Sensing Distance: Achieve reliable detection up to 30 mm, thanks to its non-flush mounting design, perfect for applications requiring greater clearance.
• Universal 2-Wire AC/DC Operation: Experience simplified wiring and broad compatibility with a 2-wire output that functions across a wide voltage range of 20–250 V AC/DC.
• Robust IP67 Protection: Designed for resilience, this sensor is fully protected against dust ingress and the effects of temporary immersion in water, ensuring reliability in challenging environments.
• Integrated LED Indicator: Clearly monitor the sensor's operating status with a built-in LED, providing instant visual feedback on switching activity.
• Durable Construction: Housed in a cylindrical M30 plastic casing with a robust plastic sensing face, ensuring long-term performance and resistance to industrial wear and tear.
• High Switching Frequency: Offers responsive detection with a switching frequency of 25 Hz for AC and 500 Hz for DC applications.
• Non-Flush Installation: Maximizes sensing range by allowing the sensor to detect objects without needing to be fully embedded in metal.

Technical Specifications

• Model Number: NBN30-U1-A2
• Part Number: 194786
• Sensor Type: Inductive proximity sensor
• Installation Type: Non-flush
• Sensing Distance: 30 mm
• Output Type: 2-wire, Normally Open (NO)
• Operating Voltage: 20–250 V AC/DC
• Voltage Drop: ≤ 10 V
• Switching Current: 5–200 mA
• Leakage Current: ≤ 1.8 mA
• Switching Frequency: 25 Hz (AC) / 500 Hz (DC)
• Short-Circuit Protection: Yes
• Reverse Polarity Protection: Not applicable (for 2-wire AC/DC)
• Connection: Pre-wired cable (approx. 2 meters)
• Housing Type: Cylindrical (M30)
• Housing Material: Plastic
• Sensing Face Material: Plastic (PA or similar)
• Protection Rating: IP67
• Operating Temperature: -25°C to +70°C
• Weight: Approx. 150 g
• LED Indicator: Yellow LED for switching status

Applications

• Heavy Industrial Equipment: Essential for accurate metal detection on large machinery, ensuring operational safety and efficiency in challenging environments.
• Material Handling Systems: Optimally monitors the presence and positioning of containers, pallets, or metal parts on conveyor belts and automated sorting lines.
• Automated Assembly Lines: Provides reliable large clearance sensing for component placement verification and process control in sophisticated automation setups.
• Machine Tooling & OEM Integration: Built to withstand the rigors of machine tools, offering dependable performance as a crucial component for original equipment manufacturers.
• Control Panel Integration (AC/DC): Its flexible 2-wire AC/DC design simplifies direct integration into a wide array of control panels, minimizing installation time and costs.
• Packaging and Logistics: Ensures precise object detection for efficient packaging processes and accurate inventory management in logistics operations.

Why Choose This Model?

• ✅ Exceptional 30 mm Sensing Range: Detect objects at greater distances, enhancing flexibility in sensor placement and offering solutions for applications with larger clearances.
• ✅ Simplified 2-Wire AC/DC Operation: Reduces wiring complexity and costs, making installation quicker and more efficient across a broad spectrum of industrial systems.
• ✅ Non-Flush Installation Advantage: Maximizes the sensor's range capabilities, providing superior detection compared to flush-mounted alternatives.
• ✅ Unwavering IP67 Durability: Guarantees reliable operation even in the most demanding industrial settings, resistant to dust, dirt, and temporary water immersion.
• ✅ Versatile Application Compatibility: A truly universal solution for both upgrading existing systems and integrating into new, cutting-edge automation projects.
• ✅ Trusted Pepperl+Fuchs Quality: Leverage the renowned reliability and precision that define the Pepperl+Fuchs brand, ensuring peace of mind and long-term performance.

Order Now

The Pepperl+Fuchs NBN30-U1-A2 Inductive Sensor (Part No. 194786) is in stock and ready for immediate dispatch. Enhance your industrial automation with a sensor built for precision, durability, and universal compatibility. We ship worldwide, bringing critical components directly to your operation. Secure your NBN30-U1-A2 today and experience the difference of a high-performance inductive sensor.
