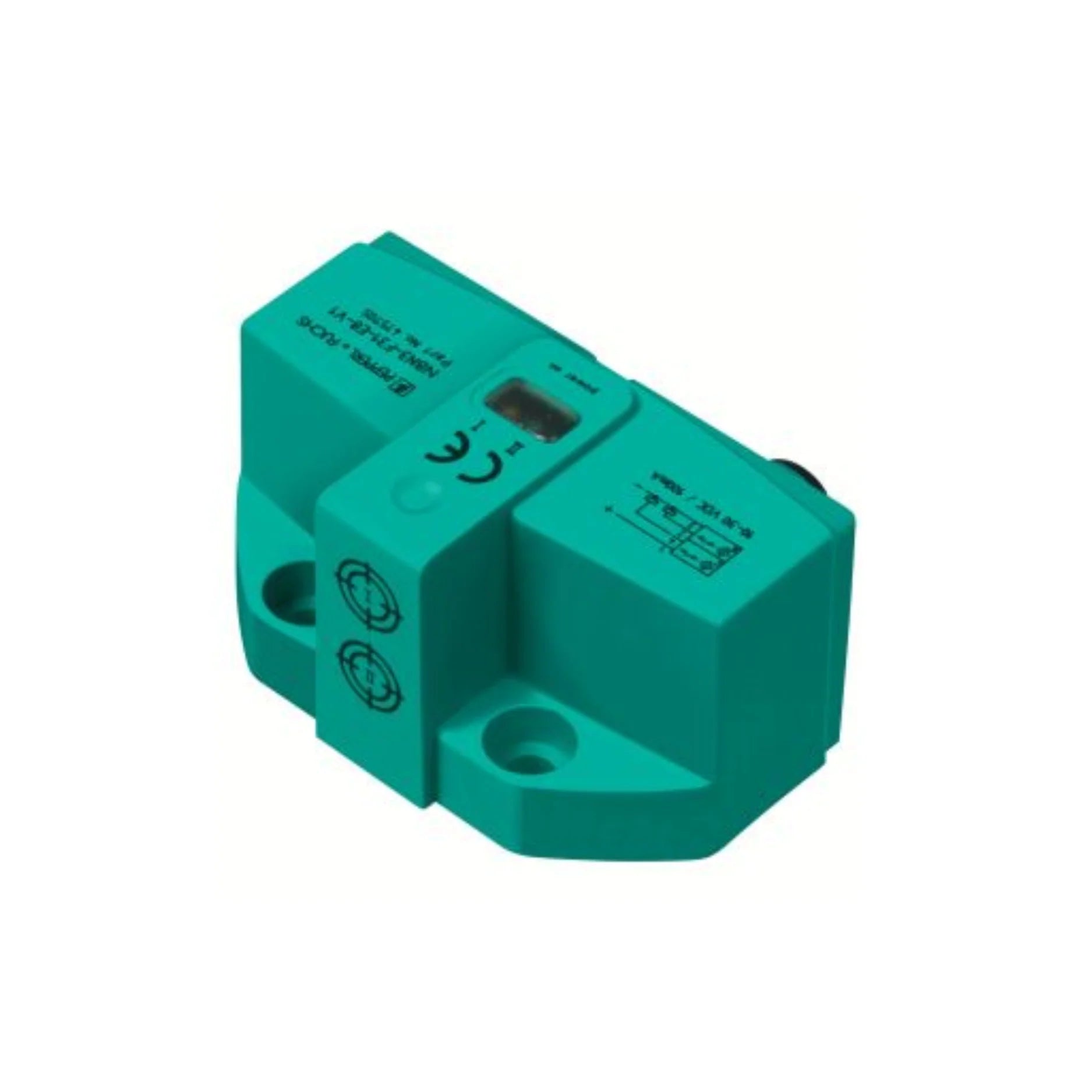

Pepperl+Fuchs NBN3-F31-E8-V1

Overview

The Pepperl+Fuchs NBN3-F31-E8-V1 Inductive Sensor is an advanced, high-precision solution engineered for demanding industrial automation applications. This compact yet robust inductive proximity sensor excels at reliably detecting metallic objects, making it an indispensable component for optimizing various manufacturing and assembly processes. With its 3 mm flush sensing range and dual PNP normally open (NO) outputs, it provides exceptional versatility and integration capabilities. Constructed with durability in mind, the NBN3-F31-E8-V1 boasts a rugged housing and a high ingress protection rating, ensuring consistent and reliable performance even in the most challenging operational environments.

Key Features

• Precise 3 mm Flush Sensing: Guarantees accurate and consistent detection of metallic targets, critical for meticulous positioning and control.
• Dual PNP Normally Open (NO) Outputs: Offers enhanced flexibility for integration into complex control systems, enabling diverse application scenarios.
• Ultra-Compact Design: Measuring just 65 mm (width) x 33.5 mm (height) x 36 mm (length), it is perfectly suited for installations where space is a critical constraint.
• Robust Industrial-Grade Construction: Features a durable PBT housing complemented by a metal connector housing, ensuring exceptional resistance to wear, impact, and fatigue common in industrial settings.
• Superior IP67 Protection: Provides comprehensive protection against dust ingress and immersion in water (up to 1 meter for 30 minutes), safeguarding operations in harsh conditions.
• Clear LED Status Indicators: Equipped with a green LED for power status and a yellow LED to indicate switching state, facilitating quick and intuitive operational monitoring.
• Wide Voltage Compatibility: Operates efficiently across a 10 to 30 V DC power supply range, ensuring compatibility with standard industrial power systems globally.

Technical Specifications

• Model Number: NBN3-F31-E8-V1
• Switching Function: 2 x normally open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 3 mm
• Installation: Flush mountable
• Operating Voltage (UB): 10 to 30 V DC
• Switching Frequency (f): 0 to 500 Hz
• Hysteresis (H): Typically 5%
• Reverse Polarity Protection: Yes, across all connections
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 3 V
• Operating Current (IL): 0 to 100 mA
• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C
• No-Load Supply Current (I0): ≤ 25 mA
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Housing Material: PBT (Polybutylene Terephthalate)
• Connector Housing: Metal
• Degree of Protection: IP67
• Connection Type: 4-pin, M12 x 1 connector
• Dimensions (HxWxL): 33.5 mm x 65 mm x 36 mm
• Compliance Standards: EN IEC 60947-5-2
• Approvals: cULus Listed for General Purpose

Applications

• Material Handling Systems: Facilitates precise detection of various metal objects on conveyor belts, enabling efficient sorting, counting, and accurate positioning. This is crucial for streamlining logistics and internal transport processes.
• Automotive Manufacturing: Ensures exacting detection of vehicle components throughout the assembly line, contributing to high-quality production and error prevention in critical stages.
• Packaging Industry: Verifies the presence and correct placement of metallic parts within packaging lines, upholding stringent quality control standards and minimizing product defects.
• Machine Tools Operations: Accurately monitors the position of metal workpieces and cutting tools, significantly enhancing operational safety, precision, and overall machining efficiency.
• Robotics and Automation: Provides reliable feedback on metallic part positioning to advanced robotic systems, essential for precise gripping, manipulation, and intricate automated assembly tasks.

Why Choose This Model?

The Pepperl+Fuchs NBN3-F31-E8-V1 stands out as a superior choice for industrial sensing needs due to its unique combination of features and benefits. Its dual PNP normally open outputs offer unparalleled flexibility, allowing for seamless integration into diverse control architectures and simplifying complex automation tasks. The sensor's compact footprint combined with its robust PBT and metal construction guarantees exceptional durability and a long operational lifespan, even in the most demanding industrial environments. Furthermore, the IP67 protection rating ensures resilience against contaminants, reducing maintenance and downtime. When precision, reliability, and versatility are paramount, the NBN3-F31-E8-V1 delivers consistent, high-performance object detection, making it an intelligent investment for optimizing your industrial processes.
