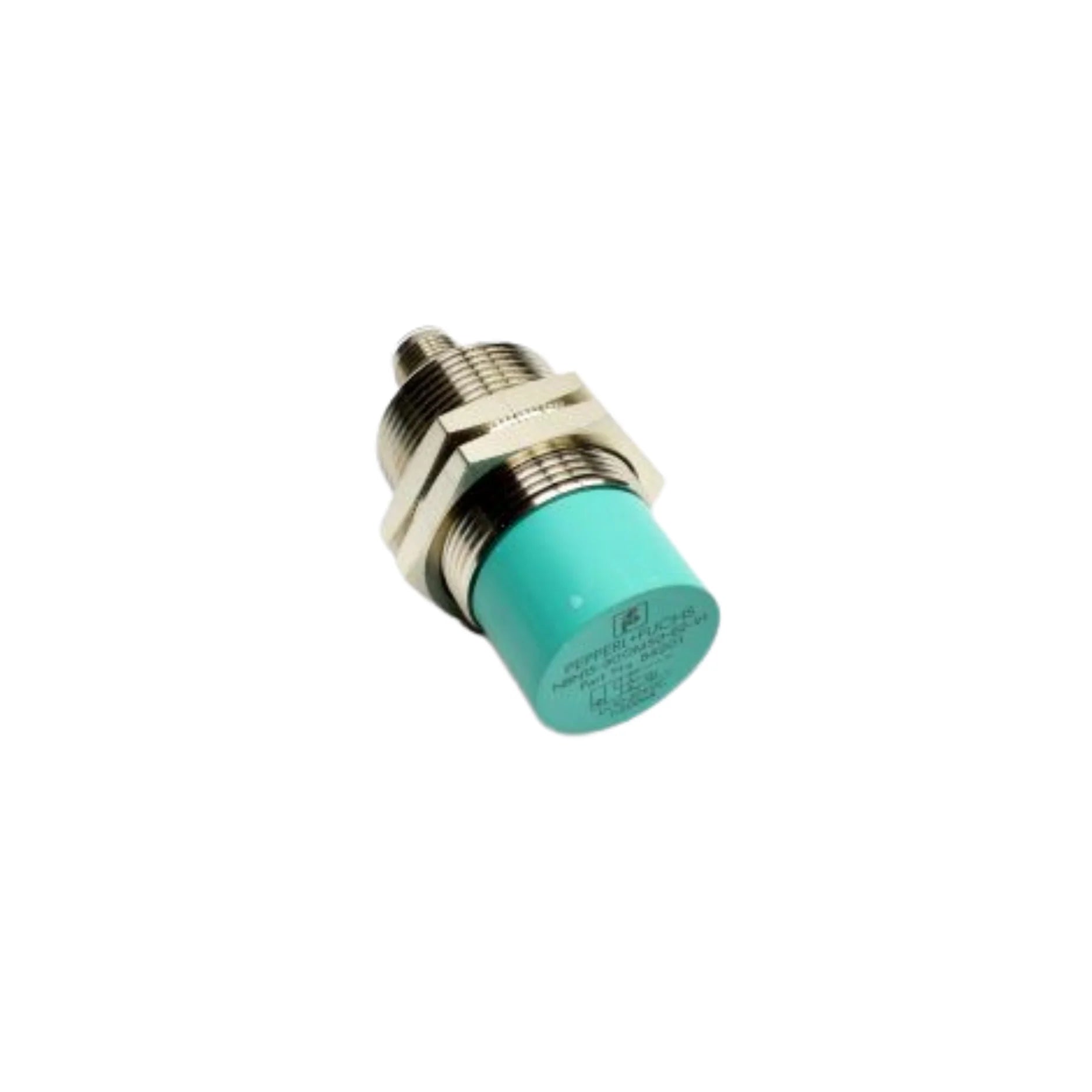

Pepperl+Fuchs NBN15-30GM50-E2-V1

Overview

Elevate your industrial automation processes with the robust and highly reliable Pepperl+Fuchs NBN15-30GM50-E2-V1 inductive sensor. Engineered for precision and durability, this premium inductive proximity sensor (Part No. 084201) comes housed in a sturdy M30 threaded body, making it an ideal choice for demanding environments. Boasting a generous 15 mm non-flush sensing distance, it excels at detecting metallic objects with exceptional accuracy. Its PNP normally open (NO) output ensures seamless integration into a wide array of control systems, while its impressive IP67 protection rating guarantees reliable operation in challenging conditions prone to dust and moisture. Trust the NBN15-30GM50-E2-V1 to deliver consistent performance, reducing downtime and optimizing your production lines.

Key Features

• Extended Sensing Distance: A formidable 15 mm non-flush sensing capability allows for reliable detection of targets even at greater distances.
• PNP Normally Open (NO) Output: Provides a straightforward and widely compatible electrical output, simplifying wiring and integration into existing systems.
• Broad Operating Voltage: Operates efficiently within a 10–30 VDC range, offering flexibility for various power supplies.
• Standard M12 Connection: Features a 4-pin M12 connector for fast, secure, and standardized electrical hook-ups.
• Durable Housing Material: Constructed from nickel-plated brass, ensuring maximum resistance to corrosion and mechanical stress, extending sensor lifespan.
• Superior Protection Rating: IP67-rated enclosure safeguards against ingress of dust and water, making it suitable for harsh industrial settings.
• High Switching Frequency: With a switching frequency of up to 200 Hz, it accurately detects rapidly moving objects, ensuring precise control.
• Wide Temperature Tolerance: Performs consistently across a broad temperature range of -25°C to +70°C, accommodating diverse operational climates.
• Integrated LED Indicator: A clear LED provides instant visual confirmation of the switching status, aiding in easy setup and troubleshooting.
• Robust Electrical Protection: Built-in short-circuit and reverse polarity protection enhance reliability and prevent damage to the sensor and connected equipment.

Technical Specifications

• Model Number: NBN15-30GM50-E2-V1
• Part Number: 084201
• Sensor Type: Inductive proximity sensor
• Installation Type: Non-flush
• Sensing Distance: 15 mm
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10–30 VDC
• Voltage Drop: ≤ 2.5 V
• Max Load Current: 200 mA
• Current Consumption: ≤ 20 mA (no load)
• Connection Type: M12 x 1, 4-pin male connector
• Housing Material: Nickel-plated brass
• Sensing Face Material: Plastic (PA)
• Protection Rating: IP67
• Switching Frequency: Up to 200 Hz
• Temperature Range: -25°C to +70°C
• Dimensions: M30 x 50 mm
• Weight: Approximately 100 g
• Indicator: Switching status LED
• Protection: Short-circuit and reverse polarity protection

Applications

The Pepperl+Fuchs NBN15-30GM50-E2-V1 inductive sensor is a versatile component suitable for a broad spectrum of industrial applications, ensuring enhanced efficiency and safety:

• Industrial Automation: Critical for precise metal part detection, positioning, and counting on high-speed production and assembly lines.
• Packaging Systems: Reliably detects the presence, position, and alignment of packages and components, optimizing automated packaging workflows.
• Machine Tools: Offers robust and accurate performance in challenging metalworking environments, sensing tool and workpiece positions despite swarf and coolants.
• Material Handling & Logistics: Effectively detects objects on conveyor systems, chutes, and sorting machines, facilitating automated material flow.
• Robotics & OEM Equipment: Seamlessly integrates into robotic arms and custom-built original equipment, providing essential sensing capabilities for precise movement and control.

Why Choose This Model?

Selecting the Pepperl+Fuchs NBN15-30GM50-E2-V1 means investing in unparalleled reliability and performance for your sensing needs:

• Optimal Sensing Range: The impressive 15 mm sensing distance, housed within a standard M30 body, offers superior flexibility and minimizes the risk of mechanical damage compared to shorter-range alternatives.
• Effortless Integration: Its reliable PNP NO output ensures simple and quick electrical integration into virtually any control system, saving valuable setup time.
• Unmatched Durability: With a rugged IP67 rating, this sensor is built to withstand exposure to water, dust, and other contaminants, guaranteeing extended operational life in the most demanding industrial settings.
• Rapid Installation: The industry-standard M12 4-pin quick-connect interface significantly speeds up installation and maintenance processes, reducing labor costs and downtime.
• Versatile Performance: An ideal solution for a multitude of general-purpose industrial applications, providing consistent and accurate detection across various sectors.

Order Now

Experience the superior quality and performance of the Pepperl+Fuchs NBN15-30GM50-E2-V1 inductive sensor. This indispensable component for modern automation is currently available and ready to ship worldwide. Secure yours today to enhance the precision and efficiency of your operations.
