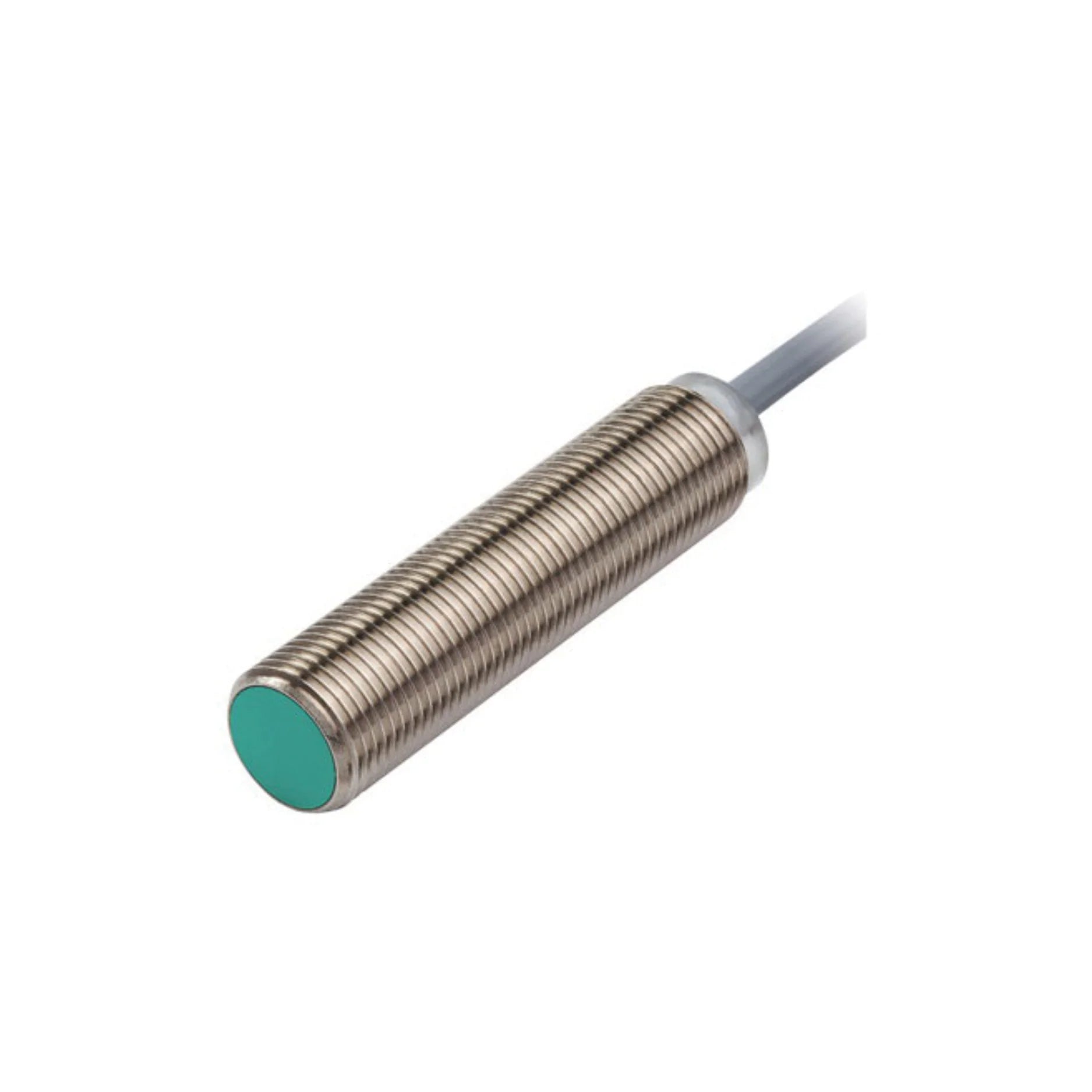

Pepperl+Fuchs NBB4-12GM50-E0-V1

Overview

The Pepperl+Fuchs NBB4-12GM50-E0-V1 M12 Inductive Sensor is engineered for unparalleled precision and reliability in demanding industrial environments. This high-performance proximity sensor offers a superior solution for accurate, non-contact detection of metallic objects. With its 4 mm flush sensing range and NPN normally open (NO) switching output, it seamlessly integrates into a wide array of automation systems, ensuring efficient operation. Built to withstand extreme conditions, the NBB4-12GM50-E0-V1 boasts an extended operating temperature range of -40°C to +85°C and an exceptional IP68 ingress protection rating, making it a cornerstone for robust industrial applications.

Key Features

• Optimized Sensing Range: Features a 4 mm flush installation, facilitating precise detection of diverse metallic targets in confined spaces or flush-mounted applications.
• Reliable NPN Output: Equipped with an NPN switching output and a normally open (NO) function, ensuring straightforward and dependable integration with existing control systems.
• Extreme Temperature Resilience: Operates flawlessly across a broad temperature spectrum, from -40°C to +85°C, guaranteeing consistent performance in even the harshest environmental conditions.
• Durable Construction: Housed in white bronze-coated brass with a robust PBT sensing face (green), offering exceptional resistance to wear, corrosion, and the rigors of industrial use.
• Superior Environmental Protection: Achieves an impressive IP65/IP66/IP67/IP68 rating, providing comprehensive defense against dust, moisture, and temporary submersion, ensuring longevity and reliability.
• Compact and Adaptable Design: The M12 threaded cylindrical housing, with a length of 64.5 mm, allows for easy and flexible integration into various machinery and system architectures.
• Efficient Connectivity: Features a standard M12 x 1 connector plug, simplifying installation and ensuring secure, reliable electrical connections.
• Clear Status Indication: A multihole yellow LED provides instant and unambiguous visual feedback on the switching state, facilitating quick diagnostics and operational monitoring.

Technical Specifications

• Model Number: NBB4-12GM50-E0-V1
• Switching Function: Normally open (NO)
• Output Type: NPN
• Rated Operating Distance (sn): 4 mm
• Installation: Flush
• Operating Voltage (UB): 6 to 36 V DC
• Switching Frequency (f): 0 to 2550 Hz
• Hysteresis (H): Typically 5% of sensing distance
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 1 V
• Operating Current (IL): 0 to 200 mA
• Off-State Current (Ir): Maximum 150 µA
• No-Load Supply Current (I0): ≤ 10 mA
• Time Delay Before Availability (tv): ≤ 10 ms
• Reduction Factors:
  • Aluminum (rAl): 0.4
  • Copper (rCu): 0.35
  • Stainless Steel 304 (r304): 0.79
  • Brass (rBrass): 0.49
• Ambient Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Housing Material: White bronze-coated brass
• Sensing Face Material: PBT, green
• Degree of Protection: IP65/IP66/IP67/IP68
• Connection Type: M12 x 1 connector plug, 3-pin
• Dimensions:
  • Length: 64.5 mm
  • Diameter: 12 mm
• Weight: Approximately 29 g
• Compliance:
  • Standards: EN IEC 60947-5-2
  • Approvals: cULus Listed for General Purpose, Class 2 Power Source; DNVGL Marine Approval

Applications

The versatility and robustness of the Pepperl+Fuchs NBB4-12GM50-E0-V1 make it an ideal choice for a diverse range of industrial automation applications, including:

• Material Handling Systems: Ensures accurate detection of metal objects on conveyor belts, facilitating precise sorting, positioning, and inventory management.
• Automotive Manufacturing: Critical for precise detection of vehicle components during various stages of assembly, contributing to high-quality production and automated processes.
• Packaging Industry: Verifies the presence and correct placement of metallic parts within packaging lines, reducing errors and optimizing throughput.
• Machine Tooling: Provides reliable feedback for tool presence sensing and position control in CNC machinery and other automated manufacturing equipment.
• Robotics: Integral for robotic arm positioning and object detection, enhancing the accuracy and safety of automated tasks.
• General Industrial Automation: A go-to solution for any application requiring dependable, non-contact detection in challenging operational environments.

Why Choose This Model?

The Pepperl+Fuchs NBB4-12GM50-E0-V1 stands out in the crowded field of industrial sensors due to its exceptional blend of precision, durability, and operational flexibility. Its 4 mm flush sensing capability, combined with a robust NPN NO output, delivers consistent and accurate performance where it matters most. The sensor's ability to operate in extreme temperatures (-40°C to +85°C) and its market-leading IP68 protection rating mean it will perform reliably even in the harshest industrial settings, minimizing downtime and maintenance costs. For engineers and system integrators seeking a high-quality, long-lasting inductive sensor that offers both superior performance and easy integration, the NBB4-12GM50-E0-V1 is an indispensable component. Pepperl+Fuchs’ reputation for innovation and quality further assures that this sensor represents a smart, future-proof investment for any critical automation application.
