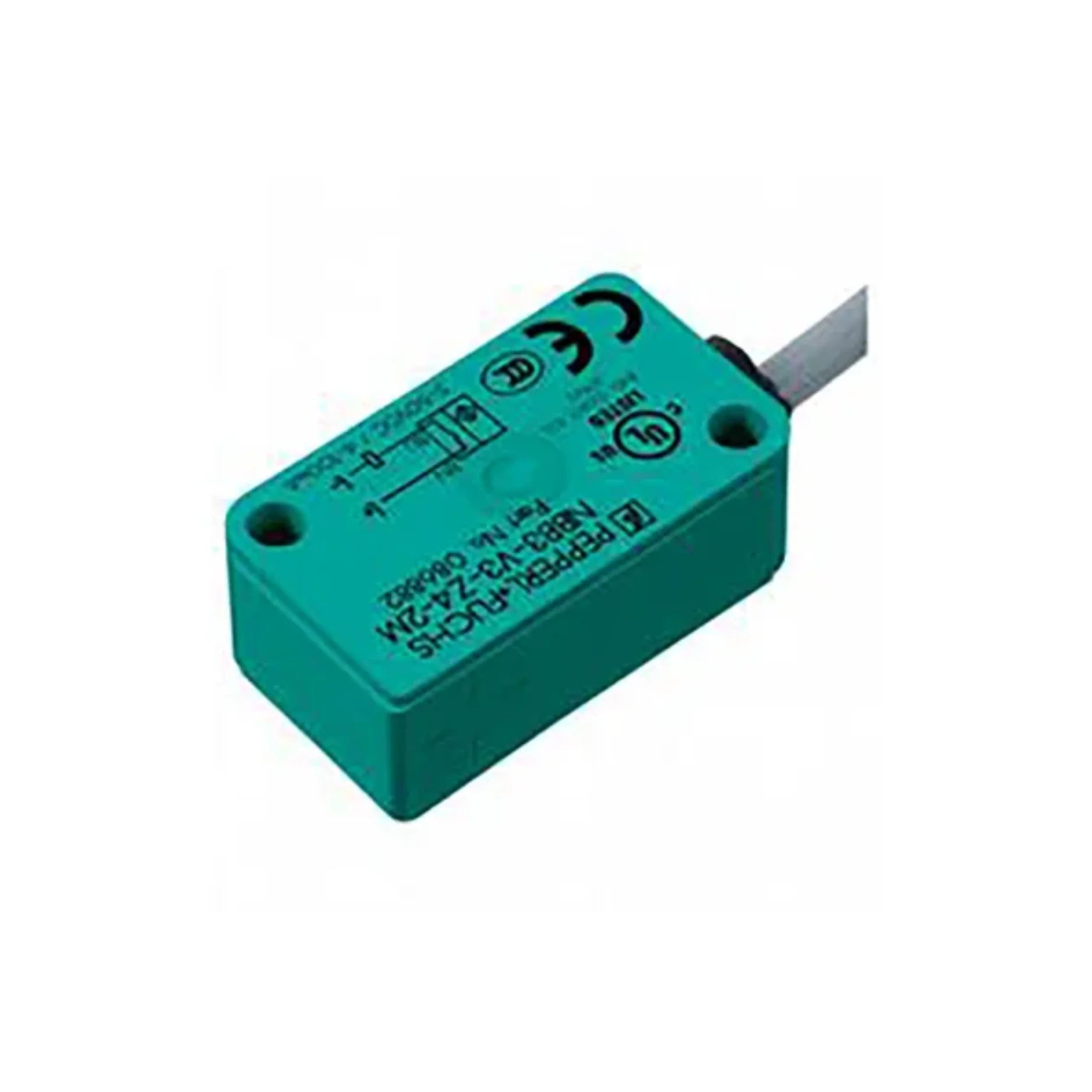

Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor, 3 mm flush mount, 2-wire DC, IP67-rated, compact design, Part No. 301158.

Pepperl+Fuchs NBB3-V3-Z4

$79.00
$79.00
Skip to product information
Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor, 3 mm flush mount, 2-wire DC, IP67-rated, compact design, Part No. 301158.
  • Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor, 3 mm flush mount, 2-wire DC, IP67-rated, compact design, Part No. 301158.
  • Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor, 3 mm flush mount, 2-wire DC, IP67-rated, compact design, Part No. 301158.
Pepperl+Fuchs NBB3-V3-Z4

Pepperl+Fuchs NBB3-V3-Z4

$79.00
$79.00

Overview

The Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor is engineered to deliver unparalleled precision and reliability in diverse industrial automation settings. This compact powerhouse excels at the non-contact detection of metallic objects, offering a seamless solution for myriad applications. Its 3 mm flush mount sensing capability ensures accurate and consistent performance, even in confined spaces.

Designed for durability, the NBB3-V3-Z4 boasts a robust construction with an IP67 protection rating, making it impervious to dust and water ingress. This resilience guarantees stable operation in challenging environmental conditions, reducing downtime and maintenance costs. The 2-wire DC output simplifies integration into existing systems, providing a versatile and efficient sensing solution.

Key Features

  • Sensing Distance: 3 mm (flush mount) for precise detection
  • Output Type: 2-wire DC, normally open (NO) for straightforward connectivity
  • Operating Voltage: Wide range of 5–60 V DC for flexible power integration
  • Switching Frequency: High-speed detection up to 2,000 Hz, ideal for rapid processes
  • Housing Material: Durable PBT (Polybutylene Terephthalate) for extreme resilience
  • Sensing Face Material: PBT, ensuring consistent performance and longevity
  • Protection Class: IP67-rated, providing superior protection against dust and water
  • Operating Temperature Range: -25 °C to +85 °C (-13 °F to +185 °F), suitable for harsh climates
  • Cable Length: 130 mm for versatile installation options
  • Cable Diameter: Robust 3 mm ± 0.2 mm for industrial applications
  • LED Indicator: Clear yellow LED for immediate switching state visualization
  • Dimensions: Compact 27.8 mm (W) × 10.2 mm (H) × 16 mm (L) for space-saving integration
  • Weight: Lightweight at approximately 7.5 g, minimizing load impact
  • Certifications: cULus Listed, CCC Approved, guaranteeing global compliance
  • Compliance: Meets EN IEC 60947-5-2 standards for industrial control equipment

Technical Specifications

  • Assured Operating Distance (sa): Optimal range of 0–2.4 mm
  • Actual Operating Distance (sr): Typical range of 2.7–3.3 mm for reliable sensing
  • Reduction Factors:
    • Aluminum (rAl): 0.45
    • Copper (rCu): 0.35
    • Stainless Steel 304 (r304): 0.8
    • Brass: 0.5
  • Hysteresis: Typically 0.2 mm, ensuring stable switching behavior
  • Voltage Drop (Ud): Minimal ≤ 4 V for efficient power utilization
  • Operating Current (IL): Flexible 4–100 mA
  • Minimum Operating Current (Im): 4 mA
  • Off-State Current (Ir): Efficient 0.4–0.55 mA (typical 0.46 mA)
  • Time Delay Before Availability (tv): Rapid ≤ 1 ms startup
  • Reverse Polarity Protection: Yes, for enhanced safety and longevity
  • Short-Circuit Protection: No
  • Inductive Overvoltage Protection: Yes, safeguarding against power surges
  • Tightening Torque (Fastening Screws): Precisely 0.4 Nm
  • Mean Time to Dangerous Failure (MTTFd): Impressive 1,552 years, highlighting extreme durability
  • Mission Time (TM): 20 years
  • Diagnostic Coverage (DC): 0%

Applications

  • Position Detection in Automation Systems: Crucial for accurate control in automated machinery.
  • Metal Object Sensing in Conveyors: Ensures efficient material handling and sorting processes.
  • Industrial Machinery Monitoring: Provides vital feedback for operational safety and performance.
  • Robotics and Assembly Lines: Enhances precision and speed in robotic movements and assembly tasks.
  • Packaging Equipment: Guarantees reliable detection for optimized packaging workflows.

Why Choose This Model?

The Pepperl+Fuchs NBB3-V3-Z4 stands out in the crowded market of inductive proximity sensors due to its superior design and performance attributes. Its compact design is a major advantage, making it the ideal choice for applications where space is at a premium, without compromising on functionality.

With a high switching frequency of up to 2,000 Hz, this sensor is perfectly suited for fast-moving processes, ensuring that no object goes undetected, thereby maintaining the highest levels of efficiency and throughput in your operations.

The robust construction, featuring a PBT housing and an IP67 rating, provides exceptional durability and resistance to the most demanding industrial environments. This ruggedness translates into a longer operational life and reduced need for replacements, offering significant long-term savings.

Installation is made effortless with its flush mount design, simplifying setup and integration into your existing machinery. This user-friendly feature minimizes installation time and potential errors, getting your systems up and running faster.

Ultimately, the NBB3-V3-Z4 delivers reliable performance, providing consistent and accurate detection with minimal maintenance requirements. This unwavering dependability ensures continuous operation, critical for maintaining productivity and avoiding costly interruptions in industrial automation.

Order Now

Elevate your industrial automation processes with the Pepperl+Fuchs NBB3-V3-Z4 inductive proximity sensor. Experience precision, durability, and seamless integration. Contact us today to place your order and optimize your operations with this high-performance solution.
