Pepperl+Fuchs NBB20-U1-Z2

Overview

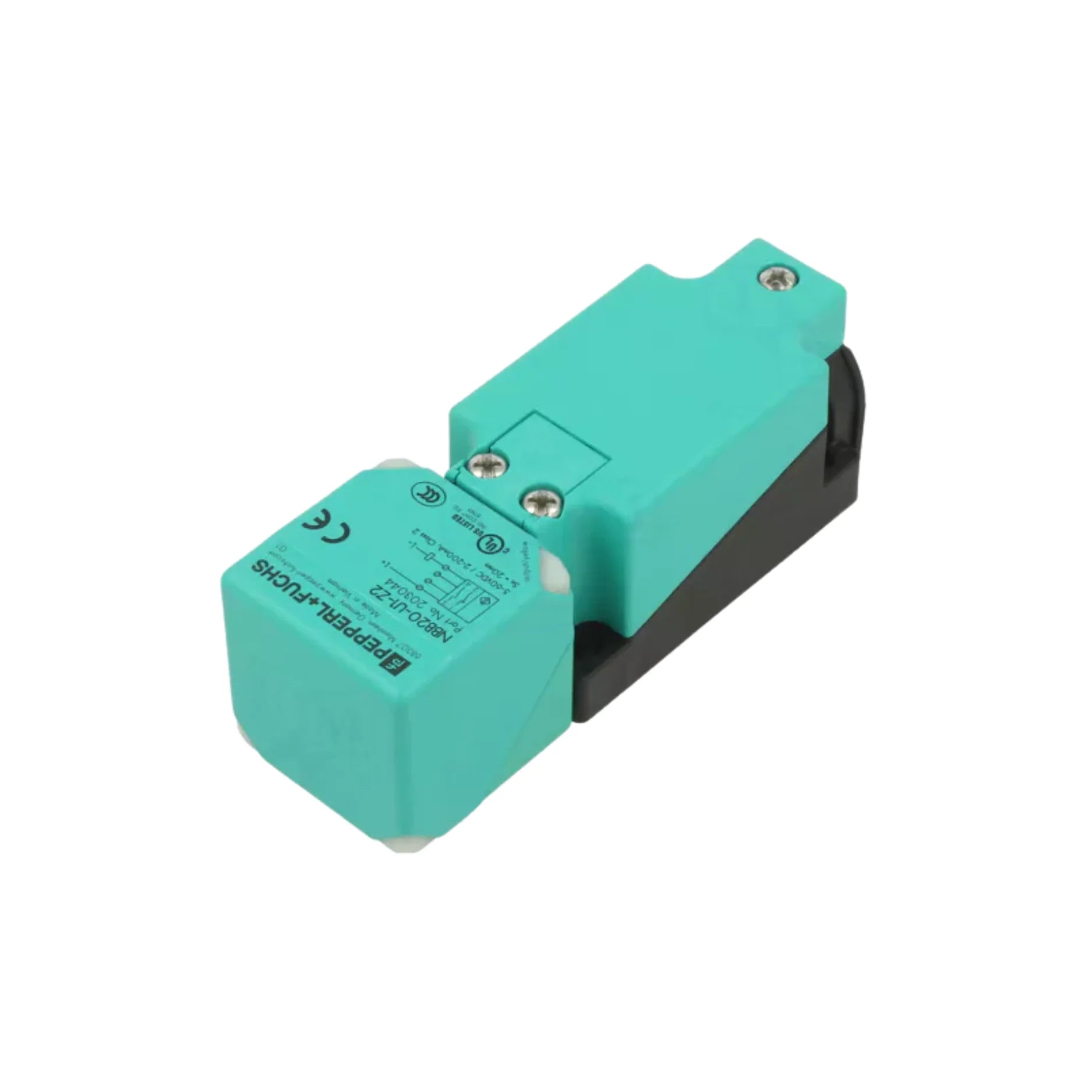

The Pepperl+Fuchs NBB20-U1-Z2 (model 203044) is a high-performance, flush-mount inductive proximity sensor engineered for robust and reliable non-contact detection of metallic objects in demanding industrial environments. Boasting an impressive 20 mm sensing distance, this sensor integrates seamlessly into machinery without protrusion, ensuring maximum protection against mechanical damage. Its advanced design, featuring a 2-wire DC configuration and a broad operating voltage range of 5-60 V DC, simplifies wiring and enhances compatibility across diverse applications. The NBB20-U1-Z2 stands out with its superior environmental protection, evidenced by its IP68 and IP69K ratings, making it ideal for processes requiring frequent washdowns or where exposure to dust and moisture is common. Comprehensive 360° LED indicators provide instant status feedback, ensuring operators can easily monitor sensor operation from any angle.

Constructed with a durable polyamide (PA) housing and an epoxy-coated metal base, this sensor is built to withstand extreme conditions, offering a long service life and consistent performance. Its high switching frequency of up to 250 Hz makes it suitable for high-speed applications, while integrated reverse polarity and short-circuit protection guarantee operational safety and reliability. Whether for precise positioning, object counting, or presence detection, the NBB20-U1-Z2 delivers exceptional accuracy and durability, making it a cornerstone for efficient automation.

Key Features

• Extended Sensing Distance: 20 mm flush mount for reliable detection of metal objects without protrusion.
• Robust Output: Normally Open (NO) / 2-wire DC configuration for simplified electrical integration.
• High Switching Frequency: Up to 250 Hz, ideal for rapid detection in fast-moving applications.
• Wide Supply Voltage Range: Operates efficiently across 5–60 V DC, offering versatile compatibility.
• Current Handling: Rated operating current of 2 to 200 mA with minimal voltage drop (≤ 5 V at 100 mA).
• Comprehensive Protection: Equipped with reverse polarity and short-circuit protection for enhanced safety and longevity.
• Superior Environmental Resistance: IP68 and IP69K protection ratings ensure resilience against dust, moisture, and high-pressure washdowns.
• User-Friendly Indicators: Two 360° visible yellow LEDs provide clear operational status from any viewing angle.
• Durable Construction: Housed in a robust polyamide (PA) body with an epoxy-coated metal base for extreme durability.
• Flexible Connectivity: Screw terminals accommodate wires up to 2.5 mm², ensuring secure and easy installation.
• Optimized Temperature Range: Operates reliably from -25 °C to +85 °C in diverse industrial settings.

Technical Specifications

• Model Number: NBB20-U1-Z2
• Part Number: 203044
• Sensing Distance: 20 mm (Flush Mount)
• Output Type: Normally Open (NO), DC 2-wire
• Switching Frequency: Max. 250 Hz
• Operating Voltage: 5–60 V DC
• Rated Operating Current: 2 to 200 mA
• Voltage Drop: ≤ 5 V at 100 mA
• Off-State Current: 0 to 0.5 mA
• Protection: Reverse Polarity, Short-Circuit
• Hysteresis: Approx. 5% of rated sensing distance
• Indicators: 2 x Yellow LEDs (360° visibility)
• Housing Material: Polyamide (PA) with epoxy-coated metal base
• Protection Class: IP68 / IP69K
• Connection Type: Screw terminals (max. 2.5 mm²)
• Operating Temperature: -25 °C to +85 °C
• Dimensions: 40 mm x 40 mm x 118 mm
• Mounting Type: Flush (can be embedded in metal)

Applications

• Factory Automation: Essential for precise detection of metallic components, ensuring accurate positioning and sequential operations in automated manufacturing lines.
• Material Handling Systems: Optimally used for presence detection, counting, and alignment verification on conveyor belts, improving throughput and reducing errors.
• Food & Beverage Industry: The IP69K rating makes it perfectly suited for hygiene-sensitive applications requiring frequent high-pressure, high-temperature washdowns.
• Packaging Machinery: Guarantees reliable detection of products and packaging materials at high speeds, minimizing downtime and increasing efficiency.
• Automotive Manufacturing: Integral for detecting the presence and position of tools, jigs, and vehicle components during various stages of assembly.
• Robotics: Provides critical feedback for robotic arms and grippers, enhancing precision in pick-and-place operations and collision avoidance.

Why Choose This Model?

• Unmatched Durability: With IP68 and IP69K ratings, this sensor offers unparalleled protection against harsh environmental factors, including dust, water, and extreme temperatures, ensuring long-term reliability.
• Extended Flush Sensing: The 20 mm flush-mount capability allows for seamless integration into metal surfaces, protecting the sensor from physical impact while maintaining a significant detection range.
• Simplified Installation: The 2-wire DC configuration significantly reduces wiring complexity, allowing for quicker and more cost-effective installation and maintenance.
• Operational Flexibility: Featuring a rotatable sensor head and broad compatibility, it adapts to various mounting requirements and industrial setups, enhancing design freedom.
• High Performance: Delivers consistent, accurate detection with a high switching frequency and built-in protection features, ensuring optimal performance in demanding applications.
• Trusted Brand: As a Pepperl+Fuchs product, the NBB20-U1-Z2 embodies engineering excellence and reliability, backed by a global leader in industrial sensor technology.

Order Now

Enhance your industrial automation with the superior precision and durability of the Pepperl+Fuchs NBB20-U1-Z2 inductive proximity sensor. Benefit from its advanced features, robust design, and broad application versatility to optimize your operations. Fast shipping and worldwide delivery options are available to ensure you receive your essential components without delay. Invest in reliability, invest in Pepperl+Fuchs.
