Pepperl+Fuchs NBB20-U1-UU

Overview

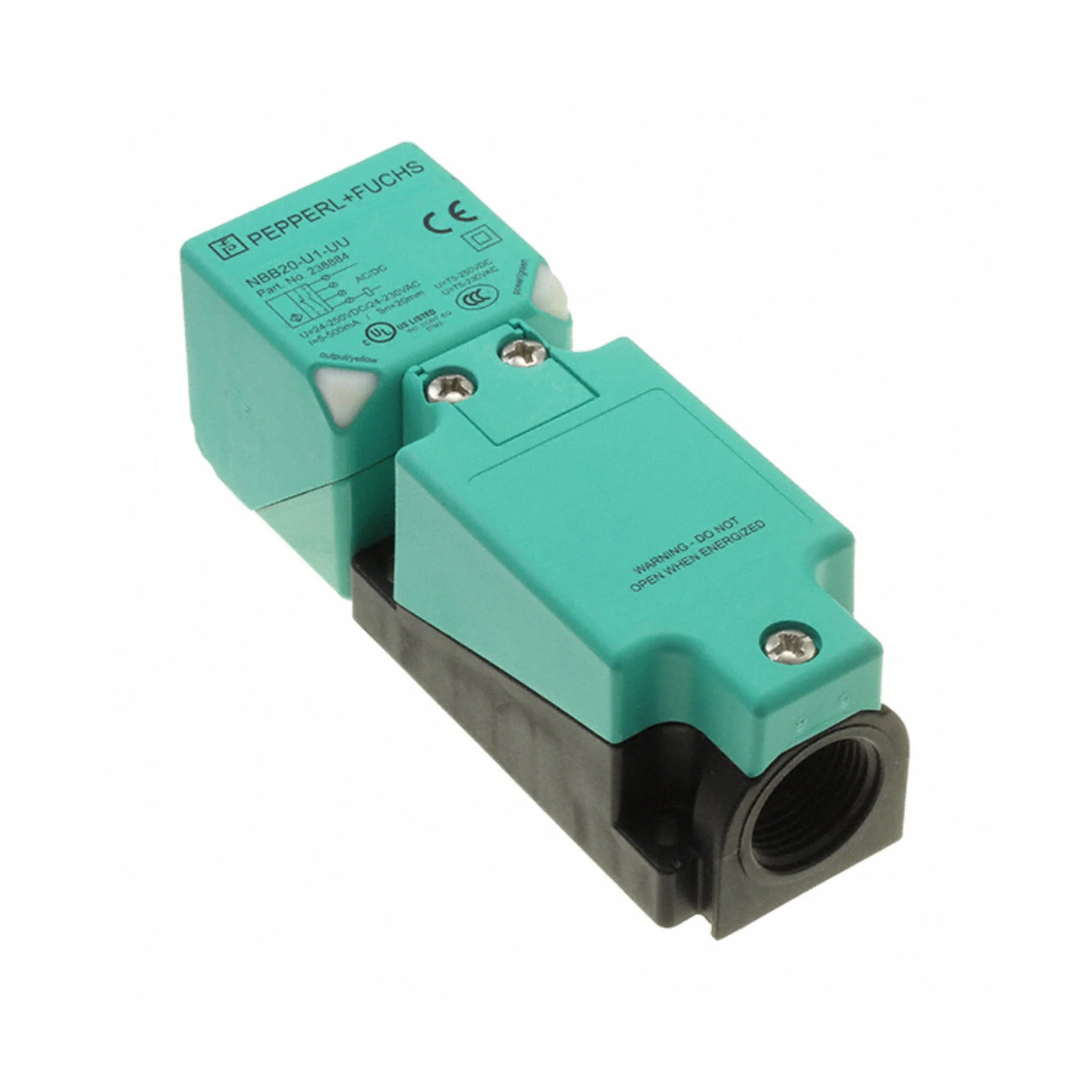

Introducing the Pepperl+Fuchs NBB20-U1-UU inductive proximity sensor, a high-performance solution engineered for demanding industrial environments. This robust sensor, identified by Part No. 238884, delivers an impressive 20 mm sensing distance, making it ideal for the reliable detection of metallic objects even in challenging applications. Its versatile 2-wire AC/DC switching output ensures broad compatibility with various control systems, simplifying integration.

Designed with durability in mind, the NBB20-U1-UU features a rugged, rectangular housing and boasts an IP67 protection rating. This makes it impervious to dust and water ingress, guaranteeing consistent operation in harsh conditions. Whether you're looking to enhance industrial automation processes or require a dependable sensor for installations exposed to the elements, the Pepperl+Fuchs NBB20-U1-UU provides the accuracy and resilience you need.

Key Features

• Extended Sensing Distance: Reliably detects objects up to 20 mm away, offering enhanced application flexibility.
• Universal AC/DC Output: Equipped with a 2-wire AC/DC normally open output, ensuring compatibility with a wide range of power supplies and control circuits.
• Wide Supply Voltage: Operates efficiently across a broad power supply range of 20–250V AC/DC.
• Robust Rectangular Housing: Features a durable block-style housing designed for longevity and easy flush mounting.
• Prewired Convenience: Comes with a 2-meter prewired cable for quick and straightforward installation.
• Comprehensive Protection: Integrated short-circuit, overload, and surge protection safeguard the sensor and associated equipment.
• Clear Status Indication: An integrated LED provides clear visual feedback on the sensor's operating status.
• High Protection Rating: IP67 certified, offering superior protection against dust and water, ensuring reliable performance in harsh industrial settings.

Technical Specifications

• Model Number: NBB20-U1-UU
• Part Number: 238884
• Sensing Distance: 20 mm
• Output Configuration: 2-wire, Normally Open (NO)
• Operating Voltage: 20–250V AC/DC
• Max Switching Frequency: 25 Hz
• Switching Current: Max. 200 mA
• Voltage Drop: < 10V
• Cable Length: 2 meters, 2-wire
• Enclosure Material: PBT (plastic)
• Protection Rating: IP67
• Operating Temperature: -25°C to +70°C
• Mounting: Flush
• Certifications: CE, cULus

Applications

• Material Handling Systems: Excellently suited for detecting large metal targets in conveyor systems, automated warehouses, and logistic operations, ensuring smooth and efficient material flow.
• Packaging Lines: Provides non-contact monitoring of product presence and position on packaging lines, improving accuracy and reducing downtime in high-speed applications.
• General Machinery: A versatile and durable sensing solution for a wide array of industrial machinery where robust performance is required in challenging operational environments.
• Construction Equipment: Offers reliable presence detection in outdoor and rugged conditions, making it an ideal choice for heavy-duty construction vehicles and equipment.

Why Choose This Model?

The Pepperl+Fuchs NBB20-U1-UU stands out as a superior choice for industrial sensing applications due to its combination of advanced features and robust construction. Its extended 20 mm flush sensing range provides unparalleled versatility, allowing for dependable detection even with larger or more distant metallic targets. The universal AC/DC voltage compatibility simplifies integration into existing systems, reducing complexity and installation time. Moreover, the NBB20-U1-UU's IP67 rated enclosure ensures exceptional durability and continuous operation in demanding environments, from dusty factory floors to outdoor installations exposed to the elements. With its prewired design and straightforward 2-wire connection, deployment is hassle-free, making it a cost-effective and reliable solution for enhancing productivity and safety.

Order Now

The Pepperl+Fuchs NBB20-U1-UU inductive sensor (Part No. 238884) is currently in stock and ready for immediate dispatch. Benefit from fast worldwide shipping and equip your operations with this high-performance, durable, and versatile sensing solution. Don't compromise on reliability – order yours today and experience the quality and precision synonymous with Pepperl+Fuchs.
