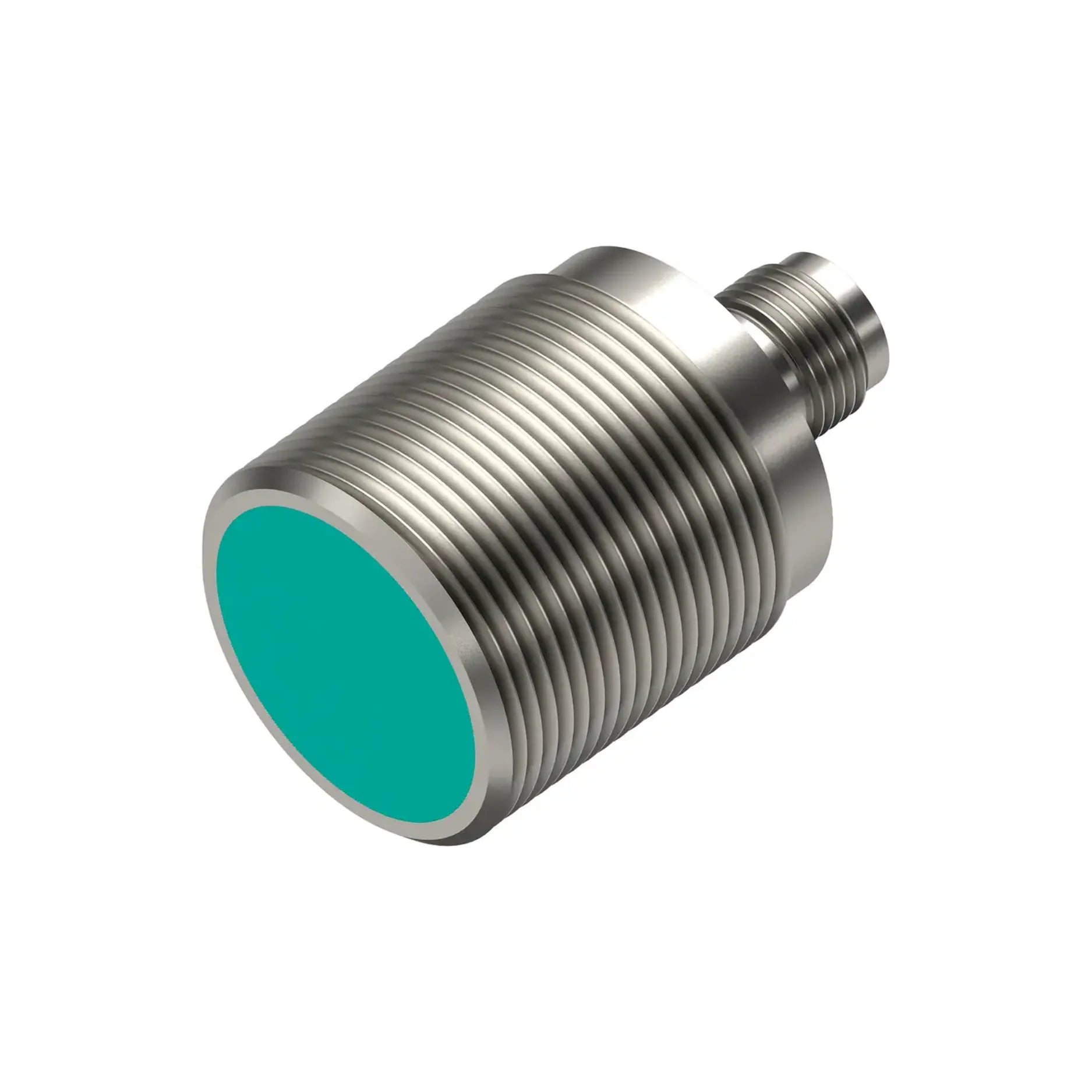

Pepperl+Fuchs NBB15-30GM50-E2-V1

Overview

The Pepperl+Fuchs NBB15-30GM50-E2-V1 stands as a high-performance M30 inductive proximity sensor, engineered to deliver unparalleled accuracy and reliability in non-contact metallic object detection across diverse industrial landscapes. This sensor is more than just a component; it's a robust solution designed to thrive in challenging environments. With a generous 15 mm flush sensing range, it ensures precise detection of targets, minimizing errors and maximizing operational efficiency. Its PNP normally open (NO) switching output simplifies integration into existing control systems, making it a versatile choice for a wide array of automation tasks. Furthermore, an extended operating temperature range of -40°C to +85°C guarantees consistent and dependable performance even under extreme thermal conditions. The NBB15-30GM50-E2-V1's durable construction, featuring premium materials and a high protection rating, coupled with flexible mounting options, solidifies its position as an ideal choice for enhancing productivity and reliability in critical industrial applications.

Key Features

• Extended 15 mm Flush Sensing Range: Achieve exceptional precision in metallic target detection, ensuring accurate and reliable automation processes without protrusion.
• Reliable PNP Normally Open (NO) Output: Benefit from straightforward integration into control systems, providing a dependable signal for various automation applications.
• Extreme Temperature Resilience: Operates flawlessly in temperatures ranging from -40°C to +85°C, making it suitable for the most demanding industrial environments.
• Robust Industrial-Grade Construction: Built with a durable brass housing coated in white bronze and a PBT sensing face, ensuring longevity and resistance to harsh industrial wear and tear.
• Superior Environmental Protection: Boasts an IP65/IP66/IP67/IP68 rating, offering comprehensive defense against dust, water ingress, and other contaminants, ensuring continuous operation.
• Flexible M30 Threaded Mounting: The M30 cylindrical design, complete with self-locking nuts, provides secure and adaptable installation options for various machinery and setups.
• Clear LED Status Indication: A highly visible multihole yellow LED provides immediate visual feedback on the sensor's switching state, facilitating easy monitoring and troubleshooting.

Technical Specifications

• Model Number: NBB15-30GM50-E2-V1
• Switching Function: Normally open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 15 mm
• Installation: Flush
• Operating Voltage (UB): 6 to 36 V DC
• Switching Frequency (f): 0 to 550 Hz
• Hysteresis (H): Typically 5% of sensing distance
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 1 V
• Operating Current (IL): 0 to 200 mA
• Off-State Current (Ir): Maximum 20 µA
• No-Load Supply Current (I0): ≤ 10 mA
• Time Delay Before Availability (tv): ≤ 10 ms
• Reduction Factors:
  • Aluminum (rAl): 0.45
  • Copper (rCu): 0.43
  • Stainless Steel 304 (r304): 0.73
  • Brass (rBrass): 0.53
• Ambient Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Housing Material: Brass, white bronze coated
• Sensing Face Material: PBT, green
• Degree of Protection: IP65/IP66/IP67/IP68
• Connection Type: M12 x 1 connector plug, 3-pin
• Dimensions:
  • Length: 67 mm
  • Diameter: 30 mm
• Weight: Approximately 156 g
• Compliance:
  • Standards: EN IEC 60947-5-2
  • Approvals: cULus Listed for General Purpose, Class 2 Power Source; DNVGL Marine Approval

Applications

• Material Handling Systems: Crucial for accurate detection of metal objects on conveyor belts, enabling precise sorting, positioning, and preventing jams in logistics and manufacturing.
• Automotive Manufacturing: Essential for verifying the presence and correct positioning of metallic vehicle components throughout various stages of the assembly line, ensuring quality control and operational safety.
• Packaging Industry: Integrates seamlessly into packaging machinery to detect metallic parts within packages, ensuring product integrity and compliance.
• Machine Tools: Provides critical feedback on the precise position of metal workpieces and cutting tools, significantly enhancing the accuracy, efficiency, and safety of machining operations.
• Robotics and Automation: Ideal for end-of-arm tooling on robots or within automated cells for object identification and control, improving the flexibility and responsiveness of automated processes.
• Heavy Industrial Equipment: Its robust design and wide temperature range make it perfect for monitoring moving parts or components in heavy machinery, such as in mining, construction, or agricultural equipment.

Why Choose This Model?

The Pepperl+Fuchs NBB15-30GM50-E2-V1 offers a compelling blend of performance, durability, and versatility, making it a standout choice for demanding industrial applications. Its impressive 15 mm flush sensing range provides superior detection accuracy, crucial for operations where precision is paramount. The wide operating temperature range of -40°C to +85°C ensures uninterrupted performance even in the most extreme conditions, a critical factor for maintaining uptime and productivity. Furthermore, its exceptionally robust construction, featuring a white bronze-coated brass housing and a PBT sensing face coupled with an IP68 protection rating, guarantees long-term reliability and resistance against harsh industrial elements like dust, water, and impact. This sensor is not just built to perform; it's built to last. The PNP normally open output simplifies electrical integration, reducing setup time and costs, while clear LED indication provides immediate operational status feedback. By choosing the NBB15-30GM50-E2-V1, you are investing in a sensor that delivers consistent, precise, and durable object detection, ultimately enhancing the efficiency, safety, and longevity of your automated systems.

Order Now

Elevate your industrial automation with the reliable and high-performing Pepperl+Fuchs NBB15-30GM50-E2-V1 M30 inductive sensor. Contact us today to secure this essential component for your systems and experience the difference in precision and durability.
