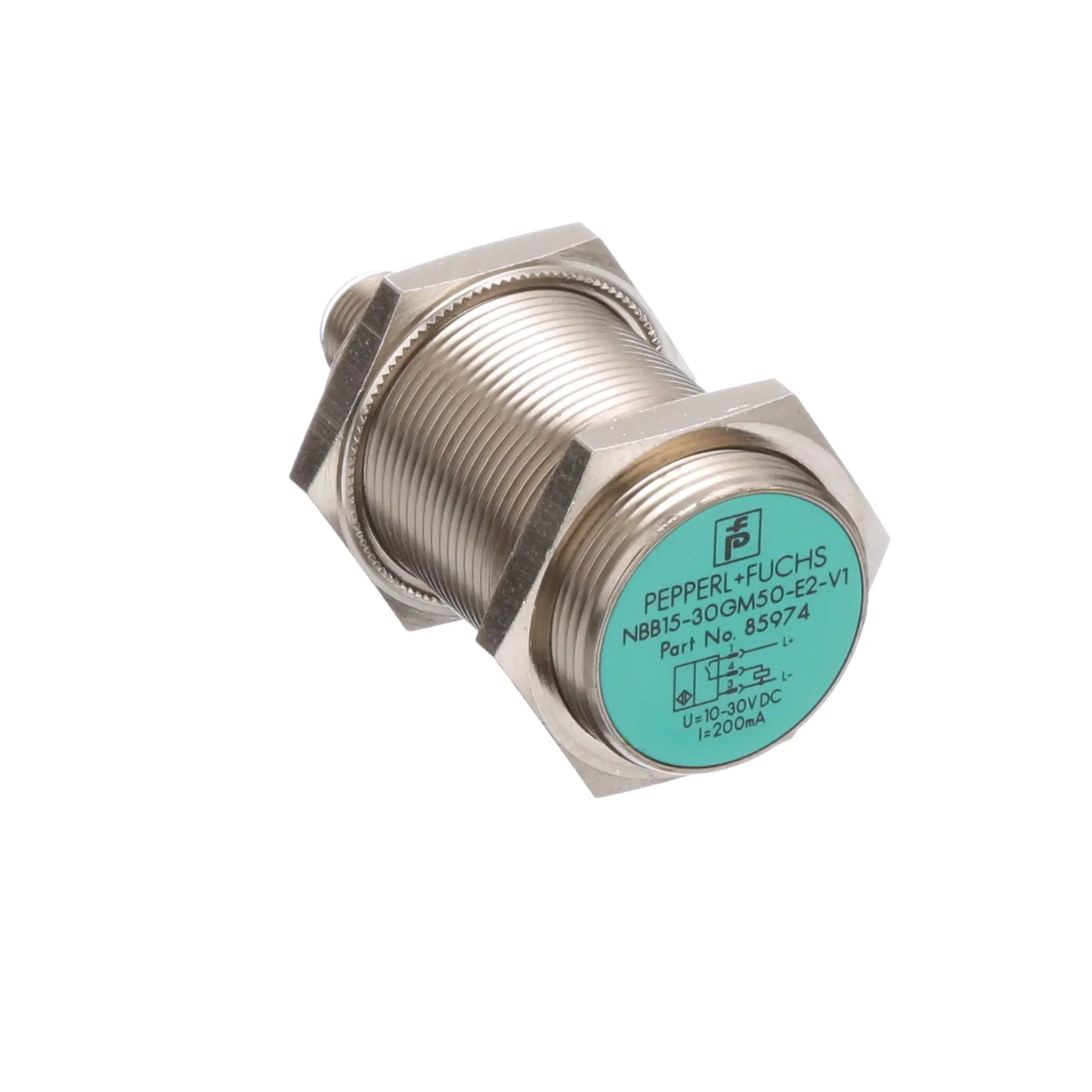

Pepperl+Fuchs NBB15-30GM50-E2-V1

Overview

The Pepperl+Fuchs NBB15-30GM50-E2-V1 (Part Number: 085974) is a high-performance inductive proximity sensor engineered for reliable, non-contact detection of metallic objects in demanding industrial environments. Boasting an impressive 15 mm sensing distance, this sensor provides exceptional detection capabilities, reducing the likelihood of false triggers and enhancing operational efficiency. Its robust M30 threaded housing, constructed from nickel-plated brass, ensures superior durability and resistance to mechanical stress and corrosion. Coupled with an IP67 protection rating, the NBB15-30GM50-E2-V1 is perfectly suited for applications exposed to dust, dirt, and moisture. The PNP normally open (NO) output configuration offers seamless integration into a wide array of control systems, while the M12, 4-pin connector facilitates quick and secure plug-and-play installation. This sensor is an ideal solution for engineers and system integrators seeking a dependable and long-lasting sensing solution for their automated processes.

Key Features

• Extended 15 mm Sensing Distance: Enables reliable detection of metal objects from a greater range, beneficial for diverse applications.
• PNP Normally Open (NO) Output: Provides a flexible and compatible signal for various industrial control systems.
• Durable M30 Threaded Housing: Constructed from high-quality nickel-plated brass, offering exceptional mechanical stability and chemical resistance.
• IP67 Environmental Protection: Guarantees reliable operation in harsh conditions, protecting against dust ingress and temporary immersion in water.
• Wide Operating Voltage (10-30V DC): Ensures versatility and compatibility with standard industrial power supplies.
• Integrated LED Indicator: Clearly displays the switching status, simplifying commissioning and troubleshooting.
• M12, 4-pin Connector: Industry-standard connection for quick, secure, and error-free installation.
• Short-circuit and Reverse Polarity Protection: Enhances the sensor's longevity and system safety by preventing common electrical faults.

Technical Specifications

• Model Number: NBB15-30GM50-E2-V1
• Part Number: 085974
• Sensing Range: 15 mm
• Output Configuration: PNP NO
• Operating Voltage: 10–30V DC
• Max Load Current: 200 mA
• Voltage Drop: ≤ 3 V
• No-Load Current: ≤ 15 mA
• Switching Frequency: 250 Hz
• Protection Features: Short-circuit and reverse polarity protection
• Connector Type: M12, 4-pin
• Housing Material: Nickel-plated brass
• Sensing Face Material: PBT plastic
• Protection Rating: IP67
• Operating Temperature: -25°C to +70°C
• Mounting Style: Non-flush in metal

Applications

• Material Handling Systems: Accurately detect the presence and position of large metallic objects on conveyor belts, sorting systems, and automated guided vehicles (AGVs).
• Automated Packaging Equipment: Ensure precise object detection for filling, sealing, and labeling processes, minimizing errors and maximizing throughput.
• Industrial Robotics: Provide reliable feedback for robotic arm positioning, gripping, and collision avoidance in manufacturing and assembly lines.
• Heavy Machinery Monitoring: Monitor components in challenging environments, such as construction equipment or agricultural machinery, where dust and moisture are prevalent.
• Outdoor and Dusty Environments: The robust IP67 rating makes it suitable for demanding outdoor applications or indoor settings with high levels of particulate matter, ensuring consistent performance.

Why Choose This Model?

The Pepperl+Fuchs NBB15-30GM50-E2-V1 stands out as a superior choice for industrial sensing due to its blend of extended performance and rugged durability. The generous 15 mm sensing distance allows for flexible mounting and reliable detection even when slight variations in object distance occur, reducing the need for precise alignment. Its M30 nickel-plated brass housing, combined with the IP67 protection rating, guarantees exceptional resilience against impact, vibration, and harsh environmental conditions, translating into a longer operational life and reduced maintenance costs. Furthermore, the 250 Hz switching frequency ensures that this sensor can keep pace with fast-moving targets, providing accurate and timely data for critical automation processes. With its plug-and-play M12 connector and built-in protection features, the NBB15-30GM50-E2-V1 offers both ease of integration and peace of mind, making it a valuable asset for any modern industrial setup seeking efficiency and reliability.

Order Now

Enhance your automation systems with the reliable and durable Pepperl+Fuchs NBB15-30GM50-E2-V1 inductive sensor. This product is available for immediate international shipping, ensuring prompt delivery to meet your project deadlines. Invest in proven Pepperl+Fuchs quality and experience the benefits of superior object detection and robust performance.
