Pepperl+Fuchs NBB1.5-8GM40-E2-V1

Overview

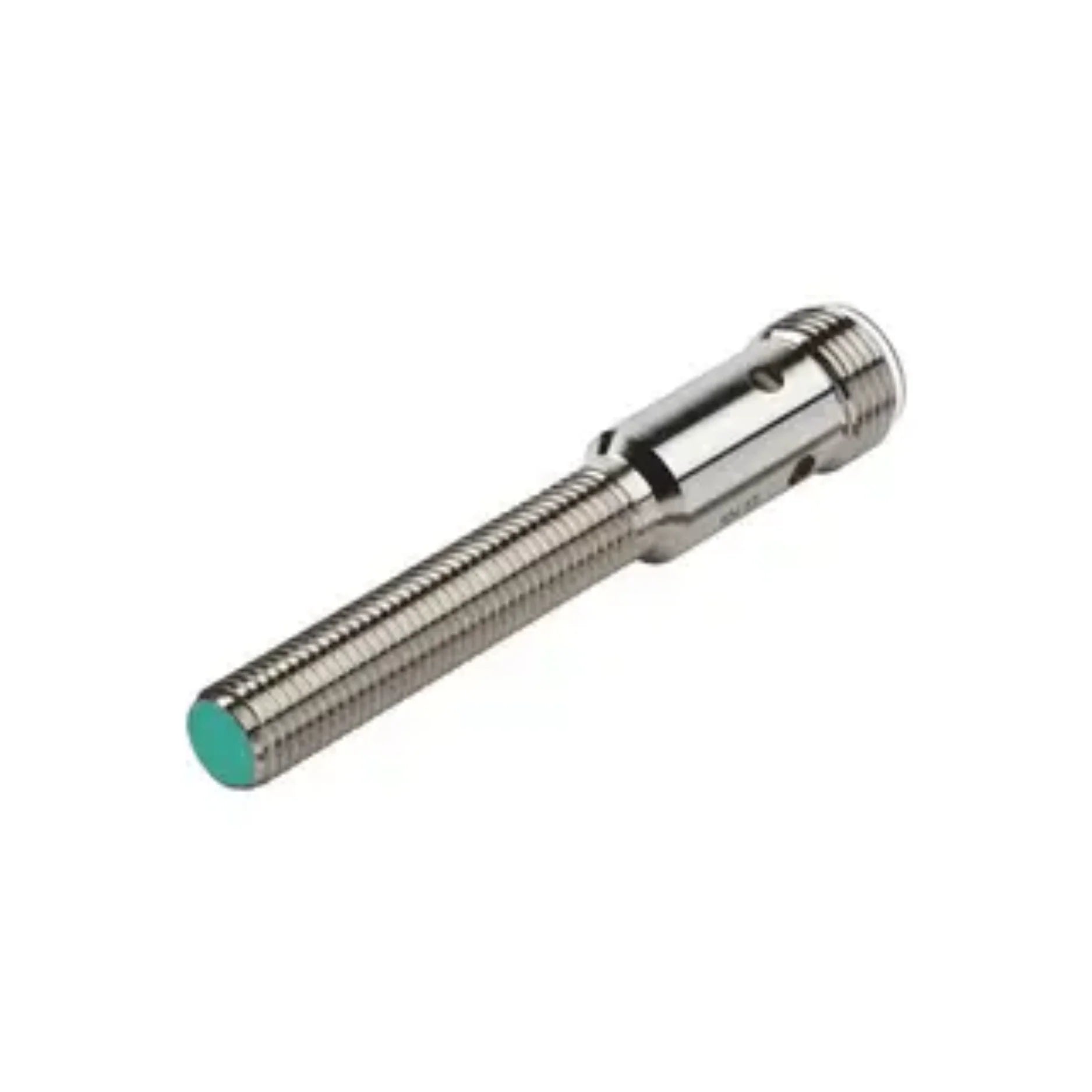

The Pepperl+Fuchs NBB1.5-8GM40-E2-V1 is a pinnacle of compact design and precision engineering in industrial automation. This M8 inductive proximity sensor is meticulously crafted to deliver accurate and reliable object detection, even in the most demanding environments. With its 1.5mm sensing distance, it excels at the precise identification of metallic objects, making it an indispensable component for optimizing efficiency and preventing operational disruptions across a wide array of industrial applications. Its robust construction, featuring a durable nickel-plated brass housing and flush mounting capabilities, ensures prolonged performance and seamless integration into existing systems. This sensor embodies Pepperl+Fuchs' commitment to quality and innovation, providing a dependable solution for vital detection tasks.

Key Features

• Sensing Distance: Precise 1.5mm rated operating distance for accurate metallic object detection.
• Output Type: PNP Normally Open (NO) configuration for versatile control applications.
• Mounting: Flush installation capability allows for seamless integration into machinery without protrusion.
• Housing: Robust M8 threaded, nickel-plated brass construction ensures exceptional durability and longevity in harsh industrial settings.
• Connection: Standard M12 x 1 connector, 4-pin, for quick and reliable electrical hook-up.
• Operating Voltage: Wide operating voltage range of 10 to 30 V DC for flexible power integration.
• Switching Frequency: High switching frequency up to 1,500 Hz for dynamic and rapid detection tasks.
• Protection Rating: IP67 degree of protection guarantees resistance against dust and water ingress, enhancing reliability in challenging environments.
• Operating Temperature Range: Broad operating temperature range from -25°C to +70°C (-13°F to +158°F) for consistent performance.
• Indicator: Clear yellow LED provides instant visual feedback on switching status.

Technical Specifications

• Model Number: NBB1.5-8GM40-E2-V1
• Series: Basic Series
• Switching Function: Normally Open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 1.5mm
• Assured Operating Distance (sa): 0 to 1.215mm
• Reduction Factors:
• Aluminum (rAl): 0.45
• Copper (rCu): 0.35
• Stainless Steel (r304): 0.75
• Operating Voltage (UB): 10 to 30 V DC
• Switching Frequency (f): 0 to 1,500 Hz
• Hysteresis (H): 1% to 10%, typically 5%
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 3 V
• Operating Current (IL): 0 to 100 mA
• No-Load Supply Current (I0): ≤ 15 mA
• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C
• Switching State Indicator: Multihole yellow LED
• Connection Type: M12 x 1 connector, 4-pin
• Housing Material: Nickel-plated brass
• Sensing Face Material: LCP (Liquid Crystal Polymer)
• Degree of Protection: IP67
• Dimensions:
• Length: 40mm
• Diameter: 8mm
• Standards Compliance: EN 60947-5-2
• Approvals:
• UL: cULus Listed, General Purpose
• CCC: Not required for products rated ≤36 V

Applications

The versatility and high performance of the Pepperl+Fuchs NBB1.5-8GM40-E2-V1 make it an ideal choice for a diverse range of critical industrial applications:

• Industrial Automation: Facilitates the precise detection of metallic components in high-speed assembly and processing lines, ensuring accurate positioning and operational oversight.
• Robotics: Essential for position sensing and providing crucial end-of-arm tooling feedback, enhancing robotic precision and safety in manufacturing environments.
• Packaging Machinery: Reliably monitors the presence and exact position of metal parts within packaging processes, minimizing errors and maximizing throughput.
• Material Handling: Key for detecting various metal objects on conveyors, chutes, and sorting systems, improving material flow and inventory management.
• Machine Tools: Supports automated processes by ensuring components are correctly placed and detected during machining operations.
• Food & Beverage: Suitable for detection tasks in areas where washdowns may occur due to its IP67 rating (though direct food contact not implied).

Why Choose This Model?

Opting for the Pepperl+Fuchs NBB1.5-8GM40-E2-V1 offers distinct advantages that set it apart:

• High Precision: Experience unparalleled accuracy with a 1.5mm sensing range, guaranteeing reliable detection of even small metallic targets.
• Robust Construction: Its durable nickel-plated brass housing is engineered for resilience, ensuring a long operational life in the most challenging industrial environments.
• Compact Size: The M8 threaded design is incredibly space-efficient, allowing for easy installation in constrained areas where larger sensors cannot fit.
• Reliable Performance: With a high switching frequency of up to 1,500 Hz, this sensor provides consistent and dynamic detection for fast-moving applications.
• Easy Integration: The industry-standard M12 connector allows for swift, secure, and hassle-free electrical connections, reducing installation time and complexity.
• Brand Trust: Pepperl+Fuchs is a globally recognized leader in industrial sensor technology, ensuring you invest in a product backed by decades of expertise and innovation.

Order Now

Elevate your industrial automation processes with the superior reliability and precision of the Pepperl+Fuchs NBB1.5-8GM40-E2-V1 inductive proximity sensor. This essential component is engineered to meet the rigorous demands of modern manufacturing and logistics, ensuring seamless operation and enhanced productivity. Available for immediate shipping worldwide, secure yours today to bring unparalleled detection capabilities to your systems.
