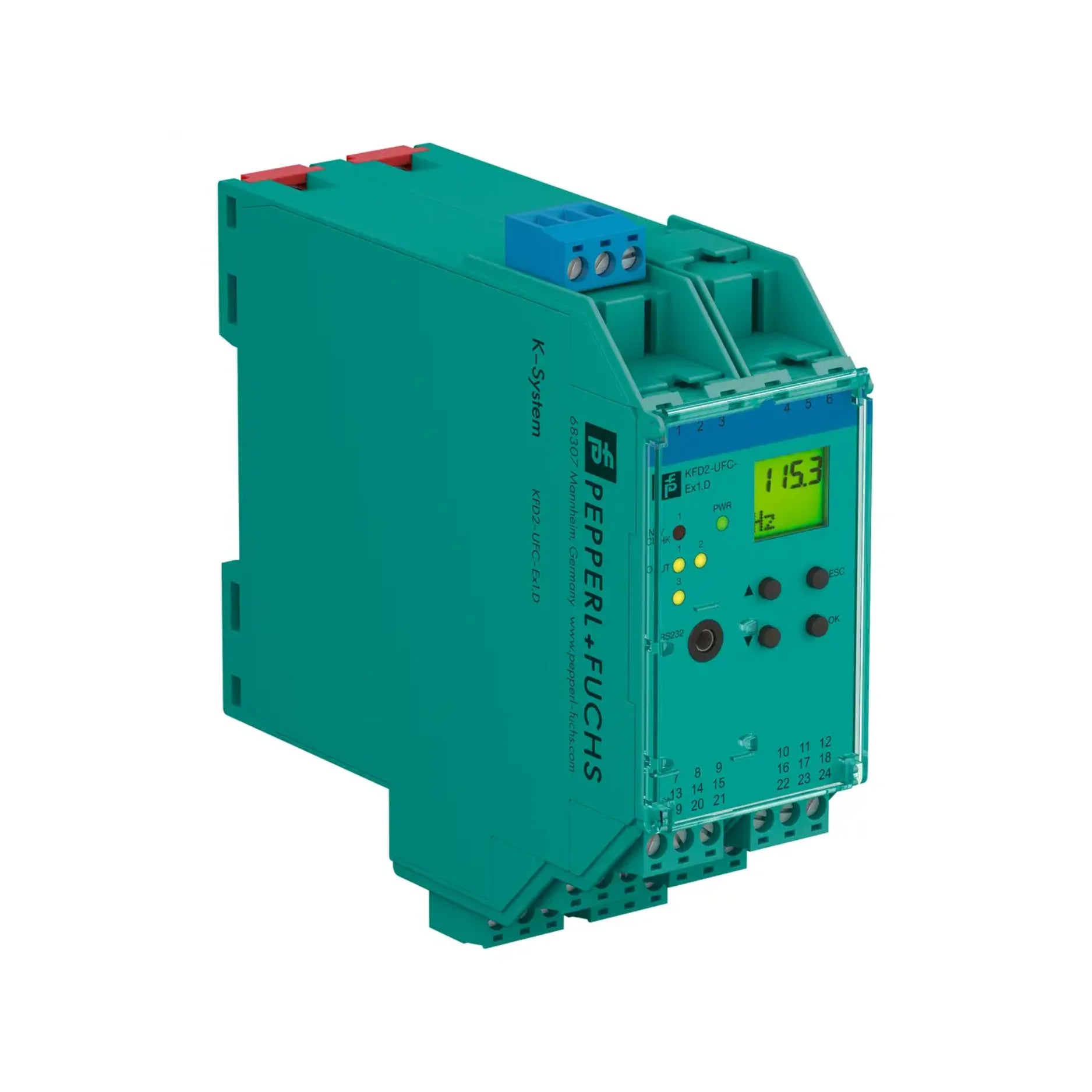

Pepperl+Fuchs KFD2-UFC-Ex1.D

Overview

The Pepperl+Fuchs KFD2-UFC-Ex1.D is a state-of-the-art universal frequency converter and trip amplifier meticulously engineered for the demanding requirements of industrial process control. This robust device plays a critical role in safely interfacing signals originating from hazardous areas, converting raw digital pulse signals from NAMUR sensors or mechanical contacts into highly accurate, proportional analog current outputs (0/4–20 mA). Beyond its precision conversion capabilities, it features two integrated relay outputs, providing essential alarm and trip functionalities. This makes the KFD2-UFC-Ex1.D an indispensable component for applications such as frequency-to-current conversion in flow measurement, critical speed monitoring, and sophisticated flow signal conditioning, ensuring operational safety and efficiency.

Designed with safety as a paramount concern, this unit boasts SIL 2 functional safety certification in accordance with the stringent IEC 61508/61511 standards. Its compact and durable design is optimized for seamless DIN rail mounting within industrial control panels, facilitating straightforward integration into existing and new systems. The KFD2-UFC-Ex1.D represents a reliable and high-performance solution for challenging hazardous area signal processing needs.

Key Features

• Versatile Signal Input: Compatible with NAMUR sensors or dry contacts for broad application flexibility.
• Wide Frequency Range: Processes signals from 0.001 Hz up to 5,000 Hz, accommodating diverse operational speeds.
• Configurable Analog Output: Provides precise 0–20 mA or 4–20 mA analog current outputs for seamless integration with control systems.
• Robust Switching Capabilities: Includes two relay contacts for critical trip alarms and one transistor output for additional control.
• Efficient Power Supply: Operates on a 24 V DC power supply, conveniently delivered via Power Rail or terminal connections.
• Rapid Response Time: Ensures an analog output response time of less than 100 ms for real-time process monitoring.
• Advanced Safety Integrity: SIL 2 (SC3) rated according to IEC/EN 61508, guaranteeing high levels of functional safety.
• Integrated Line Fault Detection (LFD): Features open/short-circuit detection for enhanced diagnostic capabilities and operational reliability.
• Durable Protection Class: IP20 protection class ensures fundamental ingress protection for industrial environments.
• Convenient Mounting: Designed for easy and secure DIN rail mounting, simplifying installation and maintenance.

Technical Specifications

• Model Number: KFD2-UFC-Ex1.D
• Manufacturer Part Number: 231194
• Input Signal: NAMUR sensor or mechanical contact
• Output:
  • Analog: 0/4–20 mA
  • Relay: 250 V AC / 2 A, 40 V DC / 2 A (resistive)
  • Transistor: Passive open collector
• Power Consumption: Approximately 2.2 W
• Operating Temperature: -20 °C to +60 °C
• Dimensions: 40 mm (W) × 119 mm (H) × 115 mm (D)
• Weight: Approximately 180 g

Applications

The Pepperl+Fuchs KFD2-UFC-Ex1.D is a highly adaptable component suitable for a wide array of industrial applications requiring precise frequency-to-current conversion and signal conditioning in hazardous environments. Its versatility and robust safety features make it ideal for:

• Flow Measurement Systems: Essential for accurate frequency-to-current conversion in various flow metering applications.
• Rotational Speed Monitoring: Crucial for monitoring equipment speed with integrated trip alarms to prevent overspeed or underspeed conditions.
• Pulse Monitoring in Process Automation: Provides reliable conversion and monitoring of pulse signals within complex automated processes.
• Hazardous Area Signal Conversion: Ensures safe and compliant signal processing from hazardous locations, adhering to strict safety protocols.

Why Choose This Model?

The Pepperl+Fuchs KFD2-UFC-Ex1.D stands out as a superior choice for industrial applications due to its unparalleled combination of precision, safety, and ease of integration. Opting for this universal frequency converter provides numerous advantages:

• Exceptional Signal Conversion: Reliably translates frequency signals into standard analog outputs, ensuring compatibility with diverse control systems.
• Integrated Safety Compliance: With a built-in SIL 2 rating, it offers robust functional safety, critical for operations in hazardous environments.
• Flexible Output Options: Equipped with versatile relay outputs, it provides robust capabilities for alarm instantiation or advanced control logic implementation.
• Simplified Installation: Designed for easy DIN rail mounting and Power Rail compatibility, facilitating quick and secure setup, minimizing downtime during installation and maintenance.
• Pepperl+Fuchs Quality: Benefit from the renowned quality and reliability synonymous with the Pepperl+Fuchs brand, ensuring long-term performance and durability.
