Pepperl+Fuchs GLV18-8-450/73/120

Overview

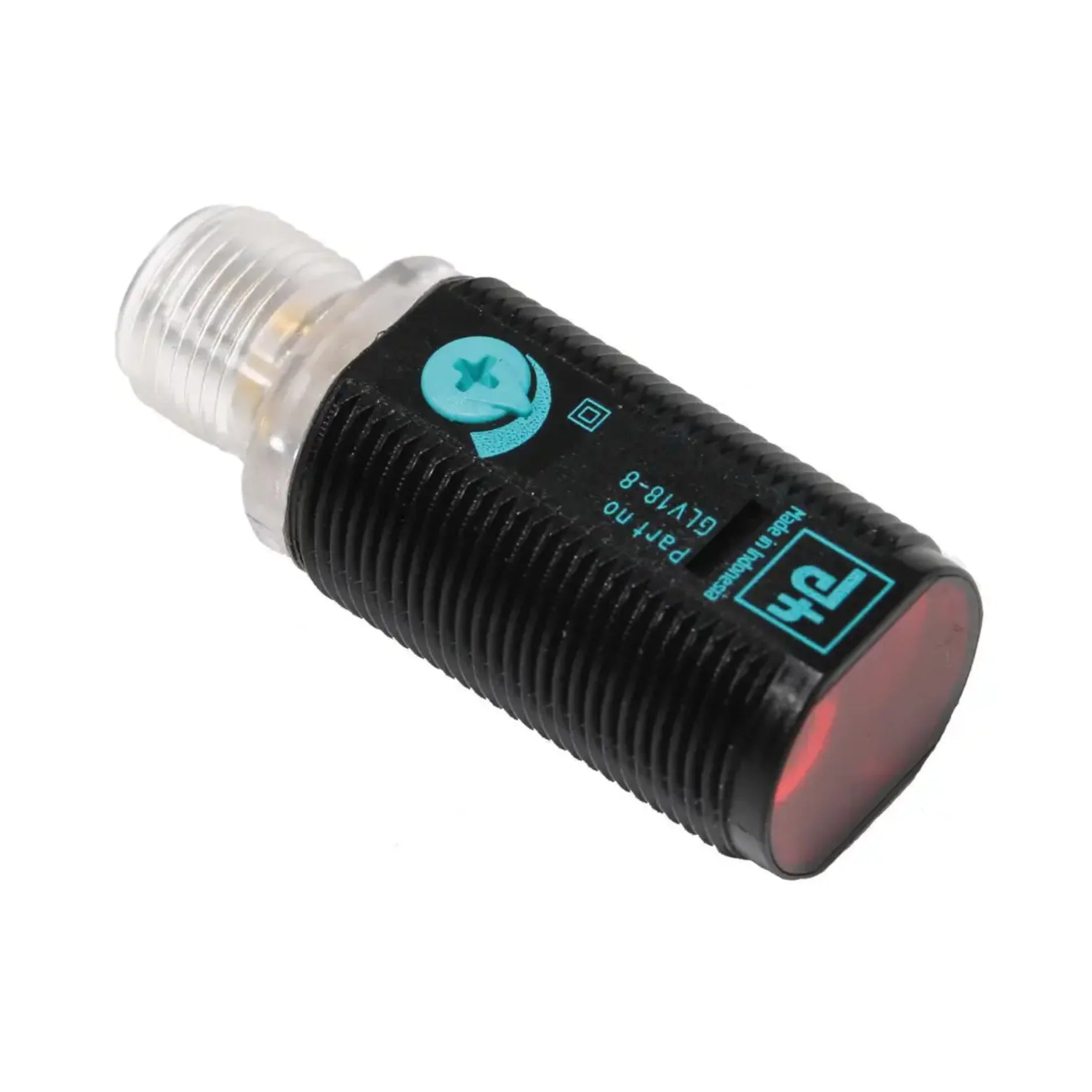

The Pepperl+Fuchs GLV18-8-450/73/120 diffuse mode sensor is engineered for exceptional performance in diverse industrial environments. This high-precision sensor reliably detects objects within a flexible range of 50 to 450 mm, making it an indispensable component for a multitude of automation tasks. Its design incorporates two complementary PNP outputs, ensuring seamless integration and versatile signaling options. Encased in a durable, compact M18 threaded plastic housing, the GLV18-8-450/73/120 is built for longevity and ease of installation. The integration of visible red light technology and a frontal optical face guarantees precise alignment and accurate object detection, significantly enhancing operational efficiency.

Key Features

• Adjustable Detection Range: Precisely tune the sensing distance from 50 mm to 450 mm, providing adaptability for various application requirements.
• Dual PNP Outputs: Equipped with two complementary PNP outputs for flexible control and feedback mechanisms within your automation systems.
• Robust M18 Housing: Features a resilient M18 threaded plastic design with a frontal optical face, ensuring durability and straightforward mounting.
• Visible Red Light Source: Utilizes modulated visible red light (640 nm) for superior object detection and simplified alignment.
• 360° Status Indication: Four integrated LEDs offer comprehensive 360° visibility, providing clear and immediate operational status.
• Potentiometer Sensitivity Adjustment: Easy-to-use potentiometer allows for precise and quick sensitivity adjustments, optimizing performance for specific tasks.
• IP67 Protection Rating: Boasts an IP67 protection rating, guaranteeing robust resistance against dust and water ingress, ideal for demanding industrial settings.
• M12 Plug Connection: Ensures secure and rapid electrical connections, streamlining installation and maintenance procedures.

Technical Specifications

• Model Number: GLV18-8-450/73/120
• Part Number: 188567
• Detection Range Max: 0 to 450 mm
• Reference Target: 100 mm x 100 mm Kodak white
• Light Spot Diameter: Approximately 30 mm at 400 mm
• Opening Angle: Approximately 4°
• Ambient Light Limit: 30,000 Lux
• Hysteresis: Less than 15%
• Operating Voltage: 10 to 30 V DC
• No-Load Supply Current: Less than 20 mA
• Switching Type: Light/dark on
• Switching Voltage Max: 30 V DC
• Switching Current Max: 100 mA
• Voltage Drop: ≤ 1.5 V DC
• Switching Frequency: Up to 500 Hz
• Response Time: ≤ 1 ms
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +70°C
• Standards Compliance: EN 60947-5-2
• Certifications: CE, cULus Listed, UKCA

Applications

The versatility and high performance of the Pepperl+Fuchs GLV18-8-450/73/120 diffuse mode sensor make it perfectly suited for a broad array of industrial detection applications, including:

• Packaging Industry: Essential for precise presence checks, accurate track loading, comprehensive completeness checks, and reliable stack height control.
• Material Handling: Crucial for accurate presence checks, exact target sensing, meticulous profile checks, and responsive trigger sensing in automated material flow systems.
• Automatic Doors and Gates: Provides secure and dependable detection for the safe and efficient operation of automatic door and gate systems.
• Elevator Systems: Integral for precise closing edge monitoring and robust turnstile monitoring, ensuring safety and operational integrity.

Why Choose This Model?

The Pepperl+Fuchs GLV18-8-450/73/120 stands out as an exceptional choice for your sensing requirements due to its superior features and robust design:

• High Detection Range: Offers a highly adjustable detection range of up to 450 mm, providing unparalleled flexibility for a diverse range of applications.
• Compact and Efficient Design: Its short M18 plastic housing is not only space-saving but also perfectly suited for seamless integration into standard industrial installations.
• Enhanced Visibility and Monitoring: Equipped with four LEDs that provide 360° status indication, ensuring effortless and clear monitoring of the sensor's operational state from any angle.
• Easy and Precise Adjustment: Features an optimized potentiometer design that simplifies sensitivity settings, allowing for quick and accurate adjustments to meet specific application needs.
• Unwavering Reliable Performance: With an IP67 rating, this sensor guarantees exceptional durability and consistent performance even in the most challenging and harsh industrial environments.

Order Now

Enhance your industrial automation processes with the reliable and high-performance Pepperl+Fuchs GLV18-8-450/73/120 diffuse mode sensor. This essential component is available for immediate worldwide shipping to meet your operational demands swiftly.
