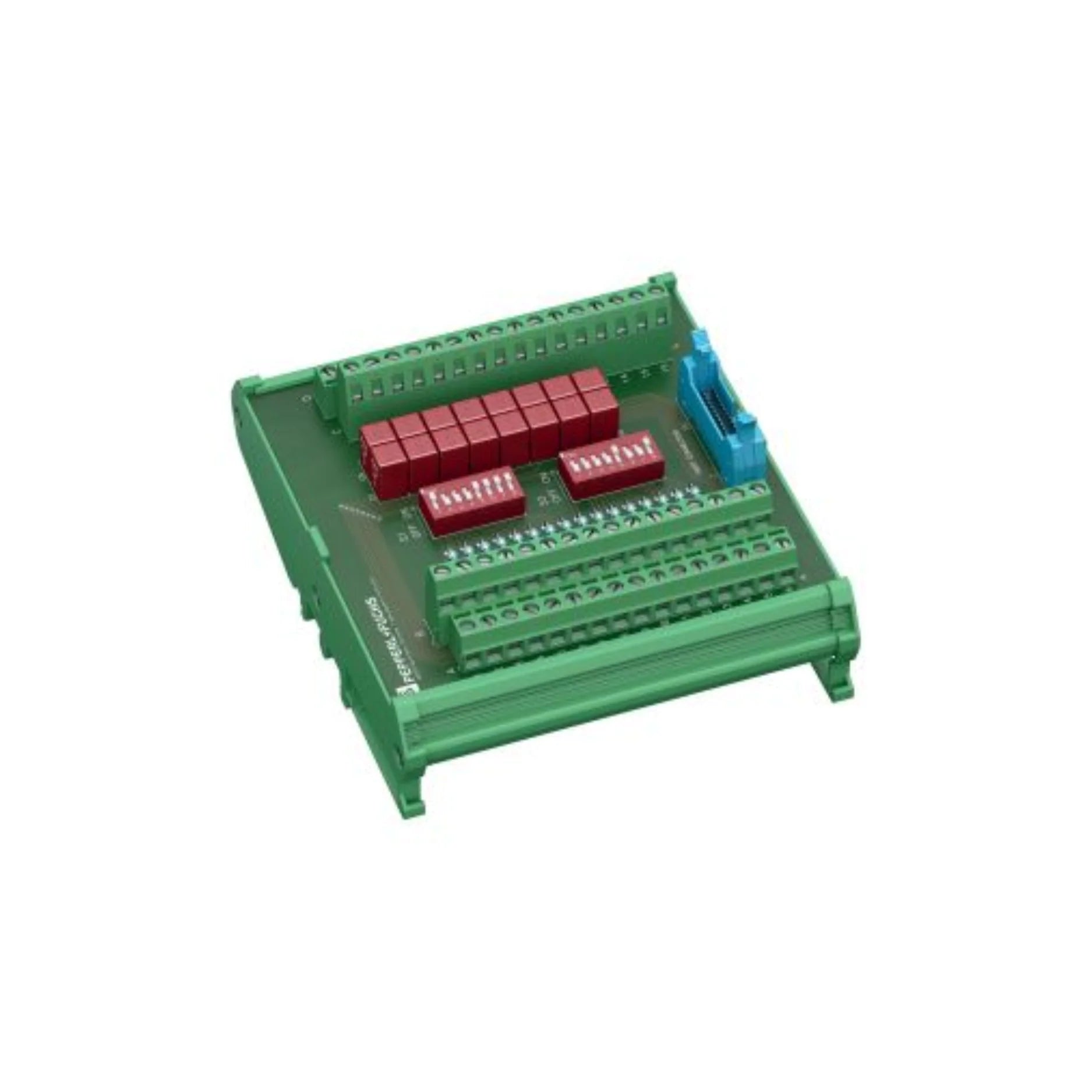

Pepperl+Fuchs FI-PFH-NS0137-R

Overview

The Pepperl+Fuchs FI-PFH-NS0137-R stands as a robust and essential 16-channel HART termination board, meticulously engineered to bridge the communication gap between your HART field devices and K-System HART multiplexers. This critical component ensures seamless and reliable data transmission within demanding industrial environments. With its integrated, switchable 220 Ω load resistor per channel, the FI-PFH-NS0137-R provides unparalleled flexibility and signal integrity, supporting both series and parallel connection configurations. Designed for ease of integration and long-term performance, this termination board is an ideal solution for upgrading or maintaining efficient process automation systems.

Key Features

• Channels: Equipped with 16 non-intrinsically safe HART signal channels, ready for diverse industrial applications.
• Load Resistor: Features an integrated, switchable 220 Ω resistor for each channel, optimizing signal quality and system flexibility.
• Interface: Provides a reliable 26-pin IDC plug, ensuring a secure and straightforward connection to your multiplexer.
• Signal Lines: Capable of handling a rated current up to 30 mA per channel, supporting stable communication.
• Control Elements: User-friendly DIP switches allow for easy selection of operating modes:

  • ON: Operates without the load resistor, offering adaptability to different system requirements.
  • OFF: Engages the load resistor, ensuring signal stability and compliance.
• Factory Settings: DIP switches S1 and S2 are conveniently pre-set to ON for immediate use.
• Connection: Utilizes secure screw terminals for both field and control sides, simplifying wiring and enhancing reliability.
• Mounting: Designed for efficient installation on a 35 mm DIN rail, conforming to EN 60715:2001 standards, saving valuable cabinet space.
• Housing Material: Constructed from durable PVC, offering protection in industrial settings.
• Protection Class: Rated IP20, providing defense against solid objects.
• Dimensions (W×H×D): Compact dimensions of 110 × 125 × 61 mm (4.3 × 4.9 × 2.4 inches) for versatile placement.
• Weight: Approximately 210 g, ensuring easy handling and installation.

Technical Specifications

• Ambient Temperature Range: Operates reliably from 0 °C to +50 °C (32 °F to 122 °F).
• Storage Temperature Range: Suitable for storage between -15 °C to +50 °C (5 °F to 122 °F).
• Relative Humidity: Tolerates ≤ 93% non-condensing humidity.
• Shock Resistance: Withstands shocks up to 15 g, 11 ms (EN 60068-2-27), ensuring durability.
• Vibration Resistance: Resilient to vibrations of 1 g, 10–150 Hz (EN 60068-2-6), maintaining performance under stress.
• Electromagnetic Compatibility: Complies with Directive 2014/30/EU (EN 61326-1:2013 for industrial locations) and NE 21:2017, ensuring minimal interference.
• Hazardous Area Certification: Certified with PF 11 CERT 1930 X and marked II 3G Ex nA IIC T4 Gc, allowing deployment in classified hazardous areas.
• Directive Conformity: Fully compliant with Directive 2014/34/EU, EN IEC 60079-0:2018+AC:2020, and EN 60079-15:2010.

Applications

• Process Automation Systems: Essential for enhancing communication and control in complex automation setups.
• Chemical and Petrochemical Industries: Provides reliable data exchange in environments where precision and safety are paramount.
• Oil and Gas Facilities: Ensures robust HART signal transmission in critical upstream and downstream operations.
• Pharmaceutical Manufacturing: Supports accurate and consistent data acquisition for stringent production processes.
• Water and Wastewater Treatment Plants: Facilitates efficient monitoring and control of various treatment stages.

Why Choose This Model?

The Pepperl+Fuchs FI-PFH-NS0137-R is more than just a termination board; it’s a commitment to superior performance and reliability in your industrial operations. Its design focuses on seamless integration, offering efficient connectivity between your HART field devices and K-System multiplexers. The flexibility provided by its switchable load resistors and support for both series and parallel connections allows for tailored solutions to meet diverse application needs. Built with robust materials and adhering to rigorous industry standards, this model guarantees stable signal transmission even in the most challenging industrial environments. Its compact, DIN rail-mountable design optimizes space in control cabinets, making it an intelligent choice for modern industrial setups. With Pepperl+Fuchs, you are investing in a product that combines innovation, durability, and unfailing operational excellence.

Order Now

Elevate your industrial communication infrastructure with the Pepperl+Fuchs FI-PFH-NS0137-R 16-Channel HART Termination Board. Contact us today to secure this essential component for your system and benefit from enhanced reliability and efficiency in your process automation. Part No. 22593.
