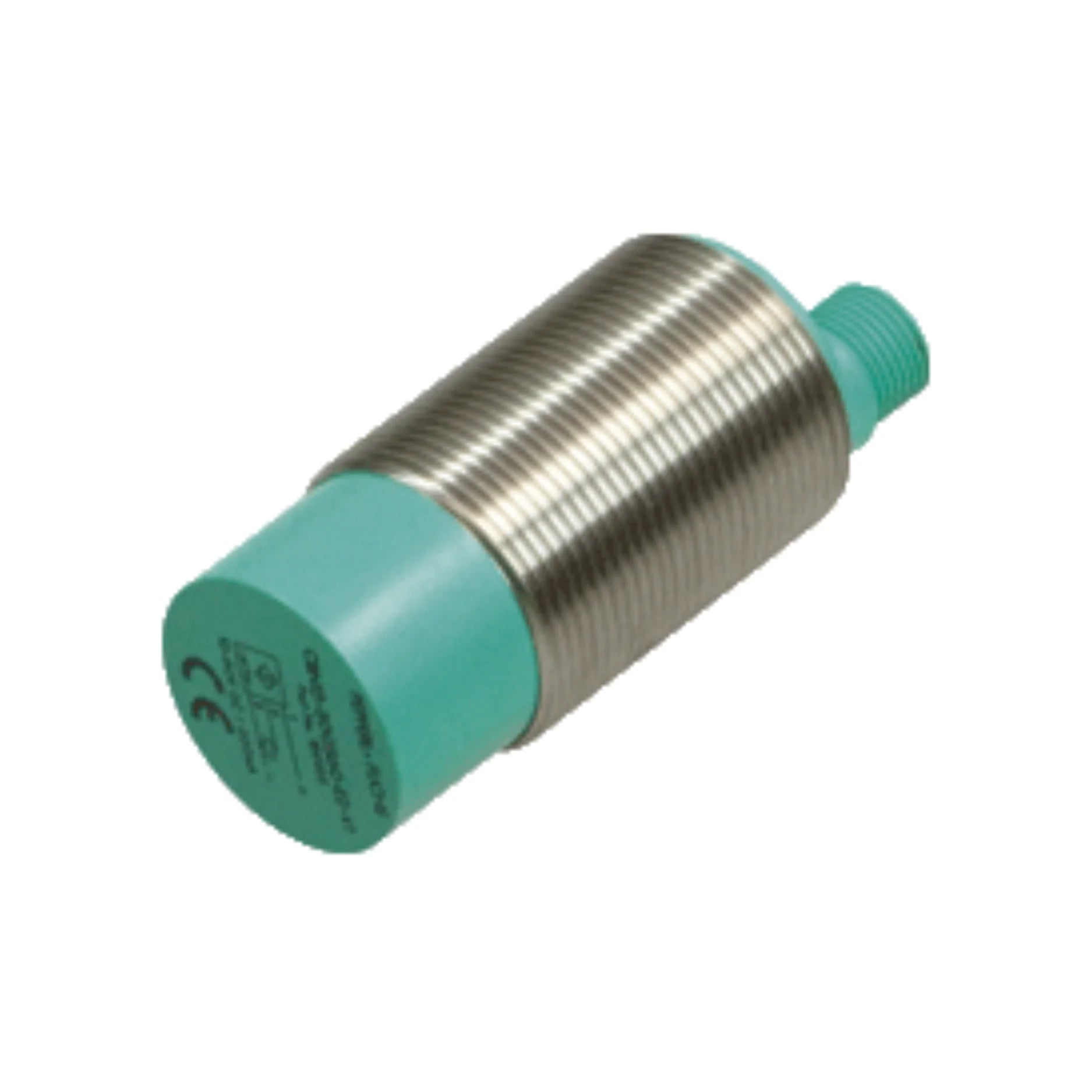

Pepperl+Fuchs CCN15-30GS60-E2-V1

Overview

The Pepperl+Fuchs CCN15-30GS60-E2-V1 is an advanced M30 capacitive proximity sensor engineered for the most demanding industrial automation tasks. This high-performance sensor delivers unparalleled accuracy and reliability in detecting a diverse array of materials, from granular solids to viscous liquids. Boasting a substantial 15 mm sensing distance and designed for non-flush mounting, its robust M30 stainless steel housing ensures exceptional durability in even the harshest operational environments. With the CCN15-30GS60-E2-V1, precise and consistent material detection is not just a feature, but a guarantee.

Key Features

• Sensing Distance: Generous 15 mm rated operating distance for versatile applications.
• Output Type: Reliable PNP Normally Open (NO) output for seamless integration into control systems.
• Mounting: Non-flush (non-embeddable) installation provides flexible placement options.
• Housing: Extremely durable M30 threaded stainless steel (1.4305 / AISI 303) construction for extended operational life.
• Connection: Standard M12 x 1 connector, 4-pin, ensuring secure and straightforward electrical hook-up.
• Operating Voltage: Wide operating voltage range of 10 to 60 V DC for broad compatibility.
• Switching Frequency: High switching frequency of up to 10 Hz for rapid detection.
• Protection Rating: Superior IP67 degree of protection, guarding against dust ingress and temporary immersion in water.
• Operating Temperature: Resilient performance across an operating temperature range of -25°C to +70°C (-13°F to +158°F).
• Sensitivity Adjustment: Integrated potentiometer allows for precise, fine-tuned adjustment of the detection range to meet specific application requirements.
• Indicator: Highly visible yellow LED provides clear and immediate indication of the switching status.

Technical Specifications

• Model Number: CCN15-30GS60-E2-V1
• Series: Standard Series
• Switching Function: Normally Open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 15 mm
• Assured Operating Distance (sa): 0 to 12.1 mm
• Operating Voltage (UB): 10 to 60 V DC
• Switching Frequency (f): 0 to 10 Hz
• Hysteresis (H): Typically 5%
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 2.8 V
• Operating Current (IL): 0 to 200 mA
• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C
• No-Load Supply Current (I0): ≤ 20 mA
• Time Delay Before Availability (tv): ≤ 50 ms
• Switching State Indicator: Yellow LED
• Connection Type: M12 x 1 connector, 4-pin
• Housing Material: Stainless steel 1.4305 / AISI 303
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Dimensions: Length: 60 mm, Diameter: 30 mm
• Tightening Torque: ≤ 10 Nm
• Standards Compliance: EN IEC 60947-5-2
• Approvals: cULus Listed (General Purpose), CCC Certified

Applications

• Industrial Automation: Essential for precise detection of a wide variety of materials, including both solids and liquids, within complex production lines.
• Material Handling: Crucial for accurately monitoring and controlling the levels of granular or powdered substances in hoppers, silos, and other storage containers.
• Packaging Machinery: Ensures the correct presence and precise positioning of packaging materials, enhancing efficiency and reducing errors in automated packaging processes.
• Agricultural Equipment: Ideal for sensing and managing grain or feed levels in large storage bins, contributing to optimized agricultural operations.

Why Choose This Model?

The Pepperl+Fuchs CCN15-30GS60-E2-V1 stands out as a superior choice for several compelling reasons. Its ability to perform versatile detection of both solid and liquid materials makes it incredibly adaptable to diverse industrial challenges. With the integrated potentiometer, you gain the power of adjustable sensitivity, allowing for unparalleled fine-tuning to meet your exact application specifications. Built with a robust stainless steel housing, this sensor is designed to withstand the rigors of harsh industrial environments, promising longevity and consistent performance. Benefit from reliable performance with its consistent 15 mm sensing range and a rapid switching frequency of up to 10 Hz ensuring no detection goes amiss. Furthermore, its easy integration, facilitated by the standard M12 connector, ensures quick and secure installation, minimizing downtime and maximizing operational efficiency.

Order Now

The Pepperl+Fuchs CCN15-30GS60-E2-V1 is available for immediate shipment to streamline your industrial processes.
