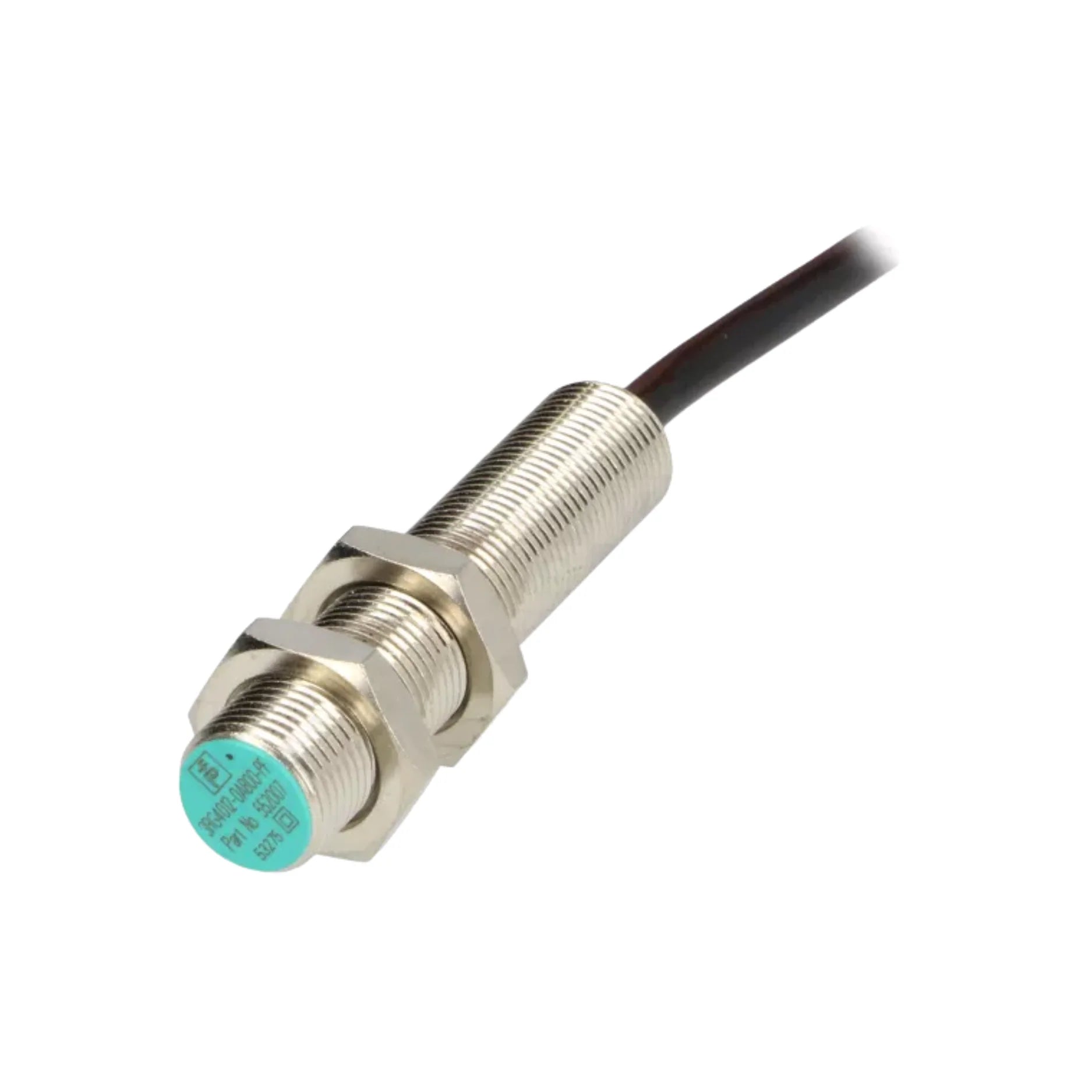

Pepperl+Fuchs 3RG4012-0AB00

Overview

The Pepperl+Fuchs 3RG4012-0AB00 is a high-performance inductive proximity sensor engineered for precision and durability in demanding industrial environments. This M12 cylindrical sensor offers a reliable 4 mm flush sensing distance, ensuring accurate detection of metallic objects without protrusion. Its versatile PNP (Normally Open) output and 3-wire DC configuration simplify integration into various control systems, making it an ideal choice for a wide spectrum of automation tasks. Built with a robust nickel-plated brass housing and boasting an IP67 protection rating, the 3RG4012-0AB00 is designed to withstand harsh operating conditions, providing consistent and long-lasting performance. Experience enhanced operational efficiency and reduced downtime with this trusted solution from Pepperl+Fuchs.

Key Features

• Precise Sensing: 4 mm flush mount sensing distance for accurate, non-contact metal detection.
• PNP Normally Open Output: Ensures reliable signal transmission compatible with common industrial control circuits.
• DC 3-Wire Configuration: Simplifies wiring and integration into existing systems.
• Wide Operating Voltage: Compatible with 10–30 VDC power supplies, offering flexibility.
• Rugged M12 Housing: Durable nickel-plated brass construction provides excellent mechanical protection.
• IP67 Protection: Fully protected against dust ingress and temporary immersion in water, suitable for harsh environments.
• High Switching Frequency: Up to 2,000 Hz, ideal for sensing rapidly moving objects.
• Broad Temperature Range: Operates reliably from -25°C to +70°C.
• Visual Status Indicator: Integrated LED for convenient monitoring of switching status.
• Pre-wired Connection: Comes with a pre-wired 2-meter PVC cable for quick and easy installation.

Technical Specifications

• Model Number: 3RG4012-0AB00
• Sensor Type: Inductive proximity sensor
• Installation Type: Flush
• Rated Operating Distance: 4 mm
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10-30 VDC
• Voltage Drop: ≤ 2.5 V
• Maximum Load Current: 200 mA
• No-load Current Consumption: ≤ 10 mA
• Switching Frequency: 0-2000 Hz
• Short-Circuit Protection: Yes, pulsed
• Reverse Polarity Protection: Yes
• Housing Material: Nickel-plated brass
• Housing Size: M12 x 1
• Connection Type: Pre-wired 2 m PVC cable
• Protection Class: IP67
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• LED Indicator: Yellow LED for switching status
• Cable Length: 2 meters
• Approximate Weight: 50 g

Applications

The Pepperl+Fuchs 3RG4012-0AB00 inductive sensor is incredibly versatile, making it an essential component across numerous industrial applications:

• Automated Production Lines: Precisely detecting the presence or absence of metallic parts, ensuring smooth workflow.
• Material Handling Systems: Monitoring object positions on conveyor belts, sorting systems, and automated guided vehicles (AGVs).
• Robotics: Providing critical position feedback for robotic arms and end-effectors in confined spaces.
• Packaging Machinery: Verifying component placement and package integrity with reliable sensing.
• Machine Tooling: Controlling tool position and ensuring safe operation in CNC and other machining equipment.
• OEM Equipment Integration: Seamlessly integrates with Programmable Logic Controllers (PLCs) and other control systems in custom machinery designs.

Why Choose This Model?

The Pepperl+Fuchs 3RG4012-0AB00 stands out as a superior choice for your industrial sensing needs due to its exceptional combination of features and benefits:

• Unwavering Reliability: Enjoy consistent 4 mm flush sensing, crucial for precise operation and minimizing false detections in a standard M12 form factor.
• Simplified Integration: The 3-wire DC connection and PNP NO output ensure straightforward electrical hook-up and compatibility with most modern control systems, reducing installation time and complexity.
• Built for Tough Environments: With its durable nickel-plated brass housing and IP67 protection, this sensor is engineered to perform flawlessly even in challenging industrial settings that involve dust, moisture, and occasional splashes.
• High-Speed Performance: A rapid switching frequency of up to 2,000 Hz allows for accurate detection in applications with fast-moving targets, maintaining operational efficiency.
• Trusted Quality: Benefit from the renowned engineering and quality assurance of Pepperl+Fuchs, a global leader in industrial sensor technology, ensuring a long product lifespan and dependable operation.
• Cost-Effective Solution: Its robust design and high reliability translate to fewer replacements and less maintenance, offering excellent long-term value.

Order Now

Elevate your automation processes with the precision and reliability of the Pepperl+Fuchs 3RG4012-0AB00 inductive sensor. This essential component is readily available and ships worldwide, ensuring you can quickly implement a high-quality sensing solution. Don't compromise on performance – invest in the proven technology of Pepperl+Fuchs today.
