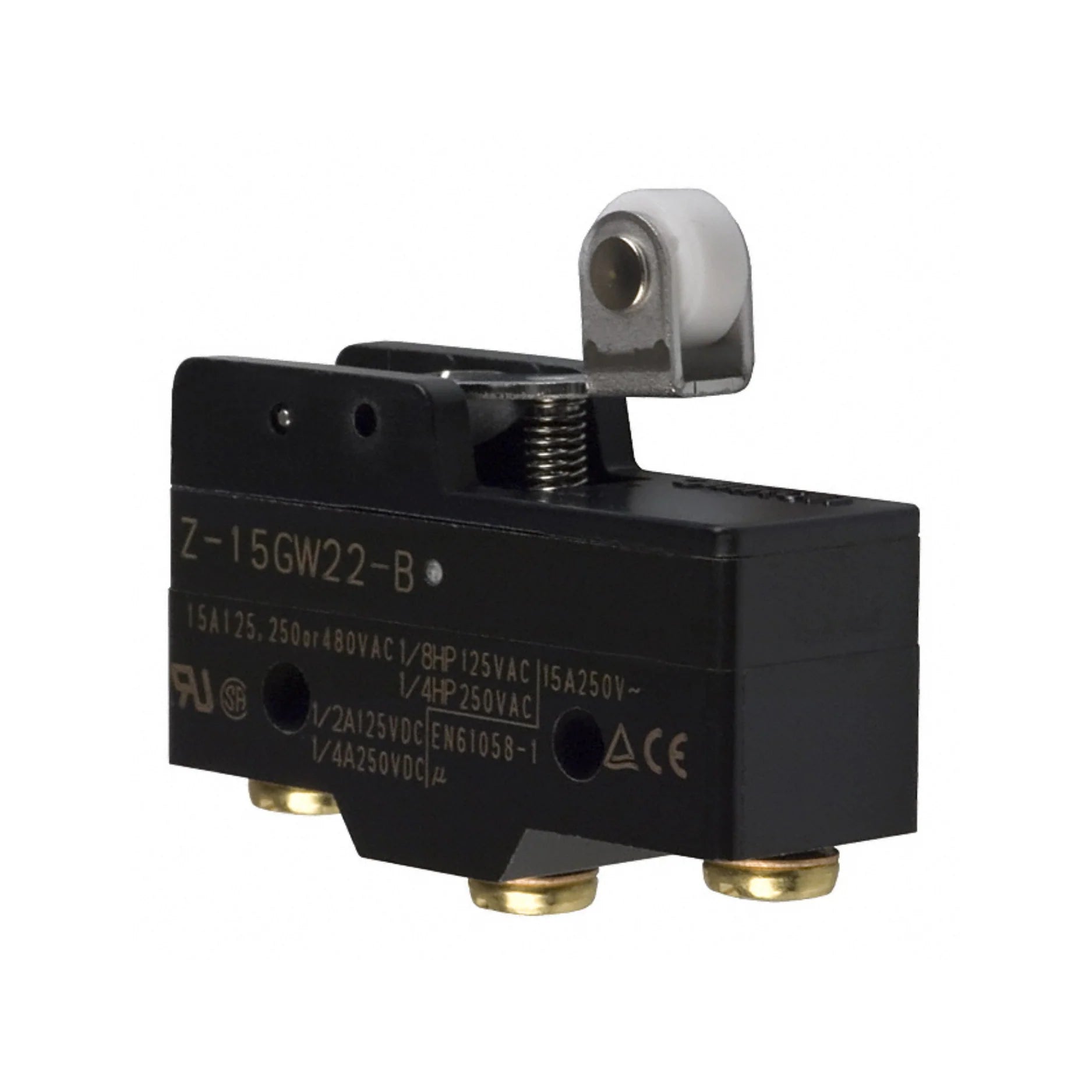

Omron Z-15GW22-B

Overview

The Omron Z-15GW22-B is a meticulously engineered, general-purpose basic switch designed to deliver unparalleled precision and unwavering reliability across diverse industrial automation environments. This robust component features a responsive short hinge roller lever actuator and versatile SPDT (Single-Pole, Double-Throw) contacts, making it capable of managing substantial electrical loads. With a formidable current rating of up to 15A at 125VAC and 6A at 30VDC, the Z-15GW22-B is an optimal choice for critical control systems requiring dependable and accurate switching operations. Its durable construction and high-performance specifications ensure consistent functionality, even in the most demanding operational settings.

Key Features

• High Current Capacity: Expertly designed to accommodate significant electrical demands, supporting 15A at 125VAC and 6A at 30VDC.
• Responsive Actuator Type: Equipped with a short hinge roller lever, ensuring precise and immediate actuation for critical control tasks.
• Versatile Contact Configuration: Features SPDT contacts, providing flexible circuit control options for a wide array of applications.
• Secure Termination Style: Incorporates robust screw terminals, facilitating secure, straightforward, and reliable wiring connections.
• Optimized Operating Force: Requires an operating force of 1.57 N (160 gf), guaranteeing consistent and dependable activation.
• Effortless Mounting: Specifically engineered for chassis mount installation, allowing for seamless and efficient integration into various industrial equipment and systems.
• Built for Demanding Environments: Offers an IP00 ingress protection rating and operates reliably across a wide temperature range of -25°C to 80°C.

Technical Specifications

• Model Number: Z-15GW22-B
• Contact Form: SPDT (Single-Pole, Double-Throw)
• Actuator Type: Short hinge roller lever
• Current Rating:
  • AC: 15A at 125V
  • DC: 6A at 30V
• Voltage Rating:
  • AC: 125V
  • DC: 30V
• Operating Force: 1.57 N (160 gf)
• Release Force: 0.41 N (42 gf)
• Operating Position: 30.2 mm
• Termination Style: Screw terminals
• Mounting Type: Chassis mount
• Ingress Protection: IP00
• Operating Temperature Range: -25°C to 80°C

Applications

The Omron Z-15GW22-B basic switch is an indispensable component across a multitude of industrial and commercial applications due to its precision and reliability:

• Industrial Automation: Provides highly reliable switching capabilities within complex control panels, automated assembly lines, and heavy machinery, ensuring seamless operation.
• Conveyor Systems: Essential for precise control and material handling processes, enabling efficient and error-free movement of goods.
• Packaging Equipment: Facilitates accurate and consistent operation in automated packaging lines, critical for maintaining product quality and throughput.
• Elevator Controls: Plays a vital role in the safe, efficient, and reliable functioning of elevator systems, contributing to passenger safety and operational integrity.
• HVAC Systems: Supports critical control mechanisms in heating, ventilation, and air conditioning equipment, enhancing climate control efficiency and system longevity.
• Safety Interlocks: Ideal for use in safety circuit applications where dependable position sensing is crucial for preventing accidents.

Why Choose This Model?

The Omron Z-15GW22-B stands out as a superior choice for discerning engineers and system integrators for several compelling reasons:

• Unwavering Reliable Performance: Meticulously engineered by Omron, a leader in industrial components, this switch guarantees high precision and exceptional repeatability, even in the most challenging and demanding industrial environments.
• Broad Versatile Application: Its robust design and versatile specifications make it perfectly suited for an extensive array of industrial and commercial applications, providing a single solution for diverse switching needs.
• Exceptional Durable Construction: Built with high-quality materials and stringent manufacturing processes, the Z-15GW22-B is designed to withstand rigorous daily use, ensuring an extended service life and minimizing replacement costs.
• Streamlined Easy Installation: The thoughtful integration of secure screw terminals and a convenient chassis mount design significantly simplifies the installation process, reducing setup time and labor costs.
• Global Recognised Brand: Omron is synonymous with innovation and quality in the industrial sector, providing peace of mind with every purchase.

Order Now

Elevate the reliability and precision of your industrial systems with the Omron Z-15GW22-B Basic Switch. This essential component is engineered for peak performance and is readily available for immediate shipping worldwide. Experience the difference that Omron's quality and precision can bring to your operations. Secure your Z-15GW22-B today and ensure the smooth, efficient, and safe functioning of your critical machinery and control systems.
