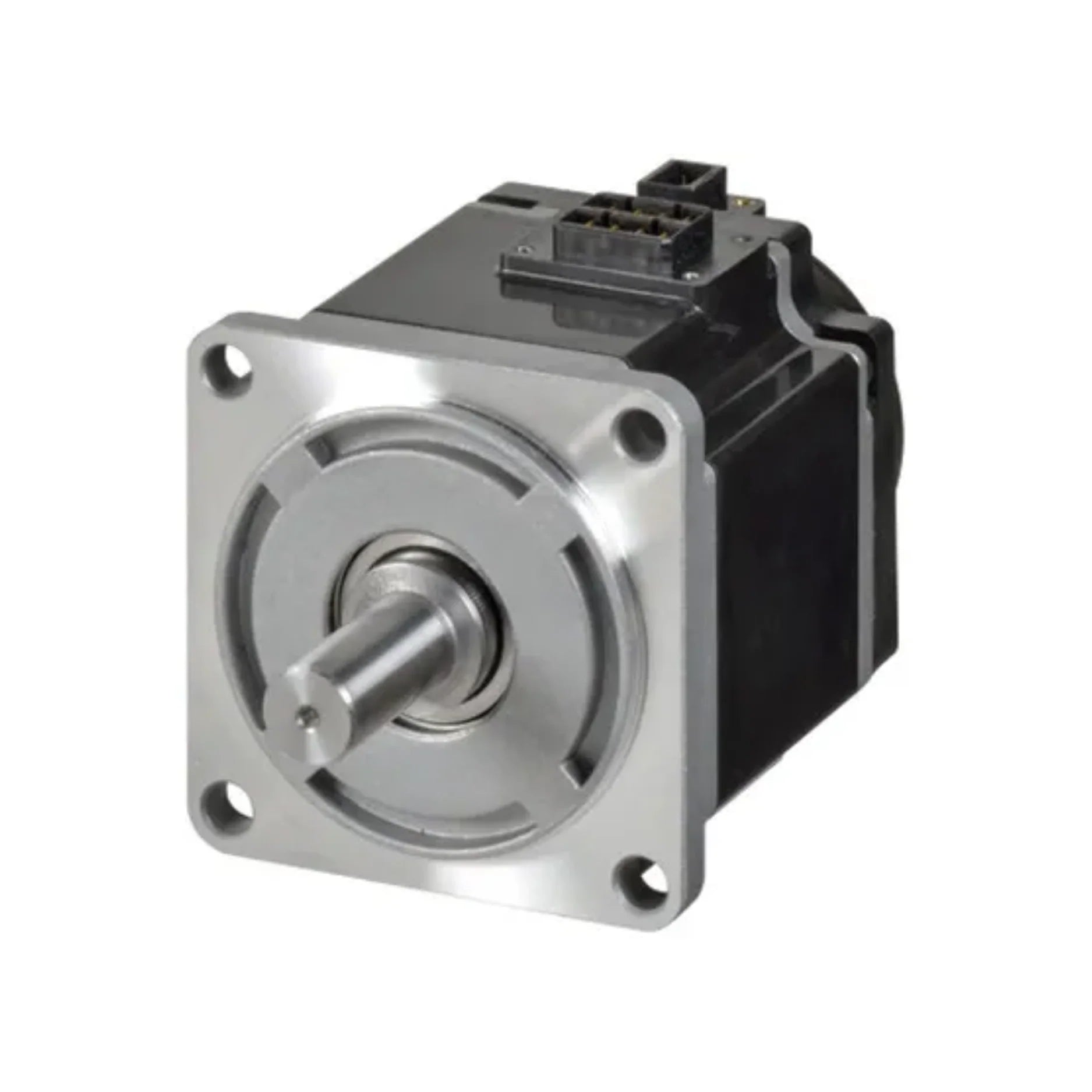

Omron R88M-1M40030T-S2 400W AC servo motor with 3000 RPM speed, 1.27 Nm torque, and 23-bit battery-free absolute encoder for precise motion control.

Omron R88M-1M40030T-S2 | 400W AC Servo Motor

$474.00
$474.00
Skip to product information
Omron R88M-1M40030T-S2 400W AC servo motor with 3000 RPM speed, 1.27 Nm torque, and 23-bit battery-free absolute encoder for precise motion control.
  • Omron R88M-1M40030T-S2 400W AC servo motor with 3000 RPM speed, 1.27 Nm torque, and 23-bit battery-free absolute encoder for precise motion control.
  • Omron R88M-1M40030T-S2 400W AC servo motor with 3000 RPM speed, 1.27 Nm torque, and 23-bit battery-free absolute encoder for precise motion control.
Omron R88M-1M40030T-S2 | 400W AC Servo Motor

Omron R88M-1M40030T-S2 | 400W AC Servo Motor

$474.00
$474.00

Overview

The Omron R88M-1M40030T-S2 is a state-of-the-art 400W AC servo motor meticulously engineered to meet the rigorous demands of modern industrial automation. Operating flawlessly at 230V, this high-performance motor delivers a robust 3000 RPM rated speed and a potent 1.27 Nm rated torque. Its standout feature is the integrated 23-bit battery-free absolute encoder, providing exceptional feedback accuracy and eliminating the need for costly and time-consuming battery maintenance. This innovative design ensures continuous, reliable operation, making it an ideal solution for applications where precision and uptime are paramount. The R88M-1M40030T-S2’s compact form factor and lightweight construction belie its powerful capabilities, offering seamless integration into a wide array of machinery without compromising on performance or durability.

Key Features

  • High-Performance Output: Delivers a substantial 400W of continuous power.
  • Optimized Speed: Achieves a rated speed of 3000 RPM for dynamic operations.
  • Precision Torque: Provides a consistent 1.27 Nm rated torque and an impressive 4.5 Nm peak torque.
  • Advanced Encoder Technology: Features a 23-bit battery-free absolute encoder for superior accuracy and zero maintenance.
  • Electrical Compatibility: Designed for 230V AC single-phase power supply.
  • Compact Design: A 60 mm square flange and compact dimensions facilitate easy installation.
  • Robust Shaft: Equipped with a 14 mm diameter shaft, complete with key and tap for secure coupling.
  • Lightweight Construction: Weighs approximately 1.4 kg, aiding in system integration and reduced inertia.
  • Exceptional Precision: Guarantees highly accurate positioning and precise speed control across diverse applications.
  • Maintenance-Free Operation: The innovative encoder design eliminates the need for battery replacements, ensuring long-term reliability.

Technical Specifications

  • Model Number: R88M-1M40030T-S2
  • Series: 1S Series
  • Rated Output: 0.4 kW
  • Rated Speed: 3000 r/min
  • Rated Torque: 1.27 Nm
  • Peak Torque: 4.5 Nm
  • Encoder Type: Absolute without battery
  • Encoder Resolution: 23 Bit
  • Motor with Brake: No
  • Motor with Oil Seal: No
  • Flange Size (Square): 60 mm
  • Shaft Diameter: 14 mm
  • Shaft with Key: Yes
  • Shaft with Tap: Yes
  • Product Weight (Unpacked): 1.4 kg

Applications

The Omron R88M-1M40030T-S2 AC servo motor is a versatile component, indispensable in a multitude of industrial sectors demanding high precision and reliable control:

  • Robotics: Powers sophisticated robotic arms and assists automated guided vehicles (AGVs) with highly accurate movement and positioning.
  • CNC Machinery: Essential for precise spindle and axis control in high-performance milling, turning, and grinding machines, enabling intricate manufacturing processes.
  • Packaging Equipment: Ensures seamless and synchronized motion in critical packaging applications such as conveyors, fillers, and labelers, optimizing production lines.
  • Semiconductor Manufacturing: Facilitates delicate and exact wafer handling, processing, and positioning within cleanroom environments, crucial for microchip production.
  • Printing Presses: Provides consistent speed and precise position control, vital for achieving high-quality output in modern printing applications.

Why Choose This Model?

Opting for the Omron R88M-1M40030T-S2 means investing in superior performance and long-term reliability for your industrial automation needs. This model stands out due to its cutting-edge 23-bit battery-free absolute encoder, which not only delivers unparalleled accuracy in positioning and speed but also eliminates the recurring costs and downtime associated with battery replacements. Its compact 60 mm flange size and remarkably lightweight design (1.4 kg) significantly simplify integration into existing or new systems, reducing installation complexities and footprint. Engineered for robust performance, it consistently provides the necessary torque and speed for even the most demanding industrial applications, ensuring operational efficiency and productivity. Furthermore, its seamless compatibility with Omron’s 1S series servo drives guarantees optimal system performance, offering a cohesive and high-functioning motion control solution. Choose the R88M-1M40030T-S2 for a future-proof, high-precision, and low-maintenance drive solution.

Order Now

Elevate your industrial automation capabilities with the Omron R88M-1M40030T-S2 400W AC Servo Motor. This high-performance component is available for immediate shipping worldwide, ensuring rapid delivery to support your urgent operational requirements. Explore our complete range by returning to the Omron R88M AC Servo Motor Collection or navigate to the Omron Main Category to discover more innovative solutions for your diverse automation needs.
