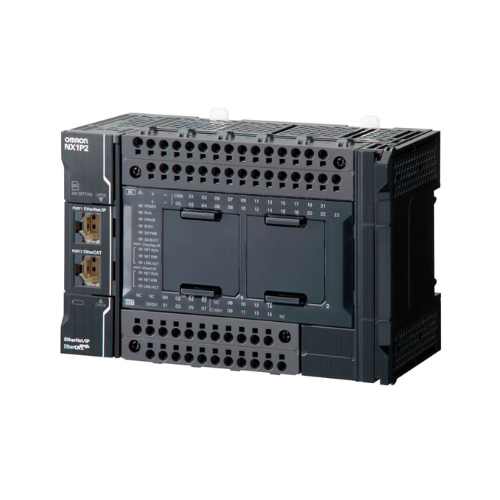

Omron NX1P2-1140DT1

Overview

The Omron NX1P2-1140DT1 is a state-of-the-art compact Machine Automation Controller meticulously engineered to deliver unparalleled performance within a space-saving footprint. This robust controller seamlessly integrates 40 built-in I/O points, comprising 24 digital inputs and 16 PNP transistor outputs, offering direct connectivity to a wide array of field devices. Its advanced communication capabilities, including EtherCAT and EtherNet/IP, facilitate effortless integration into the most sophisticated industrial automation systems. Boasting a substantial 1.5 MB program memory and support for up to 8 axes of motion control, the NX1P2-1140DT1 stands as an ideal solution for applications demanding exceptional precision and operational efficiency.

Key Features

• Integrated I/O: Features 24 digital inputs (PNP/NPN) and 16 digital outputs (PNP) for streamlined direct connection to vital field devices.
• Advanced Motion Control: Supports up to 4 synchronous axes and 4 point-to-point axes, all managed efficiently via EtherCAT for superior motion precision.
• Versatile Communication Interfaces:
  • EtherCAT Master: Enables connection to up to 16 EtherCAT nodes, ensuring high-speed and reliable field device communication.
  • EtherNet/IP & Ethernet TCP/IP: Provides dual Ethernet ports for seamless network integration and robust data exchange across your enterprise.
• Expandable Architecture: Designed for future-proofing, accommodating up to 8 expansion units and 16 remote I/O nodes, ensuring unparalleled system scalability.
• High-Speed Processing: Achieves a primary task cycle time of a mere 2 ms, guaranteeing ultra-responsive and critical control operations.
• Generous Memory Capacities: Equipped with a 1.5 MB program memory and 2 MB variables memory, empowering the execution of complex and sophisticated applications.
• Optimized Compact Design: With dimensions of 148 mm (W) × 100 mm (H) × 71 mm (D), this controller is engineered to maximize control panel space efficiency.
• Flexible DIN Rail Mounting: Simplifies installation and integration into existing industrial setups.

Technical Specifications

• Model Number: NX1P2-1140DT1
• Program Memory: 1.5 MB
• Variables Memory: 2 MB
• Digital Inputs: 24 (PNP/NPN)
• Digital Outputs: 16 (PNP)
• Motion Control Capacity:
  • Synchronous Axes: Up to 4
  • Point-to-Point Axes: Up to 4
• Communication Ports:
  • EtherCAT Master: Supports up to 16 nodes
  • EtherNet/IP and Ethernet TCP/IP: Dual Ethernet ports
• Expansion Capacity:
  • Expansion Units: Up to 8
  • Remote I/O Nodes: Up to 16
• Primary Task Cycle Time: 2 ms
• Supply Voltage: 20.4 to 28.8 VDC
• Power Consumption: Varies based on configuration
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 70°C
• Operating Humidity: 10% to 95% (non-condensing)
• Dimensions: 148 mm (W) × 100 mm (H) × 71 mm (D)
• Weight: Approximately 660 g
• Certifications: CE, cULus, KC

Applications

• Precision Packaging Machinery: Delivers highly synchronized and precise control for complex operations within modern packaging lines.
• Efficient Material Handling: Expertly manages conveyor systems and sorting mechanisms with its integrated motion and I/O capabilities.
• Automated Assembly Processes: Coordinates intricate assembly sequences with exceptional speed and accuracy, enhancing production throughput.
• Advanced Inspection Systems: Facilitates seamless interfacing with critical sensors and actuators for real-time quality control and detailed data collection.

Why Choose This Model?

The Omron NX1P2-1140DT1 offers an unparalleled all-in-one solution, consolidating advanced controller functions, integrated I/O, and sophisticated networking capabilities into a single, compact unit. This significantly reduces system complexity and simplifies installation. Its high-performance motion control features support up to 8 axes, drastically enhancing machine precision and overall efficiency, which is crucial for demanding industrial environments. By opting for the NX1P2-1140DT1, you are investing in a future-ready automation controller that guarantees reliability, scalability, and superior operational performance, empowering your machinery to achieve new levels of productivity and control.

Order Now

Elevate your industrial automation capabilities with the Omron NX1P2-1140DT1. Contact our sales team today to learn more about how this advanced machine automation controller can optimize your operations and streamline your processes. Get a quote and ensure your systems benefit from leading-edge control technology.
