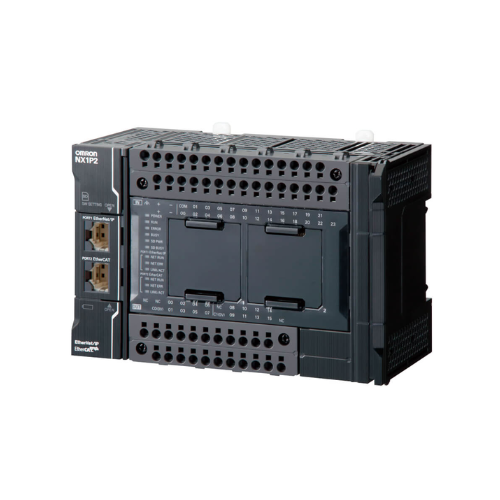

Omron NX1P2-1040DT

Overview

The Omron NX1P2-1040DT stands as a pinnacle of compact yet powerful machine control within the Omron PLC lineup. Engineered for optimal performance in small to mid-sized automation applications, this Programmable Logic Controller (PLC) integrates 40 dedicated I/O points, robust built-in Ethernet connectivity, and sophisticated motion control capabilities. It is the ideal solution for enterprises seeking to achieve high-speed processing, precise motion synchronization, and seamless communication across a spectrum of industrial environments, making it a cornerstone for modern automation.

Key Features

• 40 Integrated I/O Points: A comprehensive set comprising 24 Digital Inputs (24V DC) and 16 Digital Outputs (Transistor, Sink Type) ensures versatile connectivity for various sensors and actuators.
• Built-in Ethernet Port: Facilitates advanced network communication through support for both EtherNet/IP & Modbus-TCP protocols, enabling effortless integration into existing industrial networks.
• Advanced Motion Control: Provides robust support for synchronized multi-axis motion, capable of precisely controlling up to 4 axes, essential for sophisticated machinery.
• Exceptional Processing Speed: Designed for rapid data execution, making it perfectly suited for real-time control applications where timing and precision are critical.
• Seamless PLC Expansion: Offers unparalleled flexibility through compatibility with Omron NX I/O and EtherCAT modules, allowing for scalable and future-proof automation solutions.
• Compact & Space-Saving Design: Its optimized footprint makes it an excellent choice for installations where space is at a premium, particularly in machine automation and robotics.
• Generous Program Capacity: Features a substantial 2 MB memory, providing ample space for complex automation logic and demanding control algorithms.

Technical Specifications

• Model: NX1P2-1040DT
• I/O Configuration:
  • Digital Inputs: 24 (24V DC)
  • Digital Outputs: 16 (Transistor Sink)
• Communication Interfaces:
  • 1x Ethernet Port (EtherNet/IP, Modbus-TCP)
  • 1x RS-232 Serial Port
  • EtherCAT Port for Motion Control (Optional)
• Pulse Output: Up to 4 axes (100 kHz max)
• Power Supply: 24V DC
• Mounting Type: DIN rail
• Ambient Conditions:
  • Operating Temperature: 0 to 55°C
  • Storage Temperature: -25 to 70°C
  • Humidity: 10% to 90% (non-condensing)
  • Vibration Resistance: 5-9 Hz, 3.5 mm amplitude

Applications

• Machine Automation: Delivers precise and reliable control for a wide array of small-to-medium-sized machines, optimizing their operational efficiency and output.
• Industrial Process Control: Ensures seamless integration and robust control within complex automation systems, enhancing overall process stability and performance.
• Material Handling & Robotics: Specifically optimized for intricate motion control and real-time synchronization tasks, vital for advanced material handling and robotic applications.
• IoT & Smart Factory Integration: Leveraging its advanced Ethernet and EtherCAT connectivity, this PLC is primed for integration into modern IoT and Smart Factory ecosystems, facilitating data exchange and intelligent automation.

Why Choose This Model?

The Omron NX1P2-1040DT stands out as an exceptional choice for modern industrial automation due to its strategic blend of compactness, robust features, and expandability. This model not only offers built-in Ethernet for superior connectivity and data management but also integrates advanced motion control for precision-dependent applications. Its high-speed processing capabilities guarantee real-time control, which is indispensable in fast-paced manufacturing environments. Coupled with seamless expandability through the Omron NX I/O system and EtherCAT modules, and its readiness for IoT-enabled smart manufacturing, the NX1P2-1040DT represents a future-proof investment. It is engineered to meet the increasing demands of efficiency, flexibility, and connectivity, making it the perfect choice for professionals seeking reliable and advanced control solutions from Omron.

Order Now

Ready to upgrade your industrial automation capabilities? Order the Omron NX1P2-1040DT today and experience the difference superior control makes. Benefit from fast shipping and worldwide delivery options to get your operations running smoothly without delay. While you're here, make sure to return to the Omron NX-Series I/O System collection to explore complementary components. Discover our full range of Omron PLCs | Programmable Logic Controllers to find comprehensive and reliable solutions tailored for machine control, data monitoring, and diverse automation applications.
