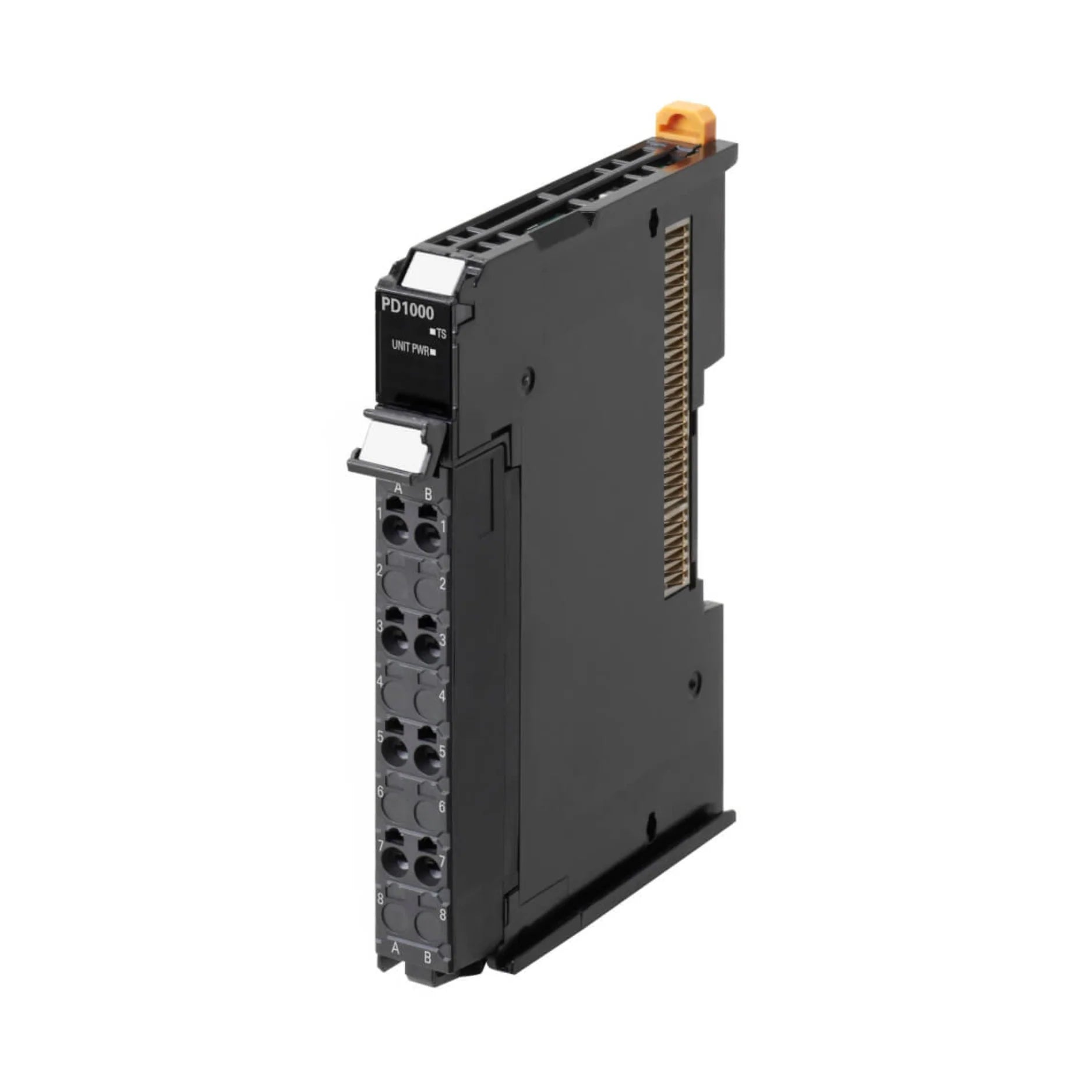

Omron NX-PD1000

Overview

The Omron NX-PD1000 is an indispensable power supply module meticulously engineered to seamlessly integrate with and provide critical additional power to Omron NX Series systems. In modern industrial automation, ensuring a stable and sufficient power supply is paramount, especially as control systems expand and demand grows. This compact yet powerful module addresses precisely this need, acting as a reliable booster when the primary power source can no longer meet the comprehensive energy requirements of your NX units.

With its robust 24V DC input, the NX-PD1000 efficiently converts and delivers a stable 10W output, guaranteeing continuous and uninterrupted operation of your crucial NX Series components. Its intelligent design prioritizes ease of installation and space efficiency within control cabinets. Boasting an ultra-slim 12mm width and featuring advanced screwless push-in terminal blocks, this module significantly reduces wiring time, simplifies maintenance, and optimizes panel real estate, making it an ideal choice for high-density applications.

Key Features

• Optimized Power Delivery: Provides a dedicated 10W output for the NX Bus power supply, ensuring your NX units receive consistent and stable power.
• Wide Input Voltage Range: Operates reliably within a 20.4 to 28.8 VDC range, accommodating typical industrial DC power fluctuations.
• High Efficiency: Achieves a 70% power conversion efficiency, minimizing energy waste and heat generation within your system.
• Ultra-Compact Footprint: Its remarkably slim 12 mm width allows for maximum panel space utilization, crucial in crowded industrial environments.
• Effortless Connectivity: Equipped with an 8-terminal screwless push-in terminal block for rapid, secure, and tool-free wiring.
• Versatile Mounting: Designed for standard DIN rail mounting, ensuring quick and secure installation in various control setups.
• Non-Isolated Design: Perfectly suited for applications where electrical isolation is not a design requirement, streamlining system integration.

Technical Specifications

• Model Number: NX-PD1000
• Series: NX Series
• Power Supply Voltage: 24V DC (operating range: 20.4 to 28.8 VDC)
• NX Bus Power Supply Capacity: 10 W max
• Power Conversion Efficiency: 70%
• Unwired Terminal Current Capacity: 4 A max (including through-wiring)
• External Connection Terminals: Screwless push-in terminal block (8 terminals)
• Dimensions (W × H × D): 12 mm × 100 mm × 71 mm
• Weight: Approximately 65 g
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C
• Operating Humidity: 10% to 95% (non-condensing)
• Mounting Method: DIN rail
• Isolation Method: Non-isolated
• Certifications: CE, cULus, KC, NK, Lloyd

Applications

• Industrial Automation Projects: Seamlessly integrate into complex manufacturing lines to provide essential supplementary power for expanding NX Series I/O and control systems.
• Precision Process Control: Ensures the unwavering stability and performance of critical control processes by guaranteeing sufficient power delivery to sensitive NX components, even under demanding loads.
• Advanced Machine Automation: Facilitates the robust expansion of machine control infrastructure, enabling easy accommodation of additional NX units without compromising power integrity or overall system reliability.
• Building Management Systems: Enhances the scalability and reliability of modern building automation by supplying consistent power to networked NX Series modules.

Why Choose This Model?

The Omron NX-PD1000 stands out as a superior choice for bolstering your Omron NX Series systems for several compelling reasons:

• Guaranteed System Stability: By supplementing your existing power supply, the NX-PD1000 effectively prevents power-related disruptions, ensuring the continuous and reliable operation of your entire NX Series setup, even as system demands fluctuate.
• Maximise Panel Efficiency: Its class-leading 12mm slim design represents a significant advantage in control panel design. This minimal footprint allows you to pack more functionality into less space, optimizing cabinet layouts and reducing overall equipment size.
• Accelerated Installation & Maintenance: The innovative screwless push-in terminal block design dramatically simplifies wiring. This not only reduces initial installation time and labor costs but also makes future maintenance, troubleshooting, and system modifications far quicker and less prone to errors.
• Omron’s Unwavering Reliability: As an Omron product, the NX-PD1000 is built to the highest industrial standards, promising exceptional durability, consistent performance, and a long operational lifespan, reducing downtime and total cost of ownership. It holds crucial certifications like CE and cULus, underscoring its adherence to global safety and quality benchmarks.

Order Now

Elevate the power integrity and expandability of your Omron NX Series system today. The Omron NX-PD1000 Power Supply Module is available for immediate shipping worldwide, ready to integrate seamlessly into your industrial automation, process control, or machine automation applications.

You can also explore our broader selection of Omron NX-Series I/O System components or delve into our comprehensive range of Omron PLCs | Programmable Logic Controllers to discover advanced solutions for sophisticated machine control, real-time data acquisition, and robust automation across diverse industries.
