Omron NX-OD5256

Overview

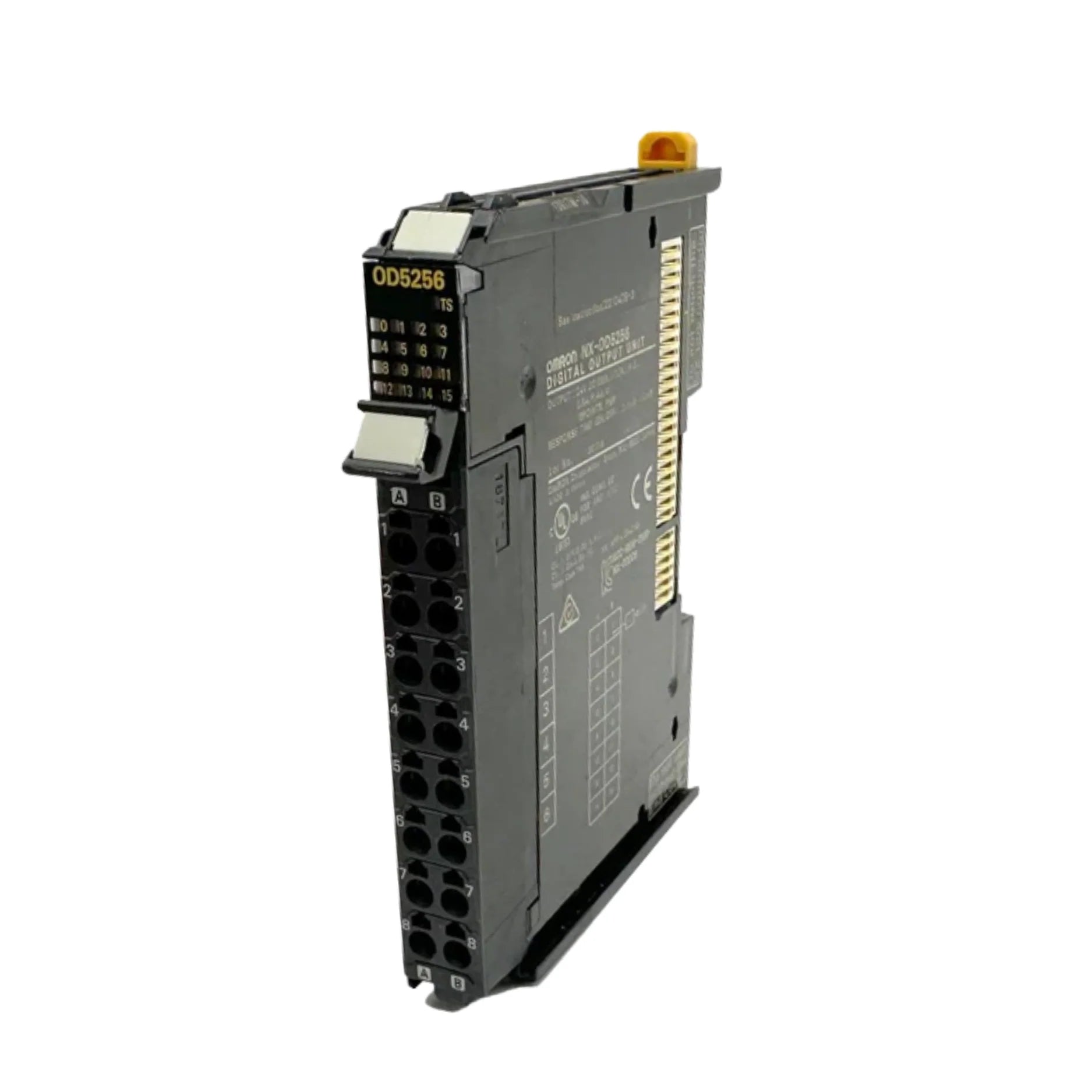

The Omron NX-OD5256 Digital Output Module is engineered to meet the stringent demands of modern industrial automation, providing unparalleled precision and control. This high-performance module delivers 16 reliable PNP (sourcing) outputs, making it an indispensable component for seamlessly integrating and managing various actuators and devices. Operating efficiently at 24 VDC with a robust output current of 0.5 A per channel, the NX-OD5256 ensures stable and responsive operation in even the most challenging environments. Its compact design not only conserves valuable space within control panels but also facilitates a streamlined and organized system architecture.

Key Features

• Output Channels: 16 high-density digital outputs with a PNP (sourcing) configuration, ensuring versatile connectivity.
• Output Voltage: Stable 24 VDC operation, accommodating an operating range of 15 to 28.8 VDC for broad compatibility.
• Output Current: Capable of delivering up to 0.5 A per channel, with a robust total maximum output of 4 A per unit for demanding applications.
• Rapid Response Time: Achieves swift control with an OFF to ON response time of 0.5 ms max and ON to OFF response of 1.0 ms max, minimizing latency.
• Enhanced Protection: Integrated short-circuit protection for each individual output channel, safeguarding against electrical faults and ensuring system longevity.
• Effortless Connection: Features screwless push-in terminals, drastically reducing wiring time and providing secure, vibrated-resistant connections.
• Space-Saving Design: Ultra-compact 12 mm width optimizes panel space, allowing for higher density installations.
• Simplified Mounting: Designed for standard DIN rail mounting, enabling quick and straightforward installation and removal.
• Intuitive Status Indicators: Each output channel is equipped with an LED indicator, offering clear visual feedback on operational status.
• Global Certifications: Compliant with CE, cULus, C-Tick, KC, Lloyd, and NK standards, ensuring reliability and suitability for international deployment.

Technical Specifications

• Model Number: NX-OD5256
• Series: NX
• Output Type: PNP (sourcing)
• Output Voltage Range: 15 to 28.8 VDC
• Output Current: 0.5 A per channel; total maximum of 4 A per unit
• Response Time: OFF to ON: 0.5 ms max; ON to OFF: 1.0 ms max
• Short-Circuit Protection: Yes, integrated for each channel
• Connection Type: Screwless push-in terminals
• Dimensions: 12 mm (W) x 104.5 mm (H) x 80.1 mm (D)
• Weight: Approximately 70 g
• Operating Temperature: 0°C to 55°C
• Protection Rating: IP20

Applications

• Industrial Automation: Expertly controls a wide array of actuators, relays, and various devices within sophisticated automated systems, enhancing productivity and precision.
• Process Control: Manages critical output signals across diverse process control applications, ensuring stable and repeatable operations.
• Machine Control: Drives solenoids, indicator lamps, and other vital output devices in complex machinery operations, contributing to optimal machine performance.
• Robotics: Provides crucial output signals for robotic arms and automated assembly lines, supporting intricate movement and task execution.
• Building Management Systems: Integrates seamlessly to control lighting, HVAC components, and access systems for smart building solutions.

Why Choose This Model?

The Omron NX-OD5256 stands out as a superior choice for several compelling reasons. Its High Channel Density delivers 16 reliable output channels within an exceptionally compact 12 mm module, significantly reducing the footprint required in your control panel while expanding operational capabilities. With Integrated Protection, each output channel benefits from built-in short-circuit protection, guaranteeing enhanced durability and unwavering reliability in demanding industrial settings. Furthermore, Easy Installation is assured through its innovative screwless push-in terminals, drastically minimizing wiring time and establishing secure, maintenance-free connections. Expect nothing less than Reliable Performance from the NX-OD5256, thanks to its fast response times that ensure precise and timely signal processing, crucial for critical automation tasks. This module is not just a component; it's an investment in efficiency, safety, and operational excellence for your industrial applications.

Order Now

Elevate your industrial automation capabilities today with the Omron NX-OD5256 Digital Output Module. This essential component is available for immediate worldwide shipping to optimize your systems without delay.

For more cutting-edge solutions, we invite you to return to the Omron NX-Series I/O System collection, where you can discover a comprehensive range of compatible modules designed for seamless integration.

Additionally, explore our full range of Omron PLCs | Programmable Logic Controllers to find reliable, high-performance solutions for advanced machine control, meticulous data monitoring, and diverse automation applications across various industries.
