Omron NX-EIC202

Overview

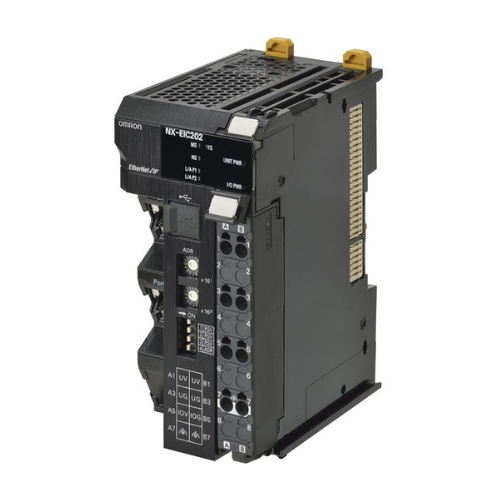

The Omron NX-EIC202 EtherNet/IP Coupler Unit is engineered for precision and seamless integration, enabling robust connectivity for NX-Series I/O modules within EtherNet/IP networks. This high-performance coupler is an essential component for modern industrial automation systems, offering unparalleled scalability and reliability. With support for an impressive 63 NX I/O units, including both standard and high-performance varieties, it provides a flexible foundation for diverse application requirements. Its dual RJ45 ports facilitate advanced network topologies, ensuring redundancy and continuous operation, while its compact design optimizes control panel space without compromising on functionality. The NX-EIC202 is designed to meet the rigorous demands of industrial environments, delivering efficient and dependable I/O integration for critical operations.

Key Features

• Extensive I/O Support: Connect and manage up to 63 NX I/O units, allowing for comprehensive and customized system designs that blend standard and high-performance modules.
• Flexible Network Architectures: Equipped with dual RJ45 ports and integrated Ethernet switch functionality, supporting line, tree, or star network topologies for enhanced network redundancy and adaptability.
• High-Capacity Data Handling: Capable of managing substantial data flows, with support for up to 504 bytes of input and 504 bytes of output data per single coupler unit, ensuring efficient communication.
• Space-Saving Design: Its ultra-slim 46 mm width significantly conserves valuable space within control panels, making it ideal for high-density installations.
• Effortless Wiring: Features screwless push-in connectors that streamline installation, providing quick, secure, and reliable wiring connections.
• Simplified Configuration: A convenient peripheral USB port allows for easy and efficient configuration, diagnostics, and maintenance via the intuitive Sysmac Studio software.
• Integrated Safety Capabilities: Fully compatible with NX safety units, facilitating a unified and consolidated control system for both standard and critical safety I/O.

Technical Specifications

• Model Number: NX-EIC202
• Communication Protocol: EtherNet/IP
• Network Ports: 2 × RJ45 (100BASE-TX)
• Power Supply Voltage: 24 VDC (20.4 to 28.8 VDC)
• Power Consumption: 1.60 W max.
• I/O Power Supply Voltage: 5 to 24 VDC (4.5 to 28.8 VDC)
• Maximum I/O Power Supply Current: 10 A
• NX Unit Power Supply Capacity: 10 W max.
• NX Bus I/O Data Size: Input: 512 bytes max.; Output: 512 bytes max.
• EtherNet/IP I/O Connection Size: Input: 504 bytes max.; Output: 504 bytes max.
• Dimensions (W × H × D): 46 mm × 100 mm × 80 mm
• Weight: Approximately 150 g
• Mounting: DIN rail
• Protection Rating: IP20
• Certifications: CE, cULus, KC

Applications

• Industrial Automation Systems: Integrate a diverse range of Omron NX I/O modules into high-performance EtherNet/IP networks for precise and efficient machine control across various industries.
• Process Control and Monitoring: Enhance the scalability and flexibility of complex process control systems, facilitating superior monitoring and management of industrial operations.
• Integrated Safety Solutions: Develop comprehensive safety systems by seamlessly combining standard and essential safety I/O modules, ensuring robust protection in hazardous environments.
• Distributed Control Systems (DCS): Facilitate advanced remote I/O integration in expansive automation setups, optimizing data exchange and control over geographically dispersed operations.

Why Choose This Model?

The Omron NX-EIC202 stands out as a superior choice for industrial I/O integration due to its exceptional features and robust performance. Its ability to support up to 63 NX I/O modules significantly reduces the need for multiple couplers, streamlining system architecture and lowering overall costs. The dual Ethernet ports provide unparalleled flexibility in network topology, allowing for resilient and redundant configurations that minimize downtime. Configuration and maintenance are simplified through the integrated USB port and compatibility with Sysmac Studio, making setup quick and efficient. Furthermore, its compact footprint ensures optimal use of valuable space within control cabinets, a critical advantage in modern industrial facilities. Engineered to adhere to stringent industrial standards, the NX-EIC202 guarantees reliable and consistent operation, offering a dependable solution for the most demanding automation applications. Choosing the Omron NX-EIC202 means investing in a future-proof, high-performance, and cost-effective I/O integration solution.

Order Now

Elevate your industrial automation capabilities with the Omron NX-EIC202 EtherNet/IP Coupler. This essential piece of hardware is available for immediate shipping worldwide, ensuring that you can quickly implement its advanced features into your current or upcoming projects. Don't miss out on optimizing your control systems with this high-performance coupler. Discover the full potential of Omron's comprehensive range of industrial solutions. Return to the Omron NX-Series I/O System collection to explore complementary modules and expansions. Additionally, explore our full range of Omron PLCs | Programmable Logic Controllers to find a complete suite of reliable solutions for machine control, data monitoring, and diverse automation applications tailored to your industrial needs.
