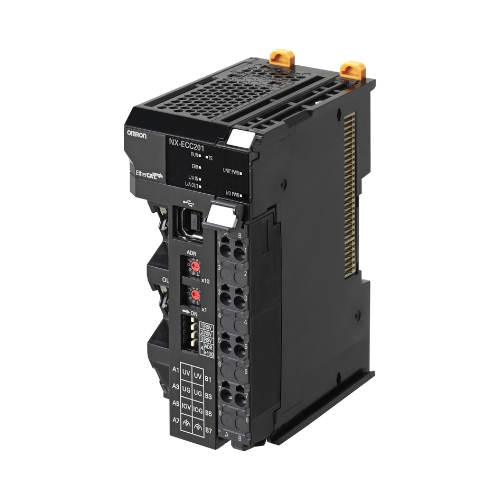

Omron NX-ECC201

Overview

The Omron NX-ECC201 EtherCAT Coupler Unit is a state-of-the-art solution designed to seamlessly integrate Omron NX-series I/O modules into high-performance EtherCAT networks. This critical component ensures rapid, synchronized, and highly efficient data exchange, which is paramount for advanced industrial automation systems. Engineered for real-time control, the NX-ECC201 excels in demanding environments, making it the perfect choice for high-speed motion control, complex process automation, and robust industrial communication applications where precision and reliability are non-negotiable.

By providing a vital link between distributed I/O and the central control system, the NX-ECC201 enhances overall system responsiveness and data integrity. Its design philosophy focuses on maximizing operational efficiency and simplifying network architecture, thereby reducing complexity and improving system uptime. This unit is an indispensable tool for engineers looking to build scalable, high-performance automation solutions.

Key Features

• EtherCAT Connectivity: Leverage the power of EtherCAT for lightning-fast, deterministic, and real-time communication across your industrial network, ensuring optimal performance for critical operations.
• Rapid Data Refresh Cycle: Experience unparalleled synchronization with a data exchange rate as fast as 125 µs, enabling ultra-responsive control and precise timing for demanding applications.
• Modular Expandability: Support extensive system configurations with the ability to connect up to 32 NX-series I/O units per coupler, providing significant flexibility for expansion and adaptation to evolving industrial needs.
• Compact & Space-Saving Design: Optimize valuable cabinet space with a sleek, compact form factor specifically engineered for efficient installation within control panels, without compromising on performance.
• Automatic Configuration: Benefit from a plug-and-play setup that facilitates effortless system integration and minimizes commissioning time, reducing the need for complex manual configurations.
• Comprehensive Status Monitoring: Equipped with intuitive LED indicators (RUN, ERR, ECAT, and Unit Status) that provide instant, clear diagnostic information for streamlined troubleshooting and proactive system management.
• Seamless Integration with Omron Controllers: Ensure perfect compatibility and effortless interoperability with Omron NJ/NX machine controllers, guaranteeing a cohesive and high-performing automation ecosystem.

Technical Specifications

• Model: NX-ECC201
• Communication Protocol: EtherCAT
• Maximum I/O Modules: 32 NX-series units
• Data Refresh Time: As fast as 125 µs
• Power Supply Input: 24V DC
• Power Consumption: 1.5W (excluding connected modules)
• Status Indicators: RUN, ERR, ECAT, and Unit Status LEDs
• Mounting Type: DIN rail
• Operating Temperature: 0 to 55°C
• Storage Temperature: -25 to 70°C
• Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 5-9 Hz, 3.5 mm amplitude

Applications

• Industrial Automation: Facilitates high-speed and perfectly synchronized communication within complex industrial control systems, crucial for factory automation and manufacturing efficiency.
• Motion Control Systems: Delivers precise, real-time data exchange essential for advanced servo drives and robotic applications, ensuring accurate and repeatable motion.
• Process Automation: Enables high-speed control over a vast array of sensors and actuators, vital for optimizing continuous and batch processes in industries such as chemical, food and beverage, and pharmaceuticals.
• SCADA & IoT Integration: Provides the foundational EtherCAT connectivity for building robust smart factory solutions, enhancing data collection, analysis, and remote monitoring capabilities for Industry 4.0 initiatives.

Why Choose This Model?

The Omron NX-ECC201 EtherCAT Coupler stands out as a superior choice for modern industrial automation due to its exceptional combination of high-speed performance, reliability, and ease of integration. This module is engineered to deliver precise, synchronized data exchange, which is a cornerstone for optimizing the efficiency and responsiveness of any automation system. Its remarkably fast refresh rate ensures that critical data is transmitted and acted upon with minimal latency, directly impacting the accuracy of control and the responsiveness of machines.

Furthermore, the NX-ECC201's modular expandability offers unparalleled flexibility, allowing you to scale your I/O infrastructure efficiently to meet current demands and future growth without compromising performance. Seamless integration with Omron's industry-leading NJ/NX machine controllers guarantees a coherent and powerful automation platform. By choosing the Omron NX-ECC201, you are investing in a future-proof solution that delivers reliable, high-performance communication, empowering your industrial applications to achieve new levels of productivity and precision.

Order Now

Experience the benefits of superior industrial communication. Fast shipping and worldwide delivery options are available to meet your project timelines. Return to the Omron NX-Series I/O System collection to explore complementary components. Discover our full range of Omron PLCs | Programmable Logic Controllers to find reliable solutions for machine control, data monitoring, and comprehensive automation applications designed to elevate your operational capabilities.
