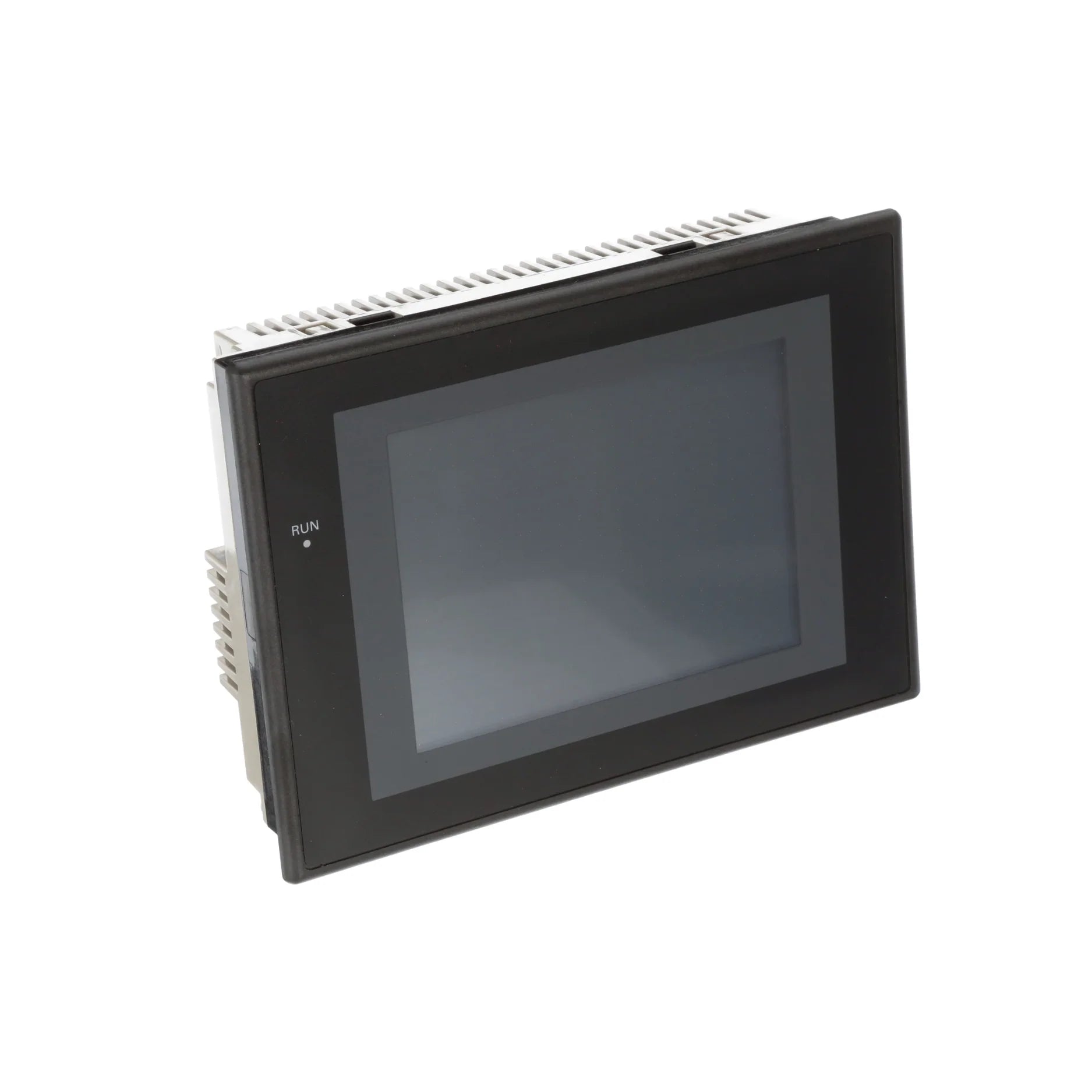

Omron NS5-SQ11B-V2

Overview

Elevate your industrial automation with the Omron NS5-SQ11B-V2, a robust 5.7-inch Human Machine Interface (HMI) touchscreen from the acclaimed NS Series. Engineered for precision and reliability, this operator interface provides a crucial link between your control systems and human operators. Featuring a vibrant STN color LCD, the NS5-SQ11B-V2 ensures crystal-clear visualization of critical data and processes. Its integrated Ethernet and dual RS-232C ports guarantee seamless and flexible communication with Omron PLCs and a wide array of other industrial devices. Designed with a compact footprint and packed with versatile features, this HMI is the ideal solution for optimizing control and monitoring across diverse industrial applications, delivering both performance and user-friendliness.

Key Features

• Display Size: 5.7 inches for a clear and concise view of operations.
• Display Type: High-quality STN color LCD for intuitive visual feedback.
• Resolution: 320 × 240 pixels (QVGA) offering detailed graphics and text.
• Backlight: Long-lasting LED backlight with an impressive minimum lifespan of 75,000 hours, ensuring consistent visibility.
• Touch Panel: Responsive analog resistive touch panel for effortless interaction and control.
• Connectivity Ports: Equipped with 2 × RS-232C ports and 1 × Ethernet (10Base-T/100Base-TX) port for extensive communication options.
• Memory: Generous 60 MB dedicated for screen data, allowing for complex and rich graphical interfaces.
• Software Compatibility: Fully compatible with Omron CX-Designer software for streamlined development and programming.
• Mounting Type: Designed for easy and secure panel mounting.
• Protection Rating: IP65-rated front panel (when properly mounted) guarantees durability and protection against dust and water ingress in challenging industrial environments.

Technical Specifications

• Model Number: NS5-SQ11B-V2
• Series: NS Series
• Display Size: 5.7 inches
• Display Type: STN color LCD
• Resolution: 320 × 240 pixels (QVGA)
• Touch Panel: Analog resistive
• Interface Ports:
  • 2 × RS-232C
  • 1 × Ethernet (10Base-T/100Base-TX)
• Rated Power Supply Voltage: 24V DC
• Power Consumption: 15 W max
• Operating Temperature: 0°C to +50°C
• Dimensions: 142 mm (H) × 195 mm (W) × 54 mm (D)
• Weight: Approximately 1.0 kg
• Certifications: CE, UL, RoHS, ensuring compliance with global standards.

Applications

• Factory Automation: Provides intuitive and efficient control and monitoring solutions for complex automated manufacturing systems, enhancing productivity.
• Process Control: Facilitates real-time data visualization and precise control in various process industries, optimizing operational efficiency and safety.
• Packaging Machinery: Enhances user interaction and streamlines operations for diverse packaging equipment, from filling to labeling.
• OEM Equipment: An ideal choice for seamless integration into custom machinery and specialized original equipment manufacturer (OEM) solutions that demand a reliable and user-friendly graphical interface.

Why Choose This Model?

The Omron NS5-SQ11B-V2 stands out as a superior choice for your industrial HMI needs due to its potent combination of features and engineering excellence. Its compact 5.7-inch display with QVGA resolution delivers clear, actionable visuals without occupying excessive panel space. Enjoy versatile communication capabilities with multiple integrated ports, including Ethernet and RS-232C, providing unparalleled flexibility for connecting to a wide array of industrial networks and devices. The durable design features an IP65-rated front panel, ensuring exceptional reliability and longevity even in the most demanding industrial environments. Furthermore, its user-friendly touchscreen operation, coupled with multi-language support, simplifies complex tasks and reduces operator fatigue, making the NS5-SQ11B-V2 a smart investment for optimizing your automation processes. This HMI is not just a display; it's a gateway to more efficient, reliable, and user-centric industrial control.

Order Now

Secure your Omron NS5-SQ11B-V2 5.7" HMI Touchscreen today and transform your industrial operations. This high-performance HMI is available for immediate shipping worldwide, ensuring that your automation projects can proceed without delay. Explore our extensive range of Omron Human Machine Interface (HMI) Solutions and the broader Omron Main Category to discover more innovative products tailored to your specific automation requirements. Partner with us for reliable solutions and global delivery.
