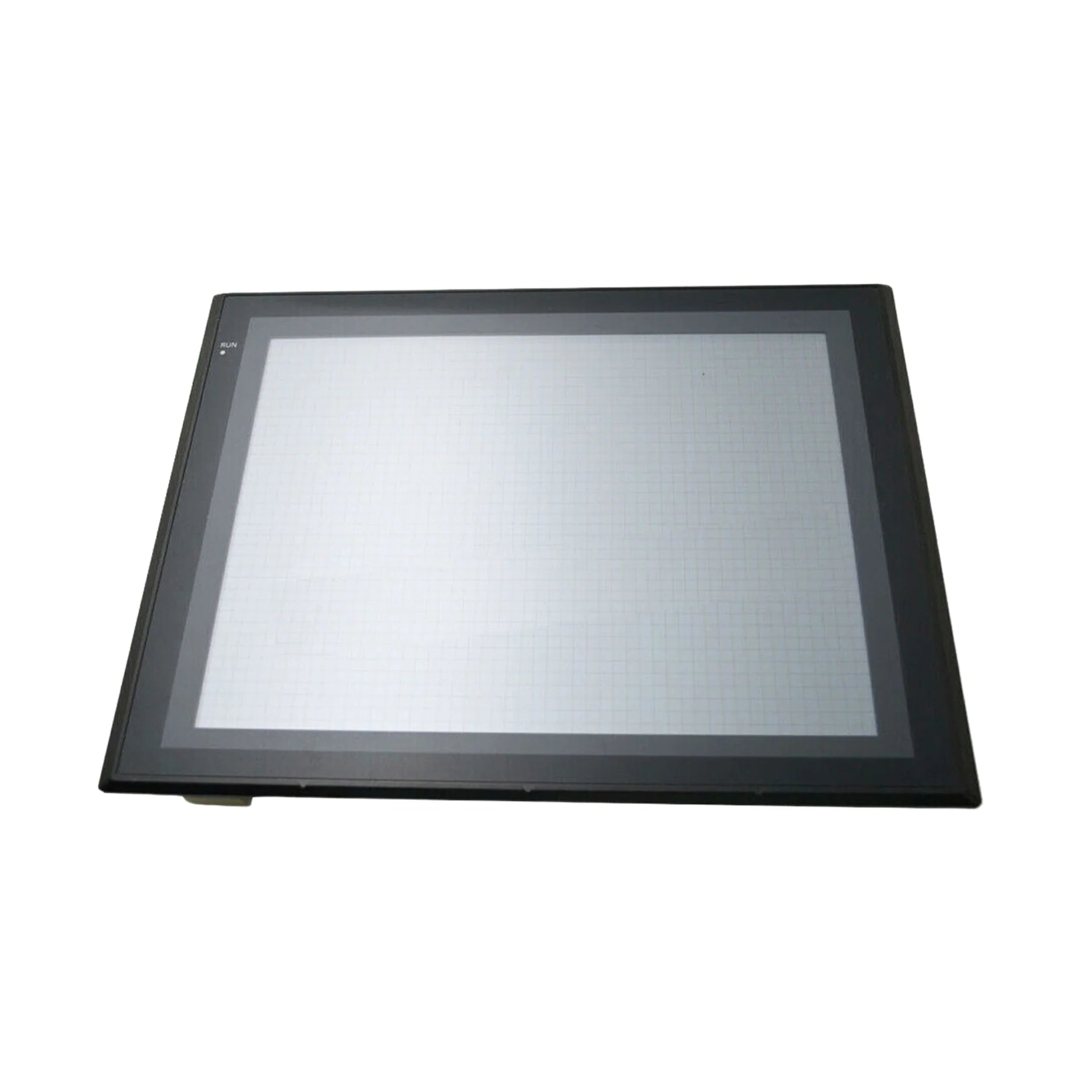

Omron NS12-TS01B-V2

Overview

Experience unparalleled control and visualization with the Omron NS12-TS01B-V2, a cutting-edge 12.1-inch HMI touchscreen from Omron's esteemed NS Series. Engineered for high-performance machine interfaces, this operator interface delivers crystal-clear visuals and responsive touch control, making it an indispensable tool for modern industrial environments. Its robust design is complemented by versatile connectivity options, including built-in Ethernet, RS-232C, and USB ports, ensuring seamless communication with Omron PLCs and a wide array of third-party devices. From complex process control to streamlined factory automation, the NS12-TS01B-V2 is built to excel in the most demanding applications, providing operators with intuitive access to critical system data.

Key Features

• Expansive 12.1-Inch TFT Color LCD: Offers a generous display area with vibrant visuals and an 800 x 600 pixel (SVGA) resolution for detailed graphical representations.
• Responsive Analog Resistive Touch Panel: Ensures precise and reliable input, even in challenging industrial settings.
• Comprehensive Connectivity: Equipped with multiple interface ports including Ethernet, RS-232C, RS-422A/485, USB Host, and USB Slave for unparalleled integration flexibility.
• Ample Memory: Features approximately 60 MB of memory dedicated to screen data, allowing for intricate and data-rich HMI designs.
• Advanced Software Compatibility: Fully compatible with Omron CX-Designer software, enabling efficient project development and customization.
• Integrated Performance Tools: Incorporates crucial features such as alarm management, data logging, and historical trend analysis to optimize operational insights and troubleshooting.
• Long-Life Backlight: Designed with a replaceable, long-life backlight for consistent illumination and reduced maintenance.

Technical Specifications

• Model Number: NS12-TS01B-V2
• Series: NS Series
• Display Size: 12.1 inches
• Display Type: TFT LCD, 256 colors
• Resolution: 800 × 600 (SVGA)
• Touch Panel: Analog resistive
• Interface Ports:
  • 1 × Ethernet
  • 1 × RS-232C
  • 1 × RS-422A/485
  • 1 × USB Host
  • 1 × USB Slave
• Rated Power Supply Voltage: 24V DC
• Current Consumption: Approx. 24W
• Operating Temperature: 0°C to +50°C
• Mounting Type: Panel mount
• Protection Rating: IP65 front panel (when mounted properly)
• Weight: Approx. 2.7 kg
• Certifications: CE, UL, cUL

Applications

The Omron NS12-TS01B-V2 is engineered to thrive in a diverse range of industrial applications, providing operators and engineers with a reliable and intuitive interface:

• Factory Automation: Achieve seamless integration with Omron PLCs and motion controllers, enabling centralized monitoring and control of complex automated processes.
• Process Control: Facilitate visual monitoring and precise control of intricate process flows, optimizing efficiency and ensuring product consistency.
• Packaging Machinery: Offer a user-friendly and highly responsive interface for operators and maintenance staff, streamlining operations and reducing downtime.
• OEM Equipment: Serve as an ideal solution for original equipment manufacturers requiring customized control panels with advanced graphical displays and robust performance.

Why Choose This Model?

Selecting the Omron NS12-TS01B-V2 means investing in reliability, performance, and unparalleled control. This HMI stands out due to its:

• Large, High-Resolution Display: Provides exceptional clarity and visual detail, ensuring critical information is always easy to read and understand.
• Multiple Communication Options: The inclusion of Ethernet and various serial ports offers superior flexibility for integration into existing and future control systems.
• Industrial Grade Durability: Its rugged, panel-mountable design with an IP65 front panel protection rating ensures reliable operation in harsh industrial environments.
• Powerful Interface Capabilities: Beyond basic control, it offers advanced features like data logging, alarms, trend analysis, and comprehensive recipe management for sophisticated control strategies.
• Omron Quality and Support: Benefit from the renowned quality and global support associated with the Omron brand, ensuring peace of mind and long-term performance.

Order Now

The Omron NS12-TS01B-V2 HMI touchscreen is available and ready for fast worldwide shipping, ensuring you can quickly enhance your automation systems. Elevate your operational efficiency and control capabilities today. Explore the full range of Omron Human Machine Interface (HMI) Solutions and the Omron Main Category to discover more innovative products tailored to your automation needs.
