Omron NB7W-TW01B-V1

Overview

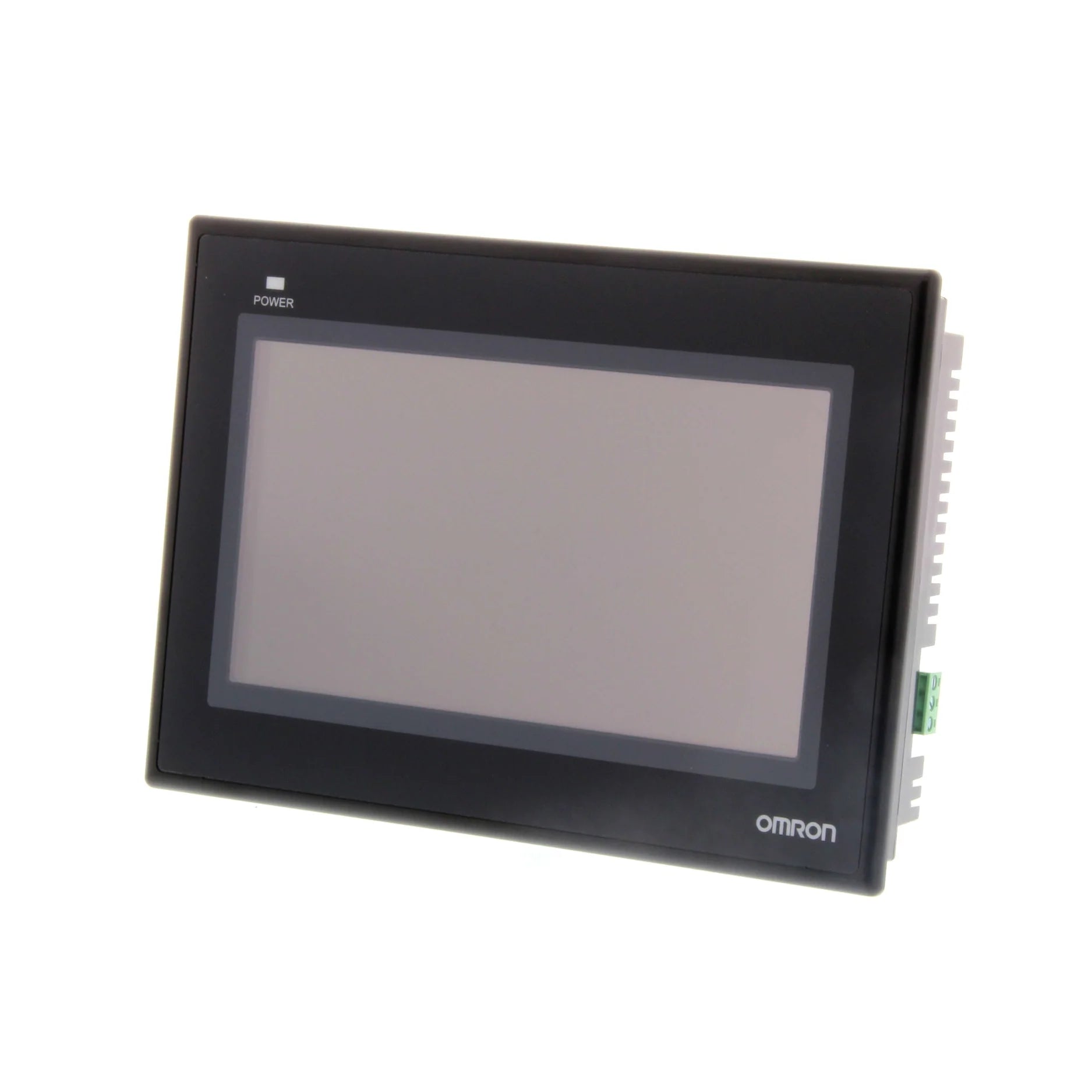

Elevate your industrial automation systems with the Omron NB7W-TW01B-V1, a high-performance 7-inch TFT color touchscreen Human-Machine Interface (HMI). Engineered for intuitive operability and seamless integration, this HMI is a pivotal tool for optimizing control and monitoring in diverse industrial environments. Boasting a crisp 800×480 pixel resolution, integrated Ethernet and USB host ports, and a robust IP65-rated front panel, the NB7W-TW01B-V1 ensures unwavering reliability and efficiency.

Key Features

• Vivid 7-inch TFT Color Display: Immerse yourself in brilliant visuals with a 7-inch TFT color LCD, showcasing 65,536 colors and a sharp 800×480 pixel resolution for exceptional clarity and detail.
• Responsive Analog Resistive Touchscreen: Navigate with precision using the analog resistive membrane touchscreen, offering a high resolution of 1024×1024 and an impressive lifespan of 1 million touch operations for sustained performance.
• Comprehensive Connectivity Suite:
  • Ethernet Port: Facilitate robust network communication with a 10/100 Base-T Ethernet port, ensuring seamless data exchange.
  • USB Host Port: Effortlessly transfer and store data via the USB Type A host port, compatible with USB memory devices.
  • Versatile Serial Ports: Connect to a wide array of devices with two RS-232 ports and one RS-422/485 port, offering unparalleled flexibility.
• Long-Life LED Backlight: Benefit from consistent illumination with a durable LED backlight, boasting an estimated lifespan of 50,000 hours at normal operating temperatures (25°C).
• Superior Durability with IP65 Front Panel: Ensure reliable operation in challenging conditions thanks to the IP65-rated front panel, providing robust protection against dust and water ingress.
• Compact and Efficient Design: Integrate effortlessly into your control panels with compact dimensions of 148 mm (H) × 202 mm (W) × 46 mm (D) and a panel cutout size of 137 mm (H) × 191 mm (W).
• Wide Operating Temperature Range: Maintain peak performance across a broad spectrum of industrial environments, with an operating temperature suitability from 0°C to 50°C.
• Optimized Power Efficiency: Operates efficiently on 24 VDC with a power consumption of just 7 W, contributing to energy savings.

Technical Specifications

• Model Number: NB7W-TW01B-V1
• Display Type: 7-inch TFT color LCD
• Resolution: 800×480 pixels
• Number of Colors: 65,536
• Touch Panel Type: Analog resistive membrane
• Touch Panel Resolution: 1024×1024
• Touch Panel Lifespan: 1 million operations
• Ethernet Port: 1 (10/100 Base-T)
• USB Host Port: 1 (Type A, USB 2.0 full speed, output power 5 V, 150 mA)
• Serial Ports:
  • COM1: RS-232C
  • COM2: RS-232C/RS-422/RS-485 (not isolated)
• Backlight Type: LED
• Backlight Lifespan: 50,000 hours at 25°C
• Front Panel Protection: IP65
• Dimensions: 148 mm (H) × 202 mm (W) × 46 mm (D)
• Panel Cutout Dimensions: 137 mm (H) × 191 mm (W)
• Weight: Approximately 705 g
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 60°C
• Operating Humidity Range: 10% to 90% RH (non-condensing)
• Power Supply Voltage: 24 VDC (20.4 to 27.6 VDC)
• Power Consumption: 7 W
• Certifications: CE, cUL508, KC

Applications

The Omron NB7W-TW01B-V1 is an indispensable asset across a multitude of industrial sectors, providing robust and intuitive control solutions:

• Manufacturing: Empower operators with real-time data visualization and precise control over complex production processes, enhancing operational efficiency and throughput.
• Packaging: Implement user-friendly interfaces for advanced packaging machinery, thereby streamlining operations, minimizing downtime, and improving overall packaging line performance.
• Process Control: Facilitate comprehensive monitoring and control of critical process parameters in demanding industries such as chemical, pharmaceutical, and food processing, ensuring safety and consistency.
• Building Automation: Serve as a central interface for managing sophisticated HVAC systems, lighting controls, security systems, and other essential building automation functions, optimizing energy use and comfort.

Why Choose This Model?

The Omron NB7W-TW01B-V1 stands out as a superior choice for your industrial automation needs due to its blend of advanced features and Omron's renowned reliability:

• Exceptional Display Quality: The vibrant 7-inch TFT screen offers unparalleled clarity and visual fidelity, significantly enhancing the user experience and making data interpretation effortless.
• Unmatched Connectivity: With multiple communication ports, including Ethernet and a suite of serial connections, this HMI offers unparalleled versatility for integrating with diverse machinery and networks. This ensures future-proof connectivity within evolving industrial ecosystems.
• Rugged Industrial Design: Engineered with an IP65-rated front panel, the NB7W-TW01B-V1 is built to withstand harsh industrial environments, ensuring continuous and reliable operation even in the face of dust and water exposure.
• Omron Reliability: As an Omron product, the NB7W-TW01B-V1 benefits from a legacy of engineering excellence and product longevity, ensuring a dependable solution for critical applications.
• Intuitive User Interface: Designed for ease of use, the HMI's intuitive interface reduces learning curves, allowing operators to quickly and effectively manage complex processes.

Order Now

Upgrade your industrial control systems today with the Omron NB7W-TW01B-V1. Experience the perfect synergy of advanced technology, robust construction, and user-centric design. Contact us to place your order or for more information on how this exceptional HMI can revolutionize your operations.
