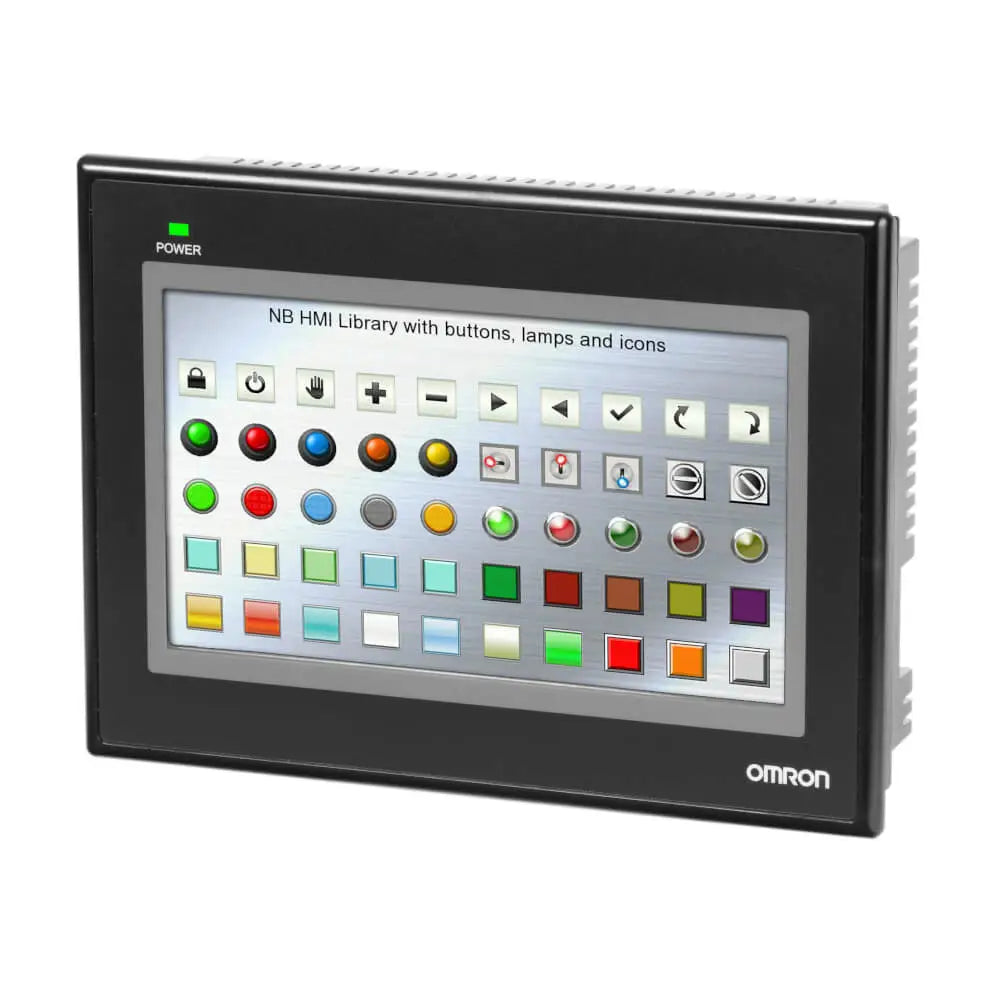

Omron NB7W-TW01B

Overview

The Omron NB7W-TW01B is an advanced 7-inch TFT color Human-Machine Interface (HMI) meticulously engineered to provide intuitive, efficient, and robust control for a wide array of industrial automation systems. This cutting-edge HMI seamlessly integrates a vibrant, high-resolution 800×480 display with essential connectivity options such as integrated Ethernet and a USB host, ensuring unparalleled operational precision and user convenience. Designed for demanding industrial environments, the NB7W-TW01B empowers operators with real-time data visualization and simplified system interaction, making it an indispensable component for modern manufacturing and process control applications. Its user-friendly interface coupled with Omron's renowned reliability makes it a superior choice for enhancing productivity and streamlining complex operations.

Key Features

• Display: A brilliant 7-inch TFT color LCD, offering a crisp 800×480 resolution for clear and concise data representation.
• Touch Panel: Responsive analog resistive type with 1024×1024 resolution, ensuring precise input and intuitive user interaction.
• Interfaces:
  • Ethernet: 1 port (10/100 Base-T) for seamless network integration and robust data exchange.
  • USB Host: 1 port, specifically designed to support USB memory devices for convenient data logging and program updates.
• Serial Ports:
  • COM1: RS-232C/422A/485 (not isolated), providing flexible connectivity to various industrial devices.
  • COM2: RS-232C/422A/485 (not isolated), further expanding serial communication capabilities.
• Backlight: Energy-efficient LED backlight with an impressive lifespan of approximately 50,000 hours at 25°C, guaranteeing long-term visibility.
• Memory: Generous 128 MB internal memory (including system area), ample for storing complex project data and applications.
• Protection Rating: IP65 on the front panel, ensuring superior protection against dust and water ingress in challenging industrial settings.
• Power Supply: Reliable 24 VDC (20.4 to 27.6 VDC) input, compatible with standard industrial power systems.
• Operating Temperature: Engineered to perform flawlessly within a temperature range of 0°C to 50°C, suitable for diverse operational environments.
• Dimensions: Compact and installation-friendly measurements of 202 mm (W) × 148 mm (H) × 46 mm (D).
• Weight: Approximately 1,000 g, facilitating easy handling and installation.

Technical Specifications

The Omron NB7W-TW01B is built to meet rigorous industrial standards, providing exceptional performance and durability. Its technical specifications are carefully selected to ensure optimal functionality and integration within sophisticated automation architectures.

• Display Type: 7-inch TFT Color LCD
• Display Resolution: 800 × 480 dots
• Touch Panel Type: Analog Resistive (1024 × 1024 resolution)
• Ethernet Port: 1 x 10/100 Base-T
• USB Host Port: 1 x (supports USB memory devices)
• Serial Port COM1: RS-232C/422A/485 (Non-isolated)
• Serial Port COM2: RS-232C/422A/485 (Non-isolated)
• Backlight Life: Approx. 50,000 hours (at 25°C)
• Internal Memory: 128 MB (including system area)
• Front Panel Protection: IP65
• Rated Power Supply: 24 VDC
• Operating Voltage Range: 20.4 to 27.6 VDC
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 60°C
• External Dimensions (W × H × D): 202 mm × 148 mm × 46 mm
• Weight: 1,000 g (approx.)

Applications

The versatility and robust design of the Omron NB7W-TW01B make it an ideal HMI solution across a broad spectrum of industrial applications, significantly enhancing operational control and efficiency.

• Industrial Automation: Perfectly suited for facilitating user-friendly control and precise monitoring of intricate machinery and complex production processes in manufacturing plants.
• Process Control: Empowers operators with critical real-time data visualization and intuitive system interaction, allowing for immediate adjustments and optimized process management in industries like chemical processing, food and beverage, and water treatment.
• Machine Control: Elevates the interface between human operators and sophisticated machinery, leading to improved operational efficiency, reduced downtime, and enhanced safety in diverse machine-centric environments.
• Building Management Systems (BMS): Can be integrated for monitoring and controlling HVAC, lighting, and security systems within commercial and industrial buildings.
• Packaging and Material Handling: Provides a centralized control point for conveyor systems, robotic arms, and packaging machinery, optimizing throughput and reducing errors.

Why Choose This Model?

The Omron NB7W-TW01B stands out as a premier choice for industrial HMI solutions due to its compelling blend of advanced features, robust construction, and user-centric design.

• High-Quality Display: Experience unparalleled clarity and vibrant visuals on its 7-inch screen, providing wide viewing angles and exceptional readability even in challenging lighting conditions.
• Versatile Connectivity: Benefit from a comprehensive range of communication ports, including both Ethernet and a USB host, enabling flexible integration with a multitude of industrial devices and networks. This ensures seamless data exchange and future-proof connectivity.
• Durable Industrial Design: Engineered for resilience, its robust construction features an IP65-rated front panel, guaranteeing reliable operation and protection against environmental contaminants like dust and water, even in the harshest industrial settings.
• User-Friendly Interface: Facilitate enhanced operator productivity and reduce training times with an intuitive touch screen offering highly responsive controls and an ergonomic user experience.
• Omron Reliability: Leverage the trusted quality and high performance associated with the Omron brand, renowned for its dependable industrial automation components.
• Enhanced Productivity: Streamline operations and minimize errors through immediate access to crucial operational data and intuitive control capabilities.

Order Now

Elevate your industrial automation capabilities today with the Omron NB7W-TW01B 7-inch HMI. This powerful and reliable HMI is available for immediate worldwide shipping, ensuring you can quickly upgrade your systems and enhance operational efficiency.
