Omron NB5Q-TW00B

Overview

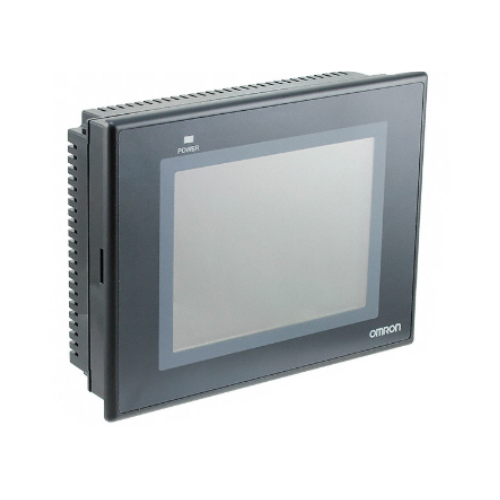

The Omron NB5Q-TW00B is a state-of-the-art Human-Machine Interface (HMI) meticulously engineered to elevate industrial automation systems. This 5.6-inch TFT color touchscreen HMI provides an intuitive and highly efficient platform for controlling and monitoring complex processes. With its crisp QVGA resolution of 320x234 pixels and support for 65,536 vibrant colors, the NB5Q-TW00B ensures exceptional visual clarity for critical operational data. Its comprehensive communication capabilities, including RS-232C/422A/485 and convenient dual USB ports, guarantee seamless integration across a wide spectrum of industrial devices and networks, streamlining your automation infrastructure.

Key Features

• Display Excellence:
  • Screen Size: Generous 5.6-inch display for optimal visibility.
  • Resolution: QVGA (320x234 pixels) ensures sharp and clear visuals.
  • Color Depth: Supports 65,536 colors for rich, detailed graphical representation.
  • Touchscreen Technology: Highly responsive analog resistive type with 1024x1024 resolution, boasting an impressive 1 million touch operations lifespan for sustained performance.
  • Backlight Longevity: Equipped with a long-life LED backlight, offering an estimated 50,000 hours of operation at 25°C, reducing maintenance needs.
• Advanced Connectivity:
  • Versatile Serial Ports:
    • COM1: RS-232C/422A/485 (non-isolated), D-Sub 9-pin connector, for broad device compatibility.
    • COM2: RS-232C, D-Sub 9-pin connector, providing additional serial communication options.
  • Dual USB Ports:
    • USB Host: 1 port, equivalent to USB 2.0 full speed, Type A, delivering 5V, 150 mA output power for peripheral connectivity.
    • USB Slave: 1 port, equivalent to USB 2.0 full speed, Type B, supporting transmission distances up to 5 meters for efficient data transfer.
• Robust Memory:
  • Internal Memory: Ample 128 MB (including system area) for reliable project storage and execution.
• Efficient Power Management:
  • Voltage Input: Operates on 24 VDC, with a flexible operating range of 20.4 to 27.6 VDC.
  • Power Consumption: Energy-efficient design with a power consumption of just 9 W.

Technical Specifications

• Environmental Resilience:
  • Operating Temperature: Designed to perform reliably in environments ranging from 0°C to 50°C.
  • Storage Temperature: Capable of storage in temperatures from -20°C to 60°C.
  • Operating Humidity: Functions optimally within 10% to 90% RH (non-condensing) conditions.
  • Noise Immunity: Compliant with IEC61000-4-4, 2 kV (power cable), ensuring stable operation in electrically noisy industrial settings.
• Physical Attributes:
  • Dimensions (H x W x D): Compact form factor measuring 142 mm x 184 mm x 46 mm for easy integration.
  • Panel Cutout Dimensions (H x W): Precisely engineered for a panel cutout of 131 mm x 172.4 mm.
  • Weight: Lightweight design at approximately 305 g, facilitating installation.
• Certifications:
  • Globally recognized certifications including CE, KC, and cUL508, guaranteeing adherence to international safety and quality standards.

Applications

• Industrial Automation: The NB5Q-TW00B serves as a cornerstone for creating intuitive and efficient user interfaces, enabling precise monitoring and control of diverse machinery and complex processes across various industrial sectors.
• Process Control: Ideal for applications requiring real-time data visualization and active interaction, this HMI facilitates optimal management and optimization of critical industrial processes, enhancing operational efficiency.
• Machine Operation: By providing clear displays and responsive controls, the NB5Q-TW00B significantly enhances operator efficiency, simplifies the handling of intricate machinery, and improves overall productivity in manufacturing and production environments.
• Its robust design and versatile features make it suitable for a wide array of demanding industrial settings, from manufacturing floors to processing plants.

Why Choose This Model?

The Omron NB5Q-TW00B stands out as a superior choice for your industrial automation needs due to its exceptional blend of performance, versatility, and durability:

• High-Quality Display: Experience unparalleled visual clarity with a vibrant 5.6-inch TFT color display, offering wide viewing angles and enhancing user interaction with critical operational data.
• Unmatched Connectivity: Benefit from a comprehensive array of communication ports, including multiple serial interfaces and dual USB ports, ensuring seamless compatibility and effortless integration with a vast range of industrial devices and control systems.
• Engineered for Durability: Built to withstand the rigors of industrial environments, this HMI features a robust touchscreen rated for 1 million operations and a long-life LED backlight of 50,000 hours, promising enduring reliability and minimal downtime.
• Intuitive User Experience: Designed for ease of use, the NB5Q-TW00B facilitates intuitive operation, significantly reduces training requirements for operators, and ultimately boosts overall productivity.
• Compact and Adaptable Design: Its space-saving dimensions and lightweight construction allow for straightforward installation and flexible integration into virtually any control panel or industrial setup, optimizing your workspace.
