Omron NB10W-TW01B

Overview

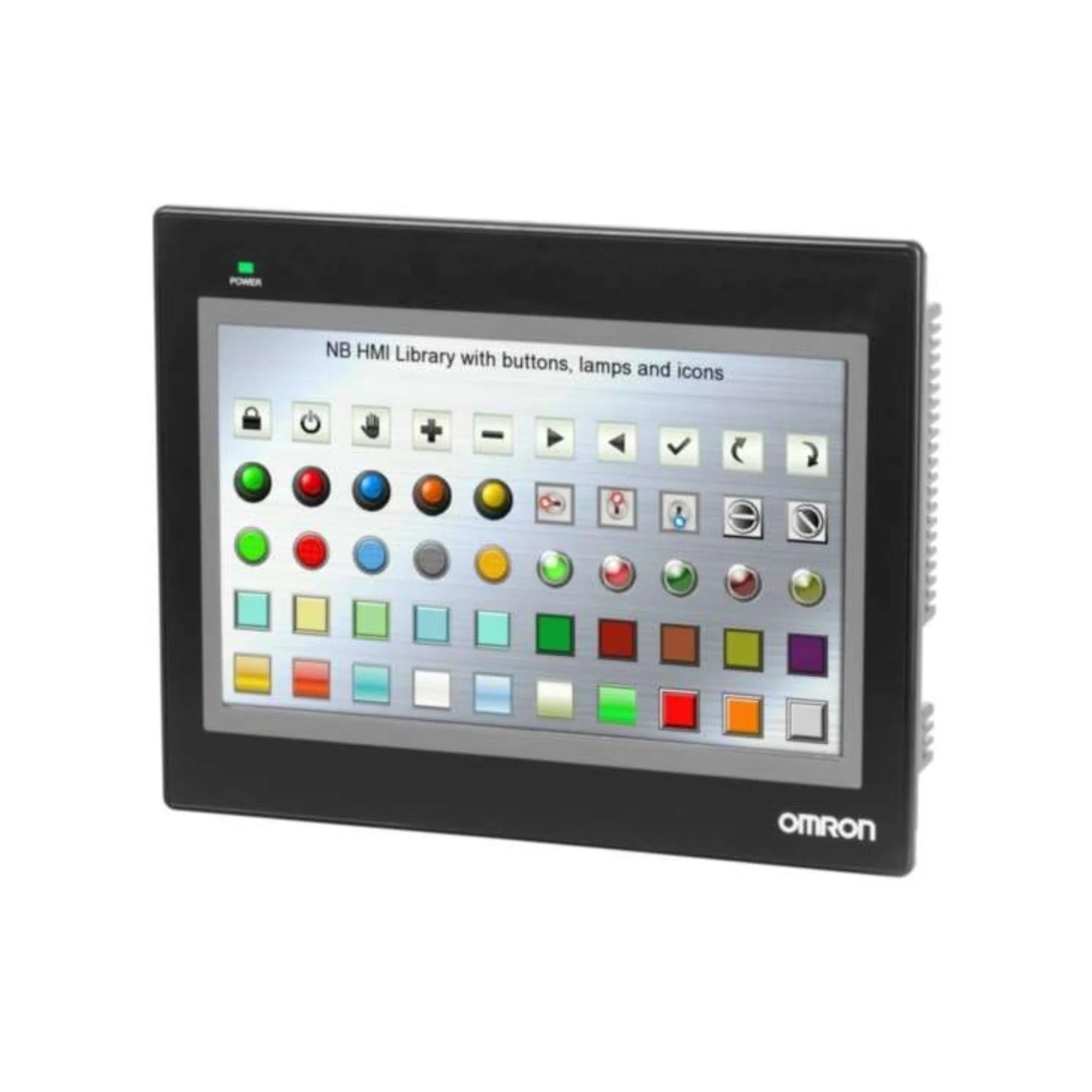

Elevate your industrial automation with the Omron NB10W-TW01B, a cutting-edge 10.1-inch Human Machine Interface (HMI) touchscreen from the acclaimed NB Series. Engineered for superior performance and user interaction, this HMI is your gateway to efficient machine control and monitoring. Boasting a vibrant TFT color LCD, integrated Ethernet, and a convenient USB Host, the NB10W-TW01B ensures robust and seamless communication with Omron PLCs and a diverse array of industrial devices. Its meticulous design, blending a compact footprint with versatile functionalities, makes it an indispensable component for an extensive range of industrial settings.

Key Features

• Expansive Display: A spacious 10.1-inch TFT color LCD provides crystal-clear visual feedback and ample screen real estate for complex graphical interfaces.
• High-Resolution Visuals: Experience crisp and detailed graphics with an 800 × 480 pixels (WVGA) resolution, enhancing operator clarity and data interpretation.
• Durable Touch Panel: The analog resistive membrane type touch panel offers a high resolution of 1024 × 1024 and an impressive lifespan of 1 million touch operations, guaranteeing reliability in demanding environments.
• Extended Backlight Life: An energy-efficient LED backlight ensures brilliant illumination for up to 50,000 hours at 25°C, minimizing maintenance and maximizing operational uptime.
• Comprehensive Connectivity: Equipped with multiple communication ports, including:
  • 1 × Ethernet (10/100 Base-T) for high-speed network integration.
  • 1 × USB Host (USB 2.0 full speed, type A) with 5 V, 150 mA output for peripheral connections.
  • 1 × USB Slave (USB 2.0 full speed, type B) with a transmission distance of 5m for direct PC communication.
  • 1 × RS-232C and 1 × RS-422A/485 for broad compatibility with legacy and modern industrial systems.
• Ample Memory: A generous 128 MB of internal memory (including system area) provides sufficient space for application programs and data storage.
• Software Harmony: Fully compatible with Omron NB-Designer software, enabling intuitive program development and flexible system configuration.
• Robust Mounting: Designed for easy and secure panel mounting, ensuring stability and integration into control cabinets.
• Industrial-Grade Protection: The front panel boasts an IP65 protection rating when properly mounted, defending against dust and water ingress in harsh industrial conditions.

Technical Specifications

• Model Number: NB10W-TW01B
• Series: NB Series
• Display Size: 10.1 inches
• Display Type: TFT color LCD
• Resolution: 800 × 480 pixels (WVGA)
• Touch Panel: Analog resistive membrane type
• Interface Ports:
  • 1 × Ethernet (10/100 Base-T)
  • 1 × USB Host (USB 2.0 full speed, type A, output power 5 V, 150 mA)
  • 1 × USB Slave (USB 2.0 full speed, type B, transmission distance: 5 m)
  • 1 × RS-232C
  • 1 × RS-422A/485
• Rated Power Supply Voltage: 24V DC (20.4 to 27.6 VDC)
• Power Consumption: 14 W
• Operating Temperature: 0°C to +50°C
• Dimensions: 210.8 mm (H) × 268.8 mm (W) × 54.0 mm (D)
• Weight: Approximately 1.95 kg
• Certifications: CE, KC, cUL508

Applications

• Factory Automation: Provides intuitive control and real-time monitoring for complex automated manufacturing processes, enhancing operational efficiency.
• Process Control: Facilitates critical data visualization and precise control in diverse process industries, from chemical plants to food processing facilities.
• Packaging Machinery: Optimizes user interaction with a wide range of packaging equipment, streamlining operations and reducing downtime.
• OEM Equipment Integration: An ideal solution for seamless integration into custom-built machinery, offering a reliable and advanced graphical interface.

Why Choose This Model?

The Omron NB10W-TW01B stands out as a premier choice for industrial HMI solutions due to its innovative design and robust feature set. The expansive 10.1-inch WVGA display delivers exceptional clarity, ensuring that critical data and graphical representations are always easily discernible. Its comprehensive communication capabilities, including Ethernet, USB Host, and traditional serial ports (RS-232C/RS-422A/485), offer unparalleled flexibility for integration into virtually any industrial network. Furthermore, the IP65-rated front panel guarantees enduring reliability even in challenging operational environments, safeguarding your investment. Coupled with a user-friendly touchscreen interface and multi-language support, the NB10W-TW01B empowers operators with efficient and intuitive control, transforming complex tasks into streamlined processes. Choose the Omron NB10W-TW01B for a powerful, durable, and user-centric HMI experience that drives productivity and efficiency.
