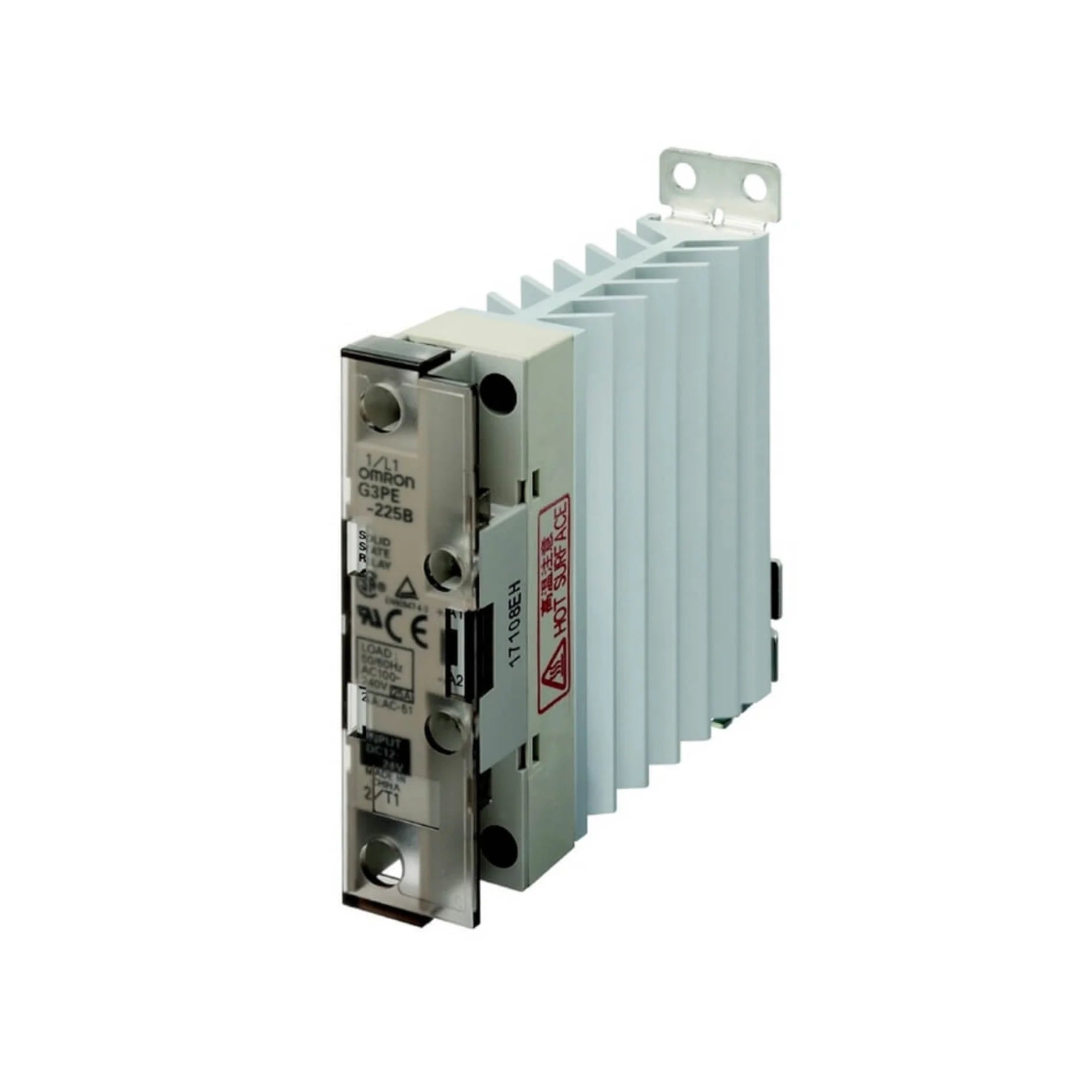

Omron G3PE-225B solid state relay with 25A output, DC 12–24V input, 24–240V AC output, ideal for resistive load control.

Omron G3PE-225B

$127.00
$127.00
Skip to product information
Omron G3PE-225B solid state relay with 25A output, DC 12–24V input, 24–240V AC output, ideal for resistive load control.
  • Omron G3PE-225B solid state relay with 25A output, DC 12–24V input, 24–240V AC output, ideal for resistive load control.
  • Omron G3PE-225B solid state relay with 25A output, DC 12–24V input, 24–240V AC output, ideal for resistive load control.
Omron G3PE-225B

Omron G3PE-225B

$127.00
$127.00

Overview

The Omron G3PE-225B is a high-performance single-phase solid state relay (SSR) engineered for precise and reliable control of resistive loads across various industrial applications. Boasting a DC 12–24V control input and an AC output range of 24–240V at a robust 25A, this SSR ensures silent, long-lasting performance without the wear and tear associated with traditional electromechanical relays. Its compact design and advanced features, including zero-cross functionality, make it an indispensable component for heating, lighting, and industrial automation systems where efficiency and durability are paramount.

Key Features

  • Rated Load Current: 25 A for demanding applications.
  • Input Voltage Range: Versatile DC 12–24V control for broad compatibility.
  • Output Voltage Range: Wide 24–240V AC output to suit diverse systems.
  • Load Type Optimization: Specifically designed for efficient control of resistive loads.
  • Zero Cross Function: Minimizes electrical noise and power surges for smoother operation.
  • Cooling Fin Compatibility: Supports optional cooling fins for enhanced performance in high-duty cycle applications.
  • Mounting Flexibility: Convenient DIN rail or panel mounting for adaptable installation.
  • LED Indicator: Provides clear visual confirmation of the input signal status.
  • Built-in Snubber Circuit: Offers superior protection against transient voltage spikes.
  • Slim and Space-Saving Design: Optimizes control panel real estate, ideal for compact installations.

Technical Specifications

  • Model: G3PE-225B DC12-24
  • Input Voltage: 12–24 VDC
  • Input Current: 7.5 mA max.
  • Output Voltage: 24–240 VAC
  • Output Current: 25 A (resistive load)
  • Control Method: Zero cross
  • Dielectric Strength: 4,000 VAC between input and output for enhanced safety.
  • Ambient Operating Temperature: –30°C to +80°C (with derating)
  • Protection Circuit: Integrated snubber circuit
  • Mounting Method: DIN rail or screw mounting
  • Dimensions: Approx. 22.5 × 90 × 100 mm
  • Weight: Approx. 200 g

Applications

The Omron G3PE-225B solid state relay is exceptionally versatile, finding its use in a multitude of industrial and commercial environments:

  • Industrial Heaters and Ovens: Provides precise temperature control for consistent processing.
  • Packaging Equipment: Ensures reliable and rapid switching for automated machinery.
  • Lighting Control Systems: Ideal for dimming and switching applications in commercial and industrial lighting.
  • AC Motor Start/Stop: Suitable for resistive control applications, offering soft start capabilities.
  • Environmental Chambers: Critical for maintaining stable conditions in testing and research facilities.
  • Plastic Extrusion Machinery: High-speed switching for accurate heating elements.
  • Molding Equipment: Reliable control for heating specific zones during molding processes.

Why Choose This Model?

The Omron G3PE-225B stands out as a superior choice for several compelling reasons:

  • Silent and Efficient Operation: Experience noise-free switching, a significant advantage over often loud electromechanical relays, contributing to a quieter work environment.
  • Extended Service Life: With no moving parts to wear out, this SSR offers significantly longer operational lifespan, reducing maintenance costs and downtime.
  • Wide Voltage Compatibility: Its broad input and output voltage ranges ensure seamless integration into a diverse array of industrial electrical systems.
  • Compact and Durable Design: The slim profile and robust construction are perfect for installations where space is a premium, without compromising on performance or reliability.
  • Enhanced System Protection: Features like the zero-cross function and built-in snubber circuit protect your equipment from electrical disturbances, ensuring stable and safe operation.
  • Proven Omron Quality: Benefit from Omron's reputation for manufacturing high-quality, reliable industrial components that you can trust.

Order Now

Elevate your control systems with the Omron G3PE-225B solid state relay. Its unparalleled reliability, compact design, and advanced features make it the ideal solution for optimizing your industrial applications. Add to cart or contact us today to inquire about bulk orders and expert support.
