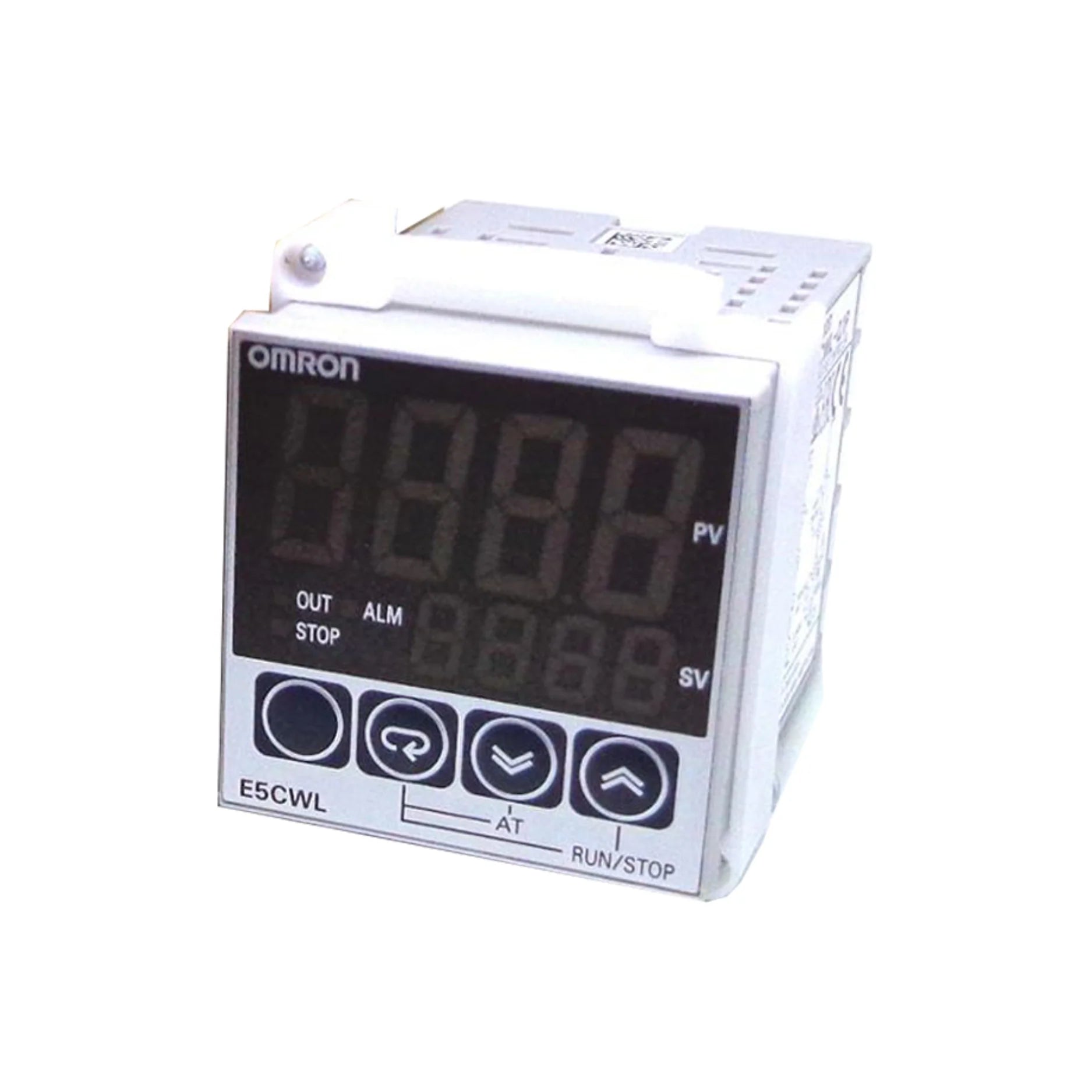

Omron E5CWL-R1TC | 1/16 DIN Temperature Controller

Overview

The Omron E5CWL-R1TC stands as a testament to precision and reliability in industrial thermal management. This compact 1/16 DIN temperature controller is engineered to deliver highly accurate and consistent thermal regulation across a diverse range of demanding industrial applications. Integrating seamless thermocouple input with a robust relay output, the E5CWL-R1TC is the ideal solution for both heating and cooling process control. Its intuitive dual LED display ensures at-a-glance monitoring of both process and setpoint values, empowering operators with clear, real-time insights into their operations. Built by Omron, a leader in industrial automation, this unit guarantees exceptional performance and durability.

Key Features

• Universal Thermocouple Input: Compatible with a wide array of thermocouple sensors (Types J, K, R, S, T) for versatile temperature sensing.
• Robust Relay Output: Features a single-pole, single-throw, normally open (SPST-NO) relay output, rated at 250 VAC, 3 A (resistive load), perfect for controlling industrial heaters or chillers.
• Crystal-Clear Dual LED Display: Equipped with a dual 4-digit LED display, showcasing process values (PV) with an impressive 16.2 mm character height for superior readability even from a distance.
• Advanced Control Algorithms: Offers both ON/OFF control and sophisticated 2-PID control with auto-tuning functionality, ensuring optimal thermal stability and energy efficiency.
• Rapid Sampling Period: A swift 250 ms sampling rate provides exceptionally responsive control, quickly adapting to temperature fluctuations for stable process operation.
• Configurable Alarm Output: Includes one SPST-NO relay alarm output, rated at 250 VAC, 1 A (resistive load), for critical alert signaling and process safety.
• Space-Saving 1/16 DIN Design: Its compact form factor (48 mm × 48 mm × 60 mm) allows for efficient use of panel space, making it ideal for crowded control cabinets.
• Flexible Power Supply: Operates efficiently across a wide power supply range of 100 to 240 VAC, 50/60 Hz, ensuring compatibility with various power infrastructures.

Technical Specifications

• Model Number: E5CWL-R1TC
• Input Types: Thermocouple (Types J, K, R, S, T)
• Input Ranges:
  • K: -200 to 1,300°C
  • J: -100 to 850°C
  • T: -200 to 400°C
  • R: 0 to 1,700°C
  • S: 0 to 1,700°C
• Indication Accuracy: ±0.5% of process value or ±1°C, whichever is greater
• Control Output: Relay output (SPST-NO), 250 VAC, 3 A (resistive load)
• Alarm Output: One relay output (SPST-NO), 250 VAC, 1 A (resistive load)
• Control Modes: ON/OFF or 2-PID with auto-tuning
• Sampling Period: 250 ms
• Power Supply Voltage: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 3.5 VA
• Operating Temperature: -10°C to +55°C (no icing or condensation)
• Storage Temperature: -25°C to +65°C (no icing or condensation)
• Operating Humidity: 25% to 85% RH
• Mounting: Panel mount with included adapter
• Dimensions: 48 mm (W) × 48 mm (H) × 60 mm (D)
• Weight: Approximately 100 g
• Certifications: CE, UL

Applications

The Omron E5CWL-R1TC is an indispensable asset in a multitude of industrial environments where precise temperature control is paramount:

• Industrial Ovens and Furnaces: Ensures consistent product quality and throughput by maintaining exact thermal profiles.
• Food Processing Equipment: Critical for upholding food safety standards and achieving optimal cooking, baking, or chilling processes.
• Plastic Molding Machines: Regulates mold temperatures with high accuracy to prevent defects and enhance the quality of molded parts.
• Environmental Chambers: Provides stable temperature conditions essential for accurate scientific research, material testing, and product development.
• HVAC Systems: Optimizes heating, ventilation, and air conditioning for efficient climate control in commercial and industrial buildings.
• Packaging Machinery: Controls heat sealing temperatures to ensure secure and consistent packaging.

Why Choose This Model?

The Omron E5CWL-R1TC is more than just a temperature controller; it’s a strategic investment in accuracy, efficiency, and reliability for your industrial operations. Its versatile sensor compatibility and high indication accuracy of ±0.5% ensure that your processes are always operating within optimal thermal parameters. The user-friendly interface, characterized by its bright dual LED display, simplifies monitoring and reduces the potential for operator error. Furthermore, its compact 1/16 DIN design and robust construction make it an ideal choice for challenging industrial environments where space is at a premium and durability is non-negotiable. With Omron's reputation for innovation and quality, the E5CWL-R1TC delivers peace of mind and superior performance.

Order Now

Elevate your industrial temperature control capabilities today. The Omron E5CWL-R1TC is available for immediate shipping worldwide. Experience the difference that precision engineering and reliable performance can make in your critical applications.
