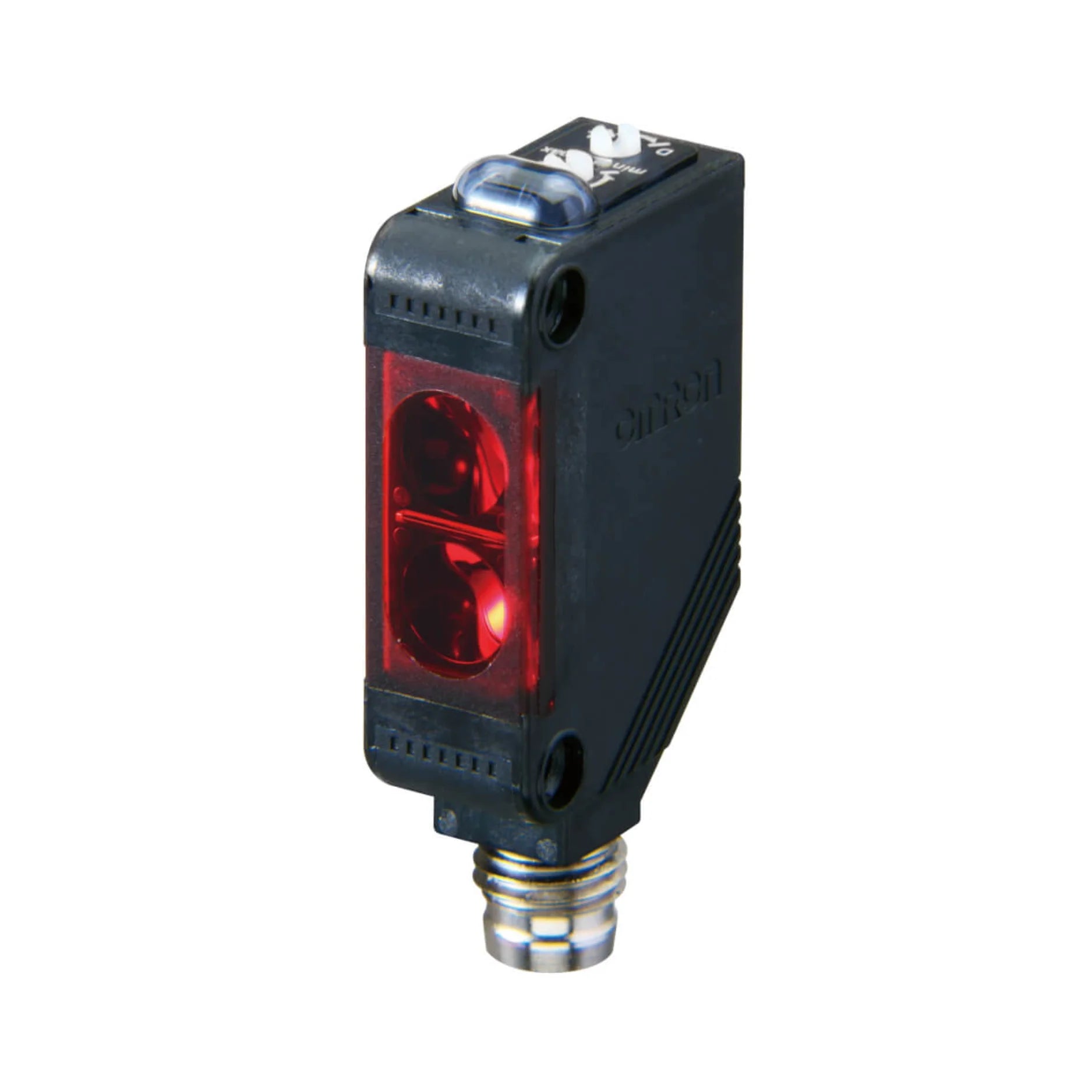

Omron E3Z-R86

Overview

The Omron E3Z-R86 is a high-performance, retro-reflective photoelectric sensor engineered to deliver unparalleled accuracy and reliability in demanding industrial automation environments. This compact yet powerful sensor is meticulously designed for precise object detection over a substantial sensing range, making it an indispensable component for a multitude of applications. From enhancing efficiency in conveyor systems to ensuring the flawless operation of packaging machinery, the E3Z-R86 stands out due to its robust construction and versatile connectivity options. Its ability to detect objects from 100 mm up to an impressive 4 meters, particularly when paired with the E39-R1S reflector, positions it as a superior choice for tasks requiring consistent and accurate detection across moderate to extended distances. The thoughtful integration of advanced features ensures seamless integration into existing systems, promising enhanced operational uptime and reduced maintenance.

Key Features

• Extended Sensing Distance: Reliably detects objects from 100 mm to a maximum of 4 meters, utilizing the E39-R1S reflector, offering broad application adaptability.
• PNP Output Versatility: Features a PNP open collector output with user-selectable Light-ON/Dark-ON modes, providing flexible control options for various system requirements.
• Effortless Connectivity: Equipped with a standard M8 4-pin connector, facilitating quick, secure, and hassle-free installation and replacement.
• Optimized Light Source: Incorporates a highly visible and consistent red LED (660 nm) light source, ensuring dependable detection across diverse materials and conditions.
• Ultra-Compact Form Factor: Boasts minimal dimensions of 10.8 mm (W) × 20 mm (D) × 31 mm (H), enabling easy integration into machinery where space is a critical constraint.
• Rapid Response Time: Achieves an exceptional operate or reset response time of 1 ms maximum, crucial for high-speed applications requiring instantaneous object detection.
• Industrial-Grade Durability: Housed in an IP67-rated polybutylene terephthalate (PBT) casing, offering superior protection against dust, water ingress, and other environmental stressors.

Technical Specifications

• Model Number: E3Z-R86
• Sensing Method: Retro-reflective with advanced M.S.R. (Mirror Surface Rejection) functionality to minimize false detections.
• Sensing Distance:
  • With E39-R1S Reflector: 100 mm to 4 m
  • With E39-R1 Reflector: 100 mm to 3 m
• Standard Sensing Object: Capable of detecting opaque objects with a minimum diameter of 75 mm.
• Directional Angle: 2° to 10°, providing a focused detection beam.
• Power Supply Voltage: 12 to 24 VDC ±10% with ripple (p-p) 10% max, ensuring stable power delivery.
• Current Consumption: Max 30 mA, contributing to energy efficiency.
• Control Output:
  • Voltage: 26.4 VDC max
  • Current: 100 mA max
  • Residual Voltage: 1 V max (load current less than 10 mA); 2 V max (load current 10 to 100 mA)
• Operation Mode: User-selectable Light-ON/Dark-ON, adapting to specific application logic.
• Response Time: Operate or reset: 1 ms max, for precise and timely object detection.
• Ambient Light Immunity:
  • Incandescent Lamp: Up to 3,000 lx
  • Sunlight: Up to 10,000 lx, ensuring reliable operation in various lighting conditions.
• Operating Temperature Range: -40°C to 55°C (with no freezing or condensation), indicating suitability for harsh environments.
• Storage Temperature Range: -40°C to 70°C (with no freezing or condensation).
• Operating Humidity Range: 35% to 85% (with no condensation).
• Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions for 2 hours, confirming robust mechanical integrity.
• Shock Resistance: 500 m/s² (approx. 50G) 3 times each in X, Y, and Z directions, safeguarding against physical impacts.
• Degree of Protection: IEC IP67, guaranteeing excellent protection against environmental elements.
• Weight: Approximately 20 g (including packaging), making it lightweight and easy to handle.

Applications

The Omron E3Z-R86 retro-reflective photoelectric sensor is an incredibly versatile device, finding critical roles across various industrial sectors due to its precision and reliability:

• Conveyor Systems: Precisely detecting the presence and flow of packages, bins, and individual items on fast-moving conveyor belts, optimizing material flow and preventing bottlenecks.
• Packaging Machinery: Essential for ensuring the correct positioning and presence or absence of products and components within packaging lines, significantly reducing errors and waste.
• Automated Assembly Lines: Verifying component placement, orientation, and successful assembly steps, crucial for quality control in automated manufacturing processes.
• Material Handling and Sorting Systems: Monitoring and guiding the movement of materials, facilitating efficient sorting, stacking, and routing of goods in warehouses and distribution centers.
• Door and Gate Control: Providing reliable presence detection for automatic doors, gates, and safety barriers, enhancing operational safety and access control.

Why Choose This Model?

The Omron E3Z-R86 is not just another photoelectric sensor; it's a strategic investment in the efficiency and reliability of your industrial automation processes. Its extended sensing range of up to 4 meters, a key differentiator, provides greater flexibility in system design and object positioning, accommodating more complex layouts than standard sensors. The sensor’s ultra-compact design ensures that it can be seamlessly integrated into space-constrained machinery without compromising performance or requiring extensive modifications. Furthermore, its robust IP67-rated construction, crafted from durable polybutylene terephthalate (PBT), offers exceptional resistance to harsh industrial environments, including exposure to dust and water, thereby ensuring a long operational lifespan and minimizing downtime. With its rapid 1ms response time, the E3Z-R86 guarantees prompt and accurate detection, vital for high-speed applications where every millisecond counts. Choosing the Omron E3Z-R86 means opting for a sensor that combines superior performance, durability, and adaptability, making it an ideal solution for optimizing your automation systems and achieving consistent, reliable results.
