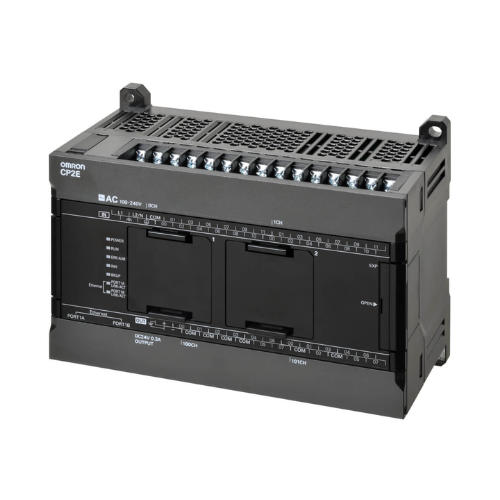

Omron CP2E-N40DT1-D

Overview

The Omron CP2E-N40DT1-D is a high-performance compact Programmable Logic Controller (PLC) engineered for modern industrial automation demands. This robust unit seamlessly integrates advanced control capabilities with flexible connectivity, making it an ideal choice for diverse applications. Featuring 40 I/O points, including 24 digital inputs and 16 PNP transistor outputs, it delivers precise control and efficient data handling. Its dual Ethernet ports facilitate seamless Machine-to-Machine (M2M) communication, while its 20K step program capacity and 4-axis positioning with linear interpolation capability empower sophisticated motion control. The CP2E-N40DT1-D is designed to elevate your industrial processes through enhanced efficiency, reliability, and expanded functional integration.

Key Features

• Integrated I/O for Comprehensive Control:
  • Digital Inputs: 24 channels, compatible with both PNP/NPN configurations, ensuring flexibility across various sensor types.
  • Digital Outputs: 16 channels, PNP transistor type, providing reliable switching for connected devices.
• Expansive Program and Data Capacity:
  • Program Capacity: Supports up to 20K steps, enabling the implementation of complex and intricate automation sequences.
  • Data Memory: 16K words, facilitating efficient storage and processing of critical operational data.
• Dual Ethernet Connectivity for Seamless Integration:
  • Equipped with 2 Ethernet ports (10/100 Mbps) with a built-in switching function, enabling robust M2M communication and easy integration into existing networked systems.
• Advanced Motion Control Capabilities:
  • Supports precise 4-axis positioning with linear interpolation, offering superior control for dynamic applications.
  • High-speed encoder input channels (6 channels, Max 100 kHz) and pulse output frequency (Max 100 kHz) ensure accurate and responsive motion execution.
• Expandable Architecture for Future Growth:
  • Supports up to 3 expansion units, allowing for significant system scalability.
  • Accommodates up to 160 local I/O points and up to 32 analog I/O channels (with appropriate option boards), providing adaptability to evolving project requirements.
• High-Speed Processing: Logic execution time of 0.23 µs ensures rapid response to control inputs, minimizing latencies and optimizing system performance.
• Battery-Free Operation: Utilizes non-volatile memory for program and data retention, significantly reducing maintenance needs and improving operational uptime.
• Integrated Real-Time Clock: Enables precise time-based operations and scheduling without the necessity of external components.
• Wide Operating Temperature Range: Robust design suitable for industrial environments ranging from -20°C to 60°C, ensuring reliable performance in challenging conditions.

Technical Specifications

• Model Number: CP2E-N40DT1-D
• Supply Voltage: 24 VDC
• Input Specifications:
  • Number of Inputs: 24
  • Input Type: PNP/NPN
• Output Specifications:
  • Number of Outputs: 16
  • Output Type: PNP transistor
• Program Capacity: 20K steps
• Data Memory Capacity: 16K words
• Communication Ports:
  • Ethernet: 2 ports (10/100 Mbps) with switching function
• Motion Control Capabilities:
  • Encoder Input Channels: 6
  • Max Encoder Input Frequency: 100 kHz
  • Max Number of Positioning Axes: 4
  • Max Pulse Output Frequency: 100 kHz
• Expansion Capabilities:
  • Max Number of Expansion Units: 3
  • Max Number of Local I/O Points: 160
  • Max Number of Analog I/O Channels: 32 (with appropriate option boards)
• Operating Temperature Range: -20°C to 60°C
• Dimensions: 90 mm (H) × 150 mm (W) × 80 mm (D)
• Weight: Approximately 625 g

Applications

The Omron CP2E-N40DT1-D is a versatile compact PLC suitable for a broad spectrum of industrial applications that demand precision, speed, and reliability:

• Flexible Manufacturing Systems: Enhances adaptability in production lines requiring frequent product changeovers and reconfigurations.
• Traceability Solutions: Facilitates robust data collection and communication, crucial for product tracking, quality assurance, and regulatory compliance.
• Machine Monitoring: Provides real-time insights into machine performance, enabling proactive diagnostics, predictive maintenance, and optimized operational efficiency.
• Material Handling Systems: Precisely controls conveyors, sorters, automated storage and retrieval systems (AS/RS), and other logistics equipment.
• Packaging Machinery: Manages complex packaging processes, ensuring accuracy, speed, and consistency in various packaging lines.

Why Choose This Model?

The Omron CP2E-N40DT1-D stands out as a superior choice for several compelling reasons:

• Integrated Performance: Offers a powerful combination of 40 integrated I/O points, advanced motion control for up to 4 axes, and high-speed processing, all within a compact footprint.
• Seamless Communication: Dual Ethernet ports ensure effortless integration into modern networked environments, supporting M2M communication and data exchange critical for Industry 4.0 initiatives.
• Scalability and Future-Proofing: With support for up to 3 expansion units and a high number of local and analog I/O points, this PLC can grow with your operational needs, protecting your investment.
• Robust Design: Engineered for reliability, featuring battery-free operation to reduce maintenance and a wide operating temperature range for consistent performance in harsh environments.
• Omron Quality: As a product from Omron, a leader in industrial automation, you benefit from a legacy of quality, innovation, and dependable support.

Order Now

Elevate your industrial automation capabilities with the Omron CP2E-N40DT1-D Compact PLC. Experience enhanced control, seamless communication, and robust performance in your applications. Contact us today to place your order or to learn more about how this advanced PLC can transform your operations.
