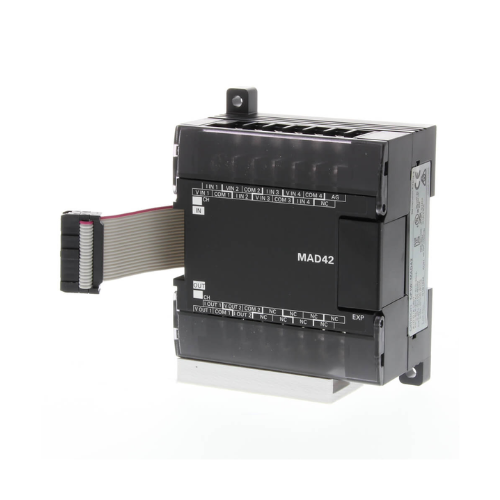

Omron CP1W-MAD42

Overview

The Omron CP1W-MAD42 is a high-performance analog input/output expansion module meticulously engineered to seamlessly integrate with Omron's CP1 Series Programmable Logic Controllers (PLCs). This module significantly enhances the capabilities of your PLC system by providing 4 channels of analog input and 2 channels of analog output, both boasting a remarkable 14-bit resolution. Designed for versatility, the CP1W-MAD42 supports a comprehensive array of standard voltage and current signal ranges, making it an indispensable component for applications demanding precise and reliable analog signal processing in complex industrial environments. Its robust design and advanced features ensure accurate data acquisition and control, empowering engineers and automation specialists to achieve optimal operational efficiency and process integrity. This module is a crucial tool for expanding the functionality of your existing CP1 PLC infrastructure without the need for extensive system overhauls.

Key Features

• Extensive Analog I/O: Equipped with 4 independent analog input channels and 2 dedicated analog output channels, facilitating versatile signal handling.
• High-Resolution Performance: Delivers superior accuracy with 14-bit resolution for both input and output signals, ensuring precise measurement and control.
• Broad Signal Compatibility: Supports a wide spectrum of input signal ranges including -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, and 4 to 20 mA.
• Flexible Output Ranges: Accommodates diverse output requirements with ranges such as -10 to 10 V, 0 to 10 V, 1 to 5 V, 0 to 20 mA, and 4 to 20 mA.
• Space-Saving Design: Features compact dimensions (90 mm (H) × 86 mm (W) × 50 mm (D)), allowing for efficient panel space utilization.
• Effortless Integration: Engineered for direct and hassle-free connection to Omron CP1 Series PLCs, ensuring rapid system expansion and commissioning.
• Reliable Operation: Constructed for durability and consistent performance in demanding industrial settings, contributing to enhanced system reliability.

Technical Specifications

• Model Number: CP1W-MAD42
• Series: CP1 Series
• Number of Analog Inputs: 4
• Number of Analog Outputs: 2
• Input Signal Ranges: -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
• Output Signal Ranges: -10 to 10 V, 0 to 10 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
• Resolution: 14-bit (for both inputs and outputs)
• Product Dimensions: 90 mm (H) × 86 mm (W) × 50 mm (D)
• Product Weight: Approximately 260 g
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -20°C to +75°C
• Operating Humidity: 10% to 90% (non-condensing)
• Certifications: CE, UL, RoHS

Applications

The Omron CP1W-MAD42 is an ideal solution for a diverse range of industrial applications requiring precise analog signal management:

• Advanced Process Control: Enables accurate monitoring and intricate control of critical analog variables such as temperature, pressure, flow, and level in various manufacturing and processing plants.
• Automated Machine Integration: Facilitates seamless integration of a multitude of analog sensors and transducers into machine automation systems, enhancing control and operational feedback.
• High-Resolution Data Acquisition: Provides a robust platform for collecting high-fidelity analog data, essential for detailed analysis, quality assurance, and predictive maintenance strategies.
• Optimized Energy Management: Supports rigorous monitoring and precise control of energy consumption parameters, contributing to significant energy savings and improved operational efficiency.
• Environmental Monitoring: Ideal for applications involving the measurement and control of environmental parameters, ensuring compliance and optimal conditions.

Why Choose This Model?

The Omron CP1W-MAD42 stands out as a superior choice for expanding your automation capabilities due to its unparalleled features:

• Extended PLC Functionality: Dramatically expands the analog input and output capabilities of your existing Omron CP1 Series PLCs, unleashing new levels of control and data handling.
• Unwavering Precision: The 14-bit resolution guarantees exceptional accuracy in both signal acquisition and output, ensuring that your control systems operate with the highest degree of fidelity.
• Universal Signal Adaptability: Its broad support for various voltage and current signal ranges makes it incredibly adaptable to a vast array of sensor types and industrial measurement standards, reducing the need for multiple specialized modules.
• Modular Efficiency: Despite its powerful capabilities, the CP1W-MAD42 boasts a compact and modular design, allowing for efficient use of control panel space while providing significant expansion to your PLC system. This design also simplifies installation and maintenance.
• Omron Reliability: As an Omron product, you are investing in a legacy of industrial excellence, renowned for robust performance, durability, and long-term operational stability.

Order Now

Elevate your industrial automation processes with the precision and reliability of the Omron CP1W-MAD42. This essential analog I/O expansion module is available for immediate shipping worldwide, ensuring prompt delivery to meet your project deadlines. For more options to enhance your CP1 Series PLCs, please return to our comprehensive selection of Omron CP1W Expansion Units. To explore a wider array of robust and dependable automation solutions, delve into our full range of Omron PLCs | Programmable Logic Controllers. Empower your control systems today with Omron's cutting-edge technology.
