Omron CP1W-ADB21

Overview

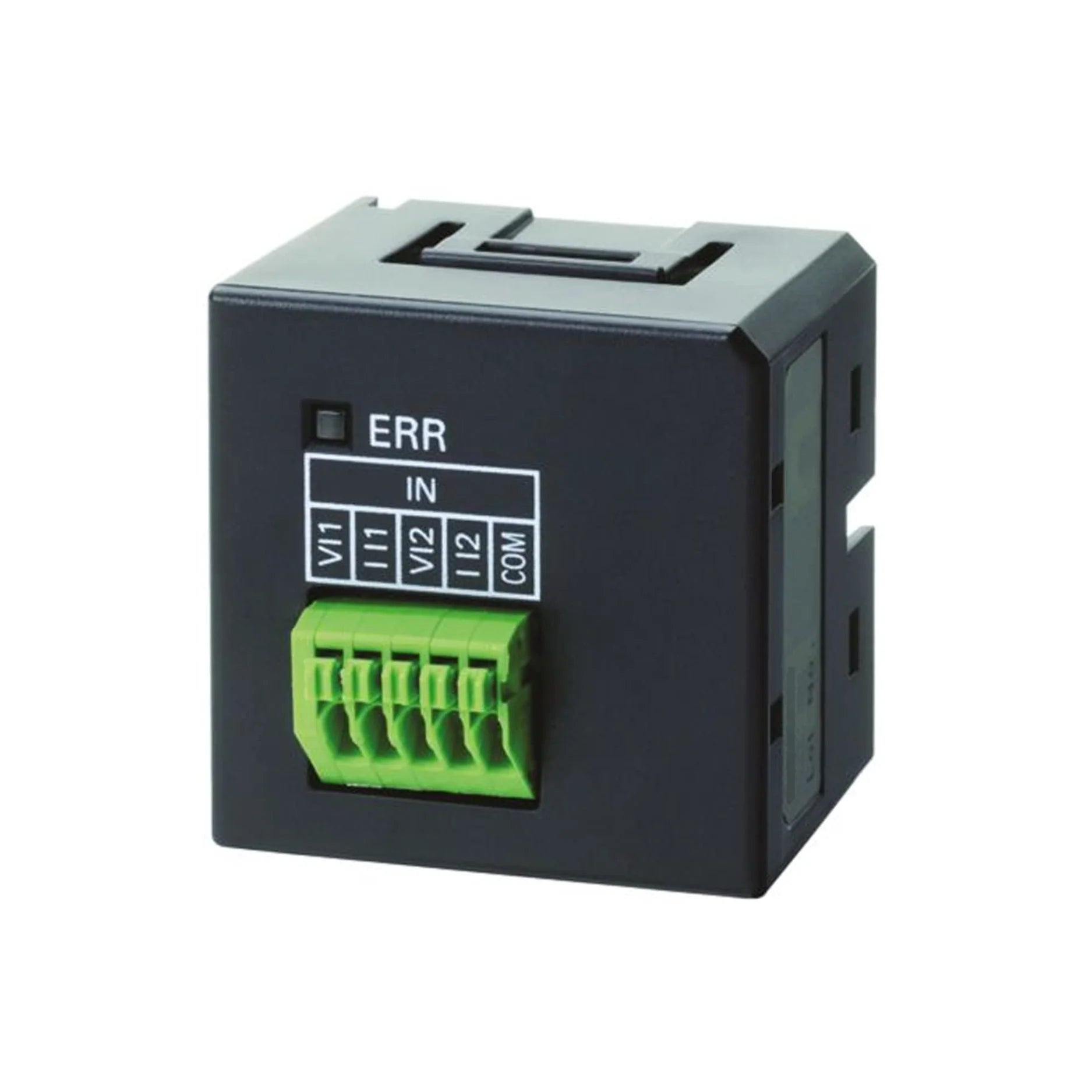

Unlock advanced control and monitoring capabilities for your industrial automation systems with the Omron CP1W-ADB21 2-Channel Analog Input Option Board. Specifically engineered for seamless integration with Omron CP1L-EL/EM series Programmable Logic Controllers (PLCs), this essential expansion module significantly enhances your PLC's ability to acquire and process analog signals. Supporting both 0–10 VDC and 4–20 mA input ranges, the CP1W-ADB21 delivers high-resolution data acquisition, making it an indispensable tool for applications demanding precise analog signal measurement and control.

Key Features

• Dual Analog Input Channels: Equipped with two independent input channels, enabling simultaneous and accurate measurement of two distinct analog signals, thus optimizing data collection efficiency.
• Versatile Input Range Support:
  • Voltage Input: Accurately measures 0 to 10 VDC signals with an impressive 1/4000 resolution, ideal for a wide array of sensor outputs.
  • Current Input: Handles 4 to 20 mA signals with a robust 1/2000 resolution, providing reliable readings for industrial current loops.
• Exceptional Accuracy: Engineered for high-accuracy data acquisition, ensuring that critical control processes receive precise and reliable input data, minimizing errors and enhancing system performance.
• Compact and Integrated Design: Meticulously designed for perfect compatibility and seamless integration into CP1L-EL/EM PLCs. Its compact form factor ensures that it adds critical functionality without increasing the overall footprint of your existing PLC setup.
• Effortless Installation: Boasts a user-friendly design that allows for direct mounting onto the PLC, significantly simplifying the installation process and reducing setup time, enabling quick system expansion.

Technical Specifications

• Model Number: CP1W-ADB21
• Number of Analog Inputs: 2
• Input Signal Ranges:
  • Voltage: 0 to 10 VDC (1/4000 resolution)
  • Current: 4 to 20 mA (1/2000 resolution)
• Input Impedance:
  • Voltage Input: 1 MΩ minimum
  • Current Input: Approximately 250 Ω
• Conversion Time: 2 ms per point
• Overall Accuracy:
  • Voltage Input: ±0.6% of full scale at 0 to 55°C
  • Current Input: ±0.8% of full scale at 0 to 55°C
• Power Consumption: 5 VDC, 40 mA max.
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 75°C
• Operating Humidity Range: 10% to 90% (non-condensing)
• Mounting Method: Directly onto CP1L-EL/EM PLCs
• Certifications: CE

Applications

• Precision Process Monitoring: Ideal for accurately measuring critical analog variables such as temperature, pressure, flow, and level in diverse industrial processes, ensuring optimal operational parameters.
• Advanced Machine Automation: Facilitates precise and reliable data acquisition from a wide range of analog sensors, significantly enhancing machine control, diagnostics, and predictive maintenance capabilities.
• Efficient Energy Management: Enables comprehensive monitoring and insightful analysis of energy consumption by seamlessly interfacing with various analog transducers, supporting energy efficiency initiatives and cost reduction.

Why Choose This Model?

The Omron CP1W-ADB21 stands out as a superior choice for enhancing your PLC systems due to its unparalleled combination of performance, compatibility, and ease of use. It's not just an expansion board; it's an investment in the precision and reliability of your industrial operations.

• Expanded Input Capability: This board dramatically expands the analog input capacity of your CP1L-EL/EM PLCs, allowing for the integration of more sensors and comprehensive data collection, which is crucial for complex automation tasks.
• High-Resolution Measurements: Benefit from highly detailed and accurate analog signal readings. This level of precision is absolutely essential for critical control applications where even slight deviations can impact performance and safety.
• Flawless Integration: Designed specifically for seamless compatibility with Omron CP1L-EL/EM PLCs, ensuring an effortless installation process and guaranteed reliable operation within your existing Omron ecosystem.
• Space-Saving Design: Gain significant functionality without compromising control panel space. Its compact design ensures that your PLC system remains efficient and manageable, even with expanded capabilities.
• Omron Quality and Reliability: As an Omron product, the CP1W-ADB21 inherits the brand's renowned reputation for quality, durability, and long-term reliability in demanding industrial environments.

Order Now

Future-proof your industrial control systems with the Omron CP1W-ADB21 2-Channel Analog Input Option Board. This powerful and precise module is available for immediate shipping worldwide.

For more options to enhance your Omron systems, explore our complete range of Omron CP1W Expansion Units.

Discover innovative and reliable automation solutions for all your industrial control needs by browsing our full selection of Omron PLCs | Programmable Logic Controllers.
