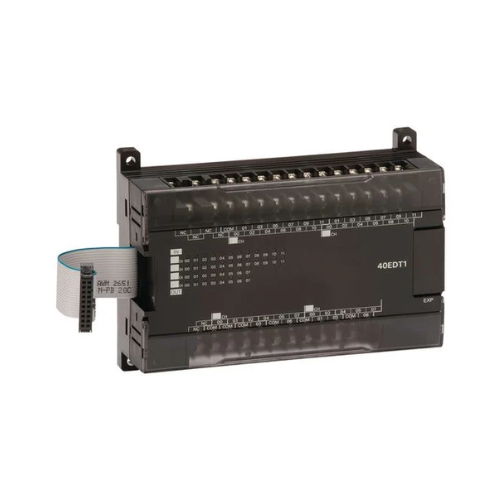

Omron CP1W-40EDT1

Overview

Elevate your industrial automation capabilities with the Omron CP1W-40EDT1 Digital I/O Expansion Module. Designed specifically to seamlessly integrate with Omron CP1 series PLCs, this powerful module significantly extends your system's input and output capacity. Featuring 24 versatile digital inputs and 16 robust PNP transistor outputs, the CP1W-40EDT1 provides the precision and control necessary for demanding industrial equipment, making it an indispensable component for sophisticated automation, meticulous machine control, and diverse process applications. Its intelligent design ensures optimal performance and reliability, empowering your operations with enhanced flexibility and efficiency.

Key Features

• 24 High-Performance Digital Inputs: Accommodates 24V DC signals with configurable support for both PNP and NPN input types, offering exceptional versatility for various sensor and control applications.
• 16 Powerful PNP Transistor Outputs: Delivers a substantial 0.3 A per output, making it perfectly suited for directly driving an array of critical components such as solenoids, relays, and indicator lights with unwavering reliability.
• Rapid Configurable Response Time: Benefit from an adjustable OFF/ON delay ranging from 0 to 32 milliseconds, allowing for the fine-tuning of signal timing to achieve optimized operational efficiency and responsiveness in dynamic industrial environments.
• Space-Saving Compact Design: Engineered for efficient integration into control panels, this module boasts compact dimensions of 90 mm (H) x 150 mm (W) x 50 mm (D) and a lightweight profile of approximately 320 g, maximizing valuable cabinet space.
• Effortless Seamless Integration: Ensures full compatibility and straightforward connectivity with all Omron CP1 series PLCs, drastically simplifying system expansion and reducing installation complexities.

Technical Specifications

• Model: CP1W-40EDT1
• Digital Inputs: 24 points (24 VDC, configurable PNP/NPN)
• Digital Outputs: 16 PNP transistor outputs (rated 4.5-30 V, 0.3 A per point)
• Response Time: Configurable from 0 to 32 ms
• Power Supply: 24 VDC
• Mounting: Standard DIN rail
• Dimensions: 90 mm (H) x 150 mm (W) x 50 mm (D)
• Weight: Approximately 320 g

Applications

• Advanced Industrial Automation: Significantly expands the I/O capacity for complex PLC-based control systems, facilitating the management of larger and more intricate processes.
• Precise Process Control: Perfectly suited for deployment in critical applications such as high-speed assembly lines, efficient packaging machinery, and robust material handling systems, ensuring consistent and accurate operations.
• Intelligent Building Automation: An ideal solution for managing sophisticated HVAC systems, dynamic lighting controls, and comprehensive security system management within modern infrastructure.

Why Choose This Model?

The Omron CP1W-40EDT1 stands out as an exceptionally reliable and highly flexible I/O expansion module, meticulously engineered to meet the stringent demands of contemporary industrial environments. Its rapid response times ensure immediate and accurate reactions to operational changes, while its compact design allows for efficient utilization of panel space. The promise of seamless integration with Omron CP1 series PLCs guarantees a straightforward and hassle-free system upgrade or expansion. Furthermore, its robust PNP transistor outputs and the highly versatile input configuration solidify its position as an essential and indispensable component for achieving superior control and efficiency in modern industrial automation setups. Investing in the CP1W-40EDT1 means investing in enhanced performance, unwavering reliability, and future-proof scalability for your automation infrastructure.

Order Now

Ready to enhance your automation system? Secure your Omron CP1W-40EDT1 Digital I/O Expansion Module today and experience the difference in performance and reliability. Benefit from our fast shipping and worldwide delivery options, ensuring your critical components reach you promptly, wherever you are. For additional choices within this versatile series, make sure to return to our Omron CP1W Expansion Units. Additionally, broaden your search for comprehensive and dependable industrial control solutions by exploring our full range of Omron PLCs | Programmable Logic Controllers. Empower your operations with the trusted quality of Omron.
