Omron CP1W-20EDT1

Overview

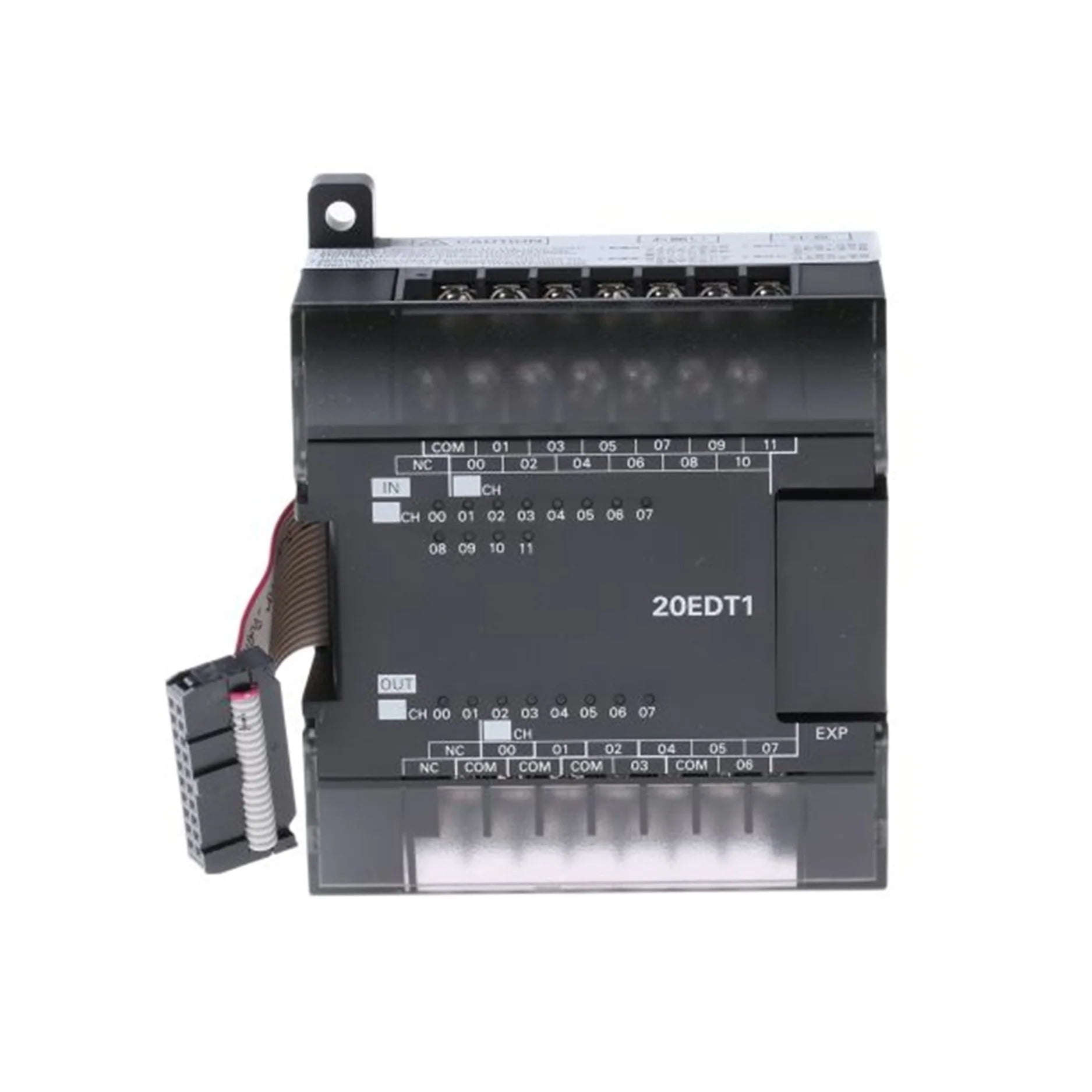

Unlock superior digital control and expand the capabilities of your Omron CP1 Series PLC with the high-performance Omron CP1W-20EDT1 I/O Expansion Module. Engineered for precision and reliability, this 20-point module seamlessly integrates into your existing automation infrastructure, providing an essential upgrade for demanding industrial applications. With its robust design and advanced features, the CP1W-20EDT1 ensures efficient and accurate signal processing, making it an indispensable component for modern control systems where space and performance are critical.

Designed to meet the rigorous demands of industrial environments, the CP1W-20EDT1 offers a perfect balance of compact size and powerful functionality. It extends your PLC’s reach, allowing for more comprehensive control over various processes and equipment. This module is an intelligent choice for engineers and system integrators seeking unique, SEO-optimized, and compelling solutions for their automation challenges.

Key Features

• 20-Point Digital I/O: Provides comprehensive control with 12 versatile 24V DC digital inputs and 8 high-speed NPN transistor digital outputs.
• Fast Output Switching: Optimized for high-speed control systems, ensuring rapid response times for critical applications.
• Flexible Input Compatibility: Supports both Sink and Source (PNP/NPN) input types for broad compatibility with various sensors and devices.
• Space-Saving Design: Its compact form factor is perfect for maximizing panel space in crowded industrial enclosures.
• Versatile Mounting Options: Easily integrates into any setup with both DIN Rail and direct screw mounting capabilities.
• Robust Industrial Construction: Built to Omron’s renowned quality standards, ensuring reliable operation in harsh industrial conditions.

Technical Specifications

• Model Number: CP1W-20EDT1
• Series: CP1 Series
• Digital Inputs: 12 points, 24V DC (operating range 20.4V to 26.4V)
• Digital Outputs: 8 NPN transistor outputs
• Output Current: 0.1A per point, with a total of 0.8A per common
• Output Voltage (DC): 5V to 30V DC
• Input Impedance: 4.3 kΩ
• ON Voltage Level: 14.4V DC minimum
• OFF Voltage Level: 5V DC maximum
• Response Time: 10 ms maximum
• Isolation: Photo-coupler isolation between input/output circuits and internal circuits for enhanced safety and noise immunity.
• Mounting: Flexible DIN rail or direct screw mounting
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -20°C to +75°C
• Weight: Approximately 250 g
• Certifications: CE, UL, RoHS compliant, ensuring global standards are met.

Applications

• Industrial Automation: Broadens the control reach for a diverse range of machinery and equipment within manufacturing and processing plants.
• Packaging Lines: Facilitates the integration of additional sensors and actuators, enabling more intricate and high-speed packaging processes.
• Material Handling Systems: Supports advanced control for conveyor belts, robotic arms, and sorting mechanisms, enhancing efficiency and throughput.
• OEM Control Panels: Provides a versatile, space-efficient, and reliable digital I/O solution for various custom-built control panels.
• Process Control: Ideal for applications requiring precise monitoring and control of various parameters in chemical, food and beverage, and pharmaceutical industries.

Why Choose This Model?

The Omron CP1W-20EDT1 stands out as a premier choice for extending your CP1 Series PLC system for several compelling reasons:

• Unmatched Speed and Precision: Its high-speed NPN transistor outputs deliver rapid switching essential for modern, time-critical automation tasks, minimizing latency and maximizing operational efficiency.
• Seamless Compatibility: Engineered for perfect integration with Omron CP1H, CP1L, and CP1E PLC models, guaranteeing a smooth and hassle-free expansion of your existing system.
• Compact Resilience: This module inherits Omron’s legacy of quality, offering a robust and compact solution that thrives in challenging industrial environments without compromising on performance or reliability.
• Simplified Setup: Designed for intuitive installation, featuring tool-free wiring and a modular structure that significantly cuts down on setup and maintenance times.
• Global Compliance: With CE, UL, and RoHS certifications, the CP1W-20EDT1 meets international safety and environmental standards, ensuring peace of mind for worldwide deployment.

Order Now

Enhance your automation capabilities today with the Omron CP1W-20EDT1 I/O Expansion Module. This essential component is available for immediate worldwide shipping, ensuring your projects stay on schedule. To complement your setup and achieve optimal performance, inquire about our extensive selection of compatible Omron CP1 PLCs, relay modules, and wiring accessories.

Discover more options for expanding your CP1 Series systems by exploring our comprehensive range of Omron CP1W Expansion Units. For a complete overview of our trusted industrial automation solutions, delve into our full catalog of Omron PLCs | Programmable Logic Controllers. Empower your control systems with Omron's industry-leading technology and reliability.
