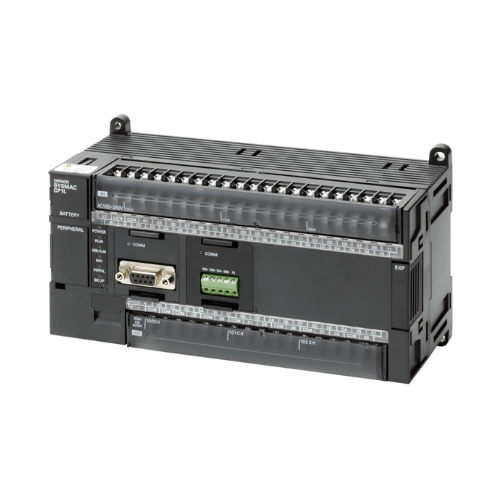

Omron CP1L-M60DT1-D

Overview

The Omron CP1L-M60DT1-D stands as a robust and versatile compact programmable logic controller (PLC) within the esteemed Omron CP1L series. Engineered for precision and efficiency, this model boasts an impressive 60 I/O points, configured with 36 digital inputs and 24 PNP transistor outputs. Operating seamlessly on a 24V DC power supply, it offers a substantial program capacity of 10K steps coupled with a generous 32K words of data memory. This makes the CP1L-M60DT1-D an ideal solution for a diverse array of automation tasks across various industries.

Designed to meet the demands of modern industrial environments, this compact PLC integrates advanced functionalities such as high-speed counters and precision pulse outputs. These features are crucial for applications requiring exact positioning, intricate motion control, or sensitive speed regulation. Its compact footprint, combined with a suite of powerful features, positions the CP1L-M60DT1-D as a go-to choice for sophisticated machine automation in sectors like packaging, material handling, and assembly line management.

Key Features

• Total I/O Points: 60 (36 digital inputs, 24 PNP transistor outputs) provides comprehensive control.
• Power Supply: Reliable 24V DC operation for industrial environments.
• Program Capacity: 10K steps allows for complex program logic.
• Data Memory: 32K words for extensive data storage and manipulation.
• High-Speed Counters: Supports up to 4 axes at 100 kHz for precise event counting.
• Pulse Outputs: 2 axes at 100 kHz, enabling accurate motion and position control.
• Communication Ports: Built-in USB for straightforward programming and real-time monitoring.
• Expansion Capability: Supports up to 3 expansion units, extending local I/O points to a maximum of 180 for growing applications.

Technical Specifications

• Model Number: CP1L-M60DT1-D
• Input Type: Versatile PNP/NPN compatibility.
• Output Type: PNP transistor for reliable switching.
• Logic Execution Time: Rapid 0.55 µs per basic instruction ensures swift response times.
• Encoder Input Channels: 4 channels with a maximum input frequency of 100 kHz for precise feedback.
• Pulse Output Frequency: Up to 100 kHz for dynamic motion control.
• Operating Temperature Range: 0 to 55°C, suitable for various industrial conditions.
• Dimensions: Height: 90 mm, Width: 195 mm, Depth: 85 mm – compact for efficient space utilization.
• Weight: Approximately 680 g, lightweight for easy integration.

Applications

• Machine Automation: Optimally suited for controlling and streamlining packaging machinery, intricate conveyor systems, and precise assembly lines.
• Process Control: Excels in applications demanding stringent timing and sequential operations, ensuring consistent process flow.
• Building Automation: A versatile solution for advanced lighting control systems, efficient HVAC management, and robust security installations within modern buildings.

Why Choose This Model?

The Omron CP1L-M60DT1-D stands out as a superior choice for a multitude of reasons. Its design perfectly balances a high number of I/O points within an exceptionally compact form factor, making it an invaluable asset for applications where space is at a premium without compromising functionality. This PLC delivers high-performance capabilities, characterized by its remarkably fast execution time and comprehensive support for high-speed counters and pulse outputs, ensuring unparalleled precision and responsiveness in control operations.

Furthermore, its inherent expandability offers a significant advantage. The flexibility to integrate additional I/O points and functionalities as your application evolves means a future-proof investment. This adaptability ensures that the CP1L-M60DT1-D can seamlessly scale to meet growing demands, making it a reliable and cost-effective solution for both current and future automation challenges. Choose the CP1L-M60DT1-D for a compact yet powerful solution that brings efficiency and precision to your industrial automation needs.

Order Now

Elevate your automation system's capabilities by procuring the Omron CP1L-M60DT1-D compact PLC today. This essential component is currently in stock and available for immediate shipment, ensuring no delays in enhancing your operational efficiency. Take the first step towards optimized control and precision.

Explore the full range of Omron CP1L PLC Series to discover more innovative solutions. For a broader perspective on industrial control, delve into our comprehensive collection of Omron PLCs | Programmable Logic Controllers, designed to provide reliable, cutting-edge solutions for machine control, data monitoring, and diverse automation applications.
