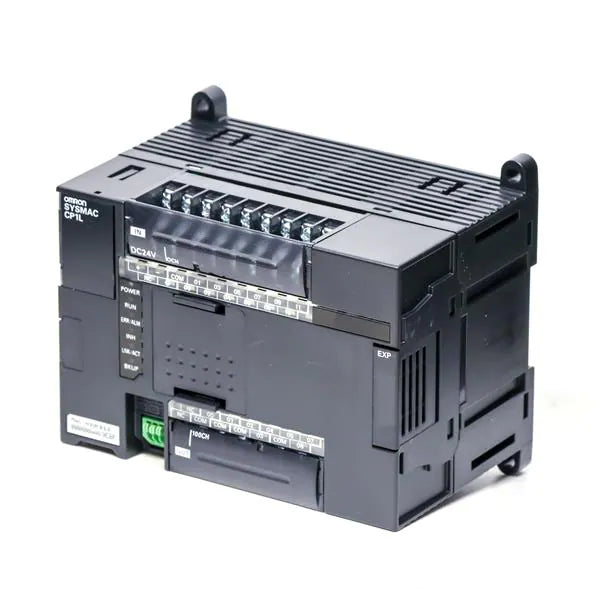

Omron CP1L-M30DT1-D

Overview

The Omron CP1L-M30DT1-D stands as a robust and highly efficient compact Programmable Logic Controller (PLC) engineered to deliver precise control and automation across a spectrum of industrial environments. This versatile unit boasts 30 integrated I/O points, thoughtfully configured with 18 digital inputs and 12 PNP transistor outputs, providing the essential control capacity for intricate machinery and systems. Designed for seamless integration, it operates reliably on a 24 VDC power supply and includes convenient USB and serial communication capabilities, making it an ideal solution for modern automation challenges where space and performance are paramount. From optimizing packaging lines to streamlining material handling, the CP1L-M30DT1-D offers a perfect blend of power, flexibility, and reliability, ensuring enhanced operational efficiency and control accuracy.

Key Features

• Integrated I/O Configuration: Equipped with 18 versatile digital inputs and 12 high-performance PNP transistor outputs to manage diverse applications effectively.
• Robust Power Supply: Operates efficiently and consistently with a standard 24 VDC power input, suitable for industrial settings.
• Ample Program Capacity: Features a generous 10K steps program memory, allowing for complex control logic and advanced automation sequences.
• High-Speed Counter Capabilities: Supports 4 axes with speeds up up to 100 kHz, crucial for precise motion control and measurement tasks.
• Accurate Pulse Outputs: Provides 2 axes of pulse outputs, also at up to 100 kHz, for fine-tuned control of stepper and servo motors.
• Flexible Communication Ports: Includes a built-in USB port for convenient programming and supports optional serial ports via expansion units for broader connectivity.
• Expandable Architecture: Designed for future growth, allowing connection of up to 3 expansion units to achieve a maximum of 160 I/O points, adapting to evolving system requirements.
• Versatile Mounting Options: Can be securely mounted on a DIN rail or directly to a panel, offering flexibility in control panel design.
• Intuitive Programming Software: Programmed using CX-Programmer, a powerful and user-friendly component of the comprehensive CX-One suite, simplifying development and maintenance.
• Global Certifications: Complies with international standards, including CE, UL, cUL, and KC, ensuring reliability and safety in various regions.

Technical Specifications

• Model: CP1L-M30DT1-D
• Input Type: 24 VDC, compatible with both PNP and NPN sensors for broad application flexibility.
• Output Type: PNP transistor (sourcing), providing reliable control signals to external devices.
• Output Current: Each output point can deliver 0.3 A, with a total of 0.9 A per common, preventing overload and ensuring stable operation.
• Response Time: Achieves rapid input ON/OFF delay times of 0.1 ms maximum, critical for high-speed applications.
• Memory: 10K steps of program capacity, ideal for mid-sized automation projects.
• Clock Function: Features a built-in real-time clock for accurate time-based control and event logging.
• Ambient Operating Temperature: Operates reliably within a temperature range of 0°C to +55°C, suitable for typical industrial environments.
• Dimensions: Approximately 130 mm (W) × 100 mm (H) × 85 mm (D), ensuring a compact footprint.
• Weight: Approximately 610 g, facilitating easy handling and installation.

Applications

The Omron CP1L-M30DT1-D is an exceptionally adaptable PLC, making it the ideal choice for a diverse array of industrial applications requiring precision, speed, and reliability. Its robust feature set enables it to effectively manage complex processes across various sectors:

• Packaging Machinery: Optimizes control for filling, sealing, and labeling processes, enhancing throughput and accuracy.
• Conveyor Systems: Manages material flow, sorting, and routing with high efficiency, reducing bottlenecks and improving logistics.
• Material Handling Equipment: Provides precise control for robotics, automated guided vehicles (AGVs), and stacking systems, ensuring smooth and safe operations.
• Textile Machines: Enables intricate control over weaving, knitting, and dyeing processes, leading to consistent quality and reduced waste.
• Food and Beverage Processing: Ideal for managing processes such as mixing, baking, and bottling, adhering to strict hygiene and quality standards.
• OEM Equipment Control: A perfect embedded solution for original equipment manufacturers needing a reliable and compact automation core for their specialized machinery.

Why Choose This Model?

Opting for the Omron CP1L-M30DT1-D means investing in a solution that brings tangible benefits to your automation endeavors. This compact PLC is meticulously engineered to provide a powerful blend of performance, flexibility, and long-term reliability.

• Space-Saving Compact Design: Its small footprint is a significant advantage in control panels where space is often at a premium, allowing for more streamlined and efficient layouts without compromising on functionality.
• Flexible I/O Configuration: With 18 digital inputs and 12 PNP transistor outputs, this model offers a highly adaptable I/O setup that can be tailored to meet a wide range of application requirements, from simple control tasks to more intricate automated sequences.
• High-Speed Processing Capabilities: Engineered for efficiency, the CP1L-M30DT1-D can handle complex automation tasks with remarkable speed, ensuring that your machinery operates at peak performance and that critical processes are executed without delay.
• Exceptional Expandability: The ability to connect up to three expansion units, reaching a total of 160 I/O points, provides a future-proof solution. This scalability ensures that the PLC can seamlessly adapt to evolving system requirements and growth, protecting your initial investment.
• Reliable Communication Options: Featuring a built-in USB port for easy programming and supporting optional serial ports via expansion, this model guarantees robust and versatile connectivity. This ensures smooth data exchange and integration with other systems, fostering an interconnected automation environment.

The Omron CP1L-M30DT1-D is not just a component; it is a strategic asset for achieving sophisticated and dependable industrial automation.

Order Now

Enhance your industrial automation capabilities with the Omron CP1L-M30DT1-D Compact PLC. Experience superior control, unwavering reliability, and scalable performance that empowers your operations. Explore our full range of Omron PLCs | Programmable Logic Controllers to discover more innovative solutions for machine control, data monitoring, and advanced automation applications. Secure your competitive edge—order the Omron CP1L-M30DT1-D today and elevate your system's efficiency and precision.
