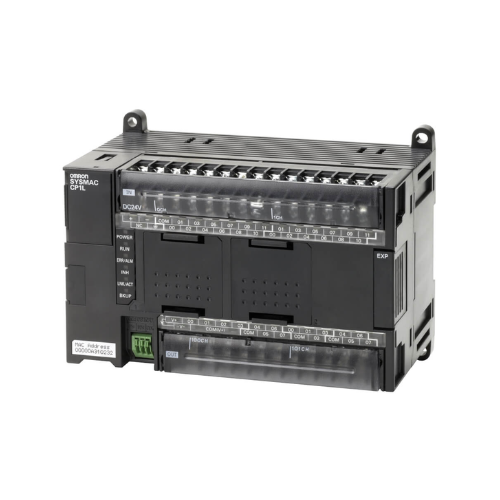

Omron CP1L-EM40DT1-D

Overview

The Omron CP1L-EM40DT1-D is a robust and highly efficient Compact Programmable Logic Controller (PLC) engineered to meet the demanding requirements of modern machine automation and intricate industrial control applications. This exceptional device integrates 40 I/O points, a built-in Ethernet port, and high-speed transistor outputs into a remarkably small form factor. It delivers unparalleled efficiency in control operations and seamless communication capabilities, making it an indispensable component for optimizing automation processes.

Designed for versatility and performance, the CP1L-EM40DT1-D empowers engineers and system integrators to achieve precise control and real-time data exchange, thereby enhancing productivity and operational reliability across various industrial environments. Its compact design does not compromise on power, delivering advanced functionality typically found in larger, more complex systems.

Key Features

• 40 Built-in I/O: This configuration includes 24 digital inputs and 16 high-speed transistor outputs, providing ample connectivity for diverse automation tasks.
• Integrated Ethernet Port: Facilitates remote monitoring, robust network communication, and streamlined data acquisition for enhanced operational visibility.
• High-Speed Transistor Outputs: Ensures precise and rapid switching capabilities, crucial for time-sensitive automation tasks, motion control, and high-speed machinery.
• Expandable Design: Offers exceptional flexibility with compatibility for both CP1W and CJ1W expansion modules, allowing for future system growth and adaptation to evolving application needs.
• Pulse Output Functionality: Enables precise control of stepper and servo motors through accurate pulse train outputs, essential for advanced motion control applications.
• Built-in RS-232C & RS-485 Communication Ports: Provides versatile and flexible connectivity options for integrating with a wide array of legacy and modern industrial devices and systems.
• Advanced Programming Options: Supports intuitive ladder logic programming via the powerful CX-Programmer software, simplifying development and troubleshooting for engineers.

Technical Specifications

• Model: CP1L-EM40DT1-D
• Number of Inputs: 24 digital inputs
• Number of Outputs: 16 transistor outputs (NPN or PNP selectable for application flexibility)
• Output Type: Transistor (Sink/Source)
• Power Supply: 24V DC for reliable industrial operation
• Communication Interfaces:
  • Ethernet (1 port)
  • RS-232C (1 port)
  • RS-485 (1 port)
• High-Speed Counter: 100 kHz (4 channels) for precise timing and event counting
• Pulse Output: 100 kHz (4 channels) for advanced motor control
• Program Capacity: 10k steps, providing ample space for complex control logic
• Memory: 32k words data memory for robust data storage and retrieval
• Expansion Modules: Supports CP1W & CJ1W modules, offering extensive expandability
• Mounting Type: Flexible DIN rail or panel mount options for easy installation
• Operating Temperature: 0 to 55°C, suitable for typical industrial environments
• Storage Temperature: -20 to 75°C, ensuring durability during transport and storage
• Certifications: CE, cULus, RoHS compliant, affirming international standards for safety and environmental responsibility

Applications

• Industrial Automation: Perfectly suited for the precise control and management of manufacturing lines, assembly processes, and automated equipment, enhancing overall production efficiency.
• Machine Control: Optimally designed for sophisticated motion control, high-speed packaging machinery, and efficient conveyor systems, ensuring smooth and reliable operation.
• Remote Monitoring & Data Logging: Leverages its integrated Ethernet capabilities to facilitate real-time data exchange, enabling proactive monitoring and comprehensive data logging for informed decision-making.
• Stepper & Servo Motor Control: Utilizes its advanced pulse output functionality to achieve highly accurate and repeatable positioning for stepper and servo motors, critical for precision applications.

Why Choose This Model?

The Omron CP1L-EM40DT1-D stands out as an exceptionally powerful and adaptable compact PLC. Its combination of integrated Ethernet connectivity, high-speed transistor outputs, and extensive expandability makes it an ideal solution for a broad spectrum of industrial automation challenges. This model ensures not only precise control but also superior communication, vital for contemporary industrial operations.

Its robust features, coupled with Omron's renowned reliability and quality, position the CP1L-EM40DT1-D as a preferred choice for experienced machine builders and discerning system integrators who demand performance, flexibility, and long-term stability in their critical applications. Invest in a PLC that drives efficiency and innovation.

Order Now

Experience the superior control and connectivity of the Omron CP1L-EM40DT1-D. Benefit from our fast shipping and worldwide delivery options to get your essential automation components swiftly. For more options within this cutting-edge series, we invite you to return to the Omron CP1L PLC Series collection.
