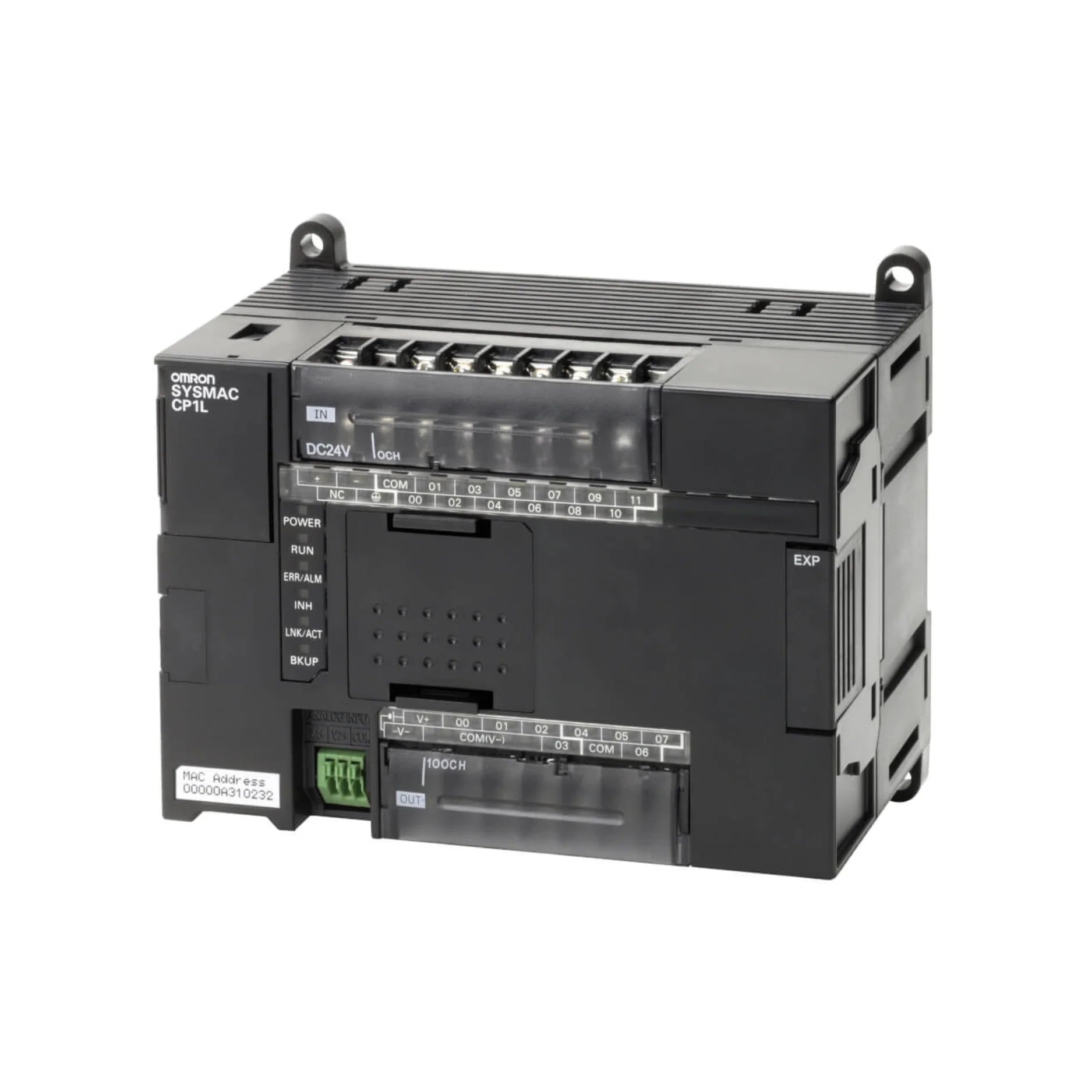

Omron CP1L-EL20DR-D

Overview

Elevate your automation projects with the Omron CP1L-EL20DR-D, a high-performance 20 I/O compact Programmable Logic Controller (PLC) meticulously engineered for reliability and flexibility. This robust unit seamlessly integrates 12 digital inputs and 8 relay outputs, providing precise control for a wide array of applications. Designed with modern industrial demands in mind, it boasts integrated Ethernet connectivity for streamlined networking and remote access, alongside a convenient USB port for effortless programming. The Omron CP1L-EL20DR-D is an ideal solution for small to mid-sized automation tasks, offering exceptional scalability through its compatibility with both CP1W and CJ1W expansion units. Experience the renowned Omron quality and innovative design, making this PLC a cornerstone for efficient and dependable control systems.

Key Features

• Total I/O: 20 points (12 Digital Inputs, 8 Relay Outputs)
• Integrated Connectivity: Built-in Ethernet port for advanced networking and remote diagnostics.
• User-Friendly Programming: USB port ensures quick and easy connection for program uploads and downloads.
• Outstanding Expandability: Fully compatible with Omron CP1W and CJ1W I/O expansion units, allowing for future system growth up to 160 I/O points.
• Ample Program Capacity: Features a substantial 10K steps, accommodating complex control logic.
• Generous Data Memory: Equipped with 10K words of data memory to store essential process parameters and variables.
• Space-Saving Design: Compact form factor with DIN rail mounting for efficient panel space utilization.
• Reliable Relay Outputs: 8 high-quality relay outputs, capable of handling up to 2 A per point, ensuring durable switching capabilities.

Technical Specifications

• Model: CP1L-EL20DR-D
• Power Supply: 24 VDC (Volt Direct Current)
• Input Type: DC (PNP/NPN selectable) for versatile sensor integration.
• Output Type: Relay (maximum 2 A per point) for robust control of various actuators.
• Maximum I/O Expansion: Supports up to 160 I/O points, providing extensive system scalability.
• Communication Interfaces: Integrated Ethernet and USB ports for comprehensive connectivity.
• Operating Temperature: 0°C to 55°C (Celsius), ensuring stable performance in diverse industrial environments.
• Certifications: CE, cULus, guaranteeing adherence to international safety and quality standards.

Applications

• Small Machines & OEM Panels: Ideal for compact machinery and custom-built OEM control panels requiring precise and reliable automation.
• Conveyor and Material Handling Systems: Optimizes the control of conveyor belts, robotic arms, and automated storage and retrieval systems.
• Packaging Equipment: Enhances the efficiency and accuracy of packaging machines, from filling to sealing processes.
• Building Automation: Perfect for controlling HVAC systems, lighting, security, and access control within intelligent buildings.
• Process Control: Suitable for managing and monitoring various process variables in discrete manufacturing and small-scale process industries.

Why Choose This Model?

The Omron CP1L-EL20DR-D stands out as a superior choice for your automation needs due to its compelling combination of affordability, integrated capabilities, and renowned Omron reliability. This model offers an exceptional balance of cost-effectiveness and advanced features, making it an intelligent investment for both new and upgrading systems.

• Affordable and Expandable: Gain advanced features without breaking your budget, coupled with the flexibility to expand as your operational demands grow.
• Integrated Networking: The built-in Ethernet port simplifies integration into existing networks, enabling remote monitoring, data acquisition, and control, which are crucial for Industry 4.0 initiatives.
• Reliable Omron Quality: Benefit from Omron's long-standing reputation for engineering excellence and durable industrial automation components, ensuring long-term operational stability.
• Flexible I/O Options: With 12 digital inputs and 8 relay outputs, alongside extensive expansion capabilities, this PLC adapts to a broad spectrum of control requirements.
• Ease of Use: The intuitive programming environment and USB port significantly reduce commissioning times, allowing for quicker deployment and maintenance.

Choosing the Omron CP1L-EL20DR-D means investing in a compact yet powerful PLC that delivers consistent performance, scalability, and the peace of mind that comes with Omron's global support and quality assurance. This unit is not just a component; it's a foundation for smarter, more efficient automation.
