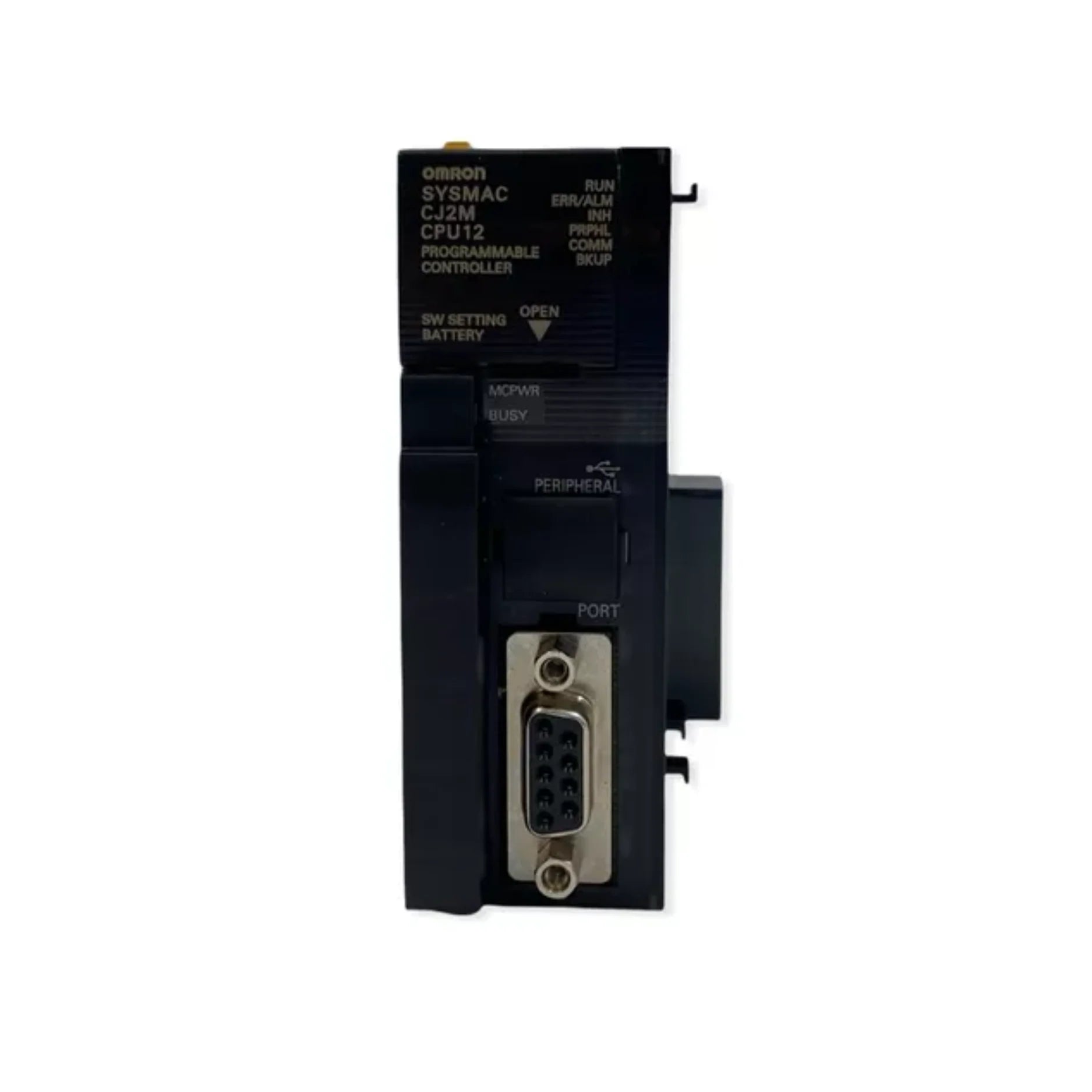

Omron CJ2M-CPU12

Overview

The Omron CJ2M-CPU12 is a powerful and compact Programmable Logic Controller (PLC) CPU unit meticulously engineered for seamless integration within Omron's renowned CJ-Series automation systems. This CPU unit delivers exceptional performance and versatility, making it an ideal choice for a diverse array of industrial automation applications. With a robust program capacity of 10K steps and a generous 32K words of data memory, the CJ2M-CPU12 is adept at managing medium to complex control tasks.

Designed for optimal connectivity, it features both an RS-232C serial port and a USB programming port, ensuring efficient communication with various devices and streamlined programming workflows. Furthermore, its impressive support for up to 2,560 I/O points and the capability to connect up to 3 expansion racks provide unparalleled flexibility and scalability, allowing your control systems to evolve with your operational demands.

Key Features

• Program Capacity: Accommodates up to 10K steps, facilitating the smooth execution of intricate automation programs.
• Large Data Memory: Offers 32K words of data memory, ensuring efficient storage and handling of critical process data.
• Versatile Communication Ports:
  • RS-232C Serial Port: Enables reliable serial communication for integration with a wide range of external devices and peripherals.
  • USB Programming Port: Provides a convenient and fast interface for programming, debugging, and system diagnostics.
• Extensive I/O Capacity: Supports an impressive 2,560 I/O points, allowing for comprehensive input and output configurations to suit complex industrial designs.
• Enhanced Expansion Capability: Compatible with up to 3 expansion racks, significantly extending system scalability and adaptability for future growth.
• Rapid Processing Speed: Achieves a basic instruction execution time of a mere 0.04 µs, guaranteeing high-speed operation and real-time control responses.
• Space-Saving Design: With compact dimensions of 90 mm (H) × 31 mm (W) × 84.5 mm (D), it optimizes space within control panels, making it suitable for installations where space is a premium.

Technical Specifications

• Model Number: CJ2M-CPU12
• Program Capacity: 10K steps
• Data Memory Capacity: 32K words
• Extended Memory (EM): 32K words × 1 bank
• Maximum I/O Points: 2,560
• Communication Interfaces:
  • RS-232C Serial Port: 1 port
  • USB Programming Port: 1 port
• Expansion Racks Supported: Up to 3
• Processing Speed: Basic instruction execution time of 0.04 µs
• Power Consumption: 5 VDC, 0.5 A
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 75°C
• Operating Humidity Range: 10% to 90% (non-condensing)
• Dimensions: 90 mm (H) × 31 mm (W) × 84.5 mm (D)
• Weight: Approximately 130 g
• Certifications: CE, cULus, Lloyd, NK

Applications

• Manufacturing Automation: Expertly manages intricate control tasks in high-speed assembly lines, robotic cells, and complex production systems, ensuring precision and efficiency.
• Process Control: Provides reliable oversight for critical operations in diverse industries such as chemical processing, water treatment, pharmaceutical manufacturing, and food production.
• Material Handling: Optimizes the control of conveyors, automated guided vehicles (AGVs), sorting systems, and sophisticated automated storage and retrieval solutions (AS/RS).
• Packaging Machinery: Coordinates precise functions in filling, sealing, labeling, and palletizing equipment, enhancing throughput and reducing downtime.

Why Choose This Model?

The Omron CJ2M-CPU12 stands out as a superior choice for your automation needs due to its confluence of robust performance, flexible connectivity, and scalable architecture. It delivers consistent, high-speed processing essential for demanding industrial environments, ensuring your operations run smoothly and efficiently. The inclusion of both RS-232C and USB ports provides adaptable communication options, simplifying integration with your existing and future peripheral devices.

Its remarkable scalability, supporting a significant number of I/O points and multiple expansion racks, means this CPU can easily adapt to evolving system requirements without costly overhauls. Furthermore, its compatibility with Omron's intuitive programming software significantly reduces development and troubleshooting time, allowing for more agile system management. Choose the Omron CJ2M-CPU12 for a reliable, high-performance, and future-proof foundation for your industrial automation systems.

Order Now

Elevate your industrial control systems with the Omron CJ2M-CPU12. Experience unparalleled performance, flexibility, and reliability. Contact us today to place your order or to learn more about how this advanced PLC CPU can optimize your operations.
