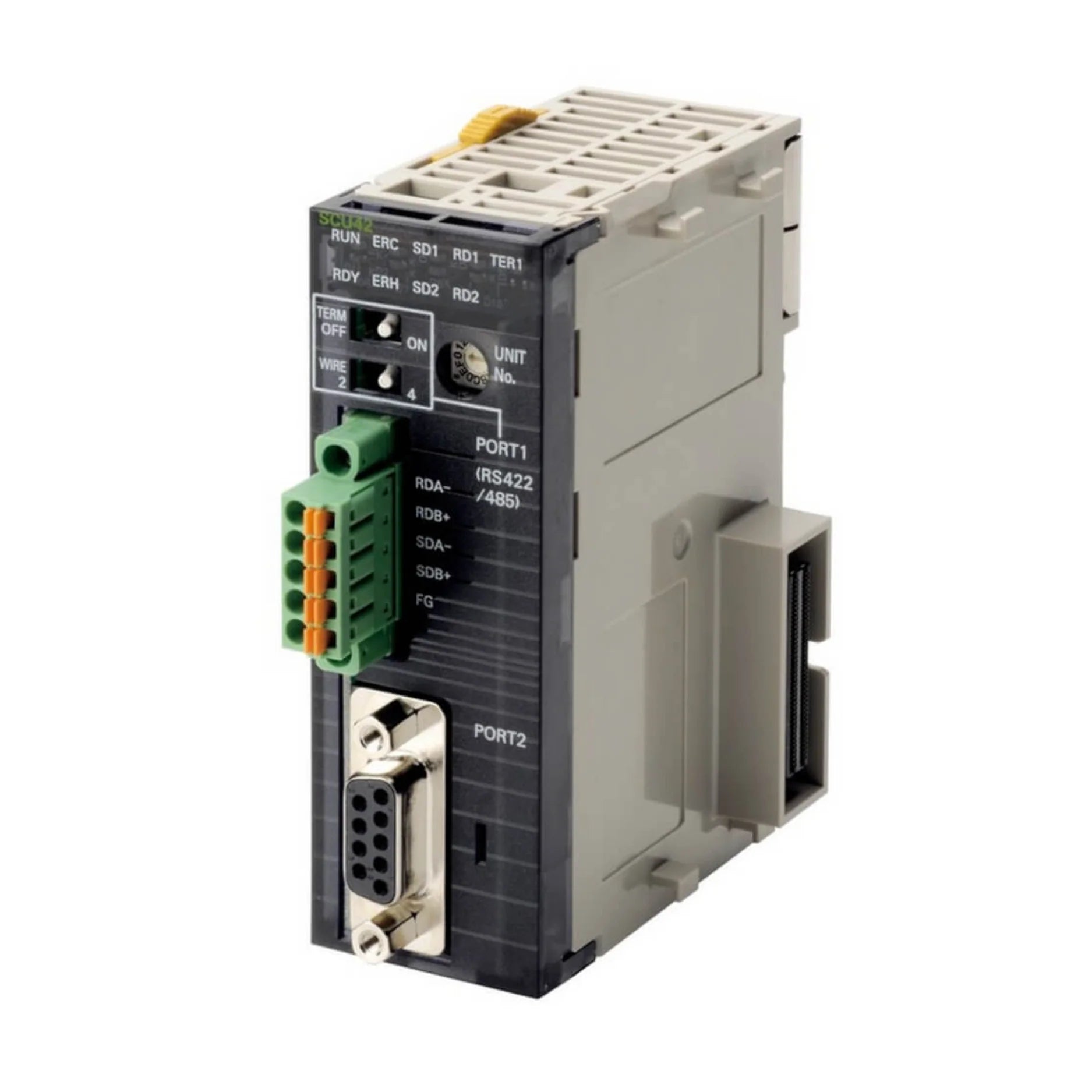

Omron CJ1W-SCU42

Overview

Unlock the full communication potential of your automation systems with the Omron CJ1W-SCU42 2-Port Serial Communication Unit. Specifically engineered for seamless integration with Omron CJ-Series PLCs, this robust module provides unparalleled flexibility for connecting a wide array of serial devices. Supporting both RS-232C and RS-422A/485 interfaces, the CJ1W-SCU42 is an essential component for environments requiring reliable and versatile serial data exchange. Whether you're integrating legacy equipment or expanding your current system with modern peripherals, this unit ensures your PLC can effortlessly communicate with everything from barcode readers and printers to advanced sensors and other PLCs, optimizing efficiency and data flow across your operations.

Key Features

• Dual Independent Ports: Benefit from two fully independent serial ports, each capable of being individually configured for either RS-232C or RS-422A/485 communication, maximizing connectivity options.
• High-Speed Baud Rate: Achieve rapid data transfers with a maximum baud rate of up to 115.2 kbps per port, ensuring efficient communication with demanding serial devices.
• Extensive Protocol Support: The unit supports a diverse range of communication protocols including Host Link, NT Link, no-protocol, and Modbus (via function blocks), alongside user-defined options, offering broad compatibility.
• Versatile Wiring and Configuration: DIP switch settings provide easy and precise individual port configuration, allowing for tailored solutions to meet specific application requirements.
• Seamless CJ-Series Integration: Designed for effortless installation, the unit integrates smoothly into any CJ-Series CPU rack or expansion rack, simplifying system setup and expansion.
• Advanced Data Handling: Capable of both point-to-point and multidrop communication setups, providing flexible network topologies for various industrial applications.

Technical Specifications

• Model Number: CJ1W-SCU42
• Number of Ports: 2
• Supported Interfaces: RS-232C, RS-422A/485
• Maximum Baud Rate: 115.2 kbps
• Mounting: DIN rail
• Power Supply: 5 VDC from PLC bus
• Power Consumption: Approximately 0.45 A
• Operating Temperature: 0°C to 55°C
• Dimensions: 31 mm (W) × 90 mm (H) × 83 mm (D)
• Weight: Approximately 200 g
• Certifications: CE, cULus

Applications

• Barcode and RFID Readers: Facilitates high-speed communication with identification systems for tracking and data capture.
• Serial Printers and Scanners: Enables seamless integration with various output and input devices for a comprehensive automation solution.
• Weighing Systems: Connects to precision weighing equipment for accurate measurement and process control.
• Legacy Equipment Integration: Bridges the gap between older serial devices and modern PLC systems, extending the lifespan of existing machinery.
• Multi-Device Field Communication: Ideal for managing communication with multiple field devices within complex industrial environments.

Why Choose This Model?

The Omron CJ1W-SCU42 stands out as a superior choice for enhancing your automation infrastructure due to its exceptional design and feature set. Its dual-port architecture allows for simultaneous communication with a multitude of serial devices, significantly improving system efficiency and reducing the need for multiple communication modules. The unparalleled flexibility in supported protocols ensures easy integration with an extensive range of hardware, safeguarding your investment and simplifying complex system designs. Backed by Omron’s renowned industrial standards, you can trust in the CJ1W-SCU42's reliable performance and robust construction, even in the most demanding industrial settings. Furthermore, its compact form factor seamlessly fits into existing CJ-Series systems, optimizing panel space and streamlining installation. Elevate your PLC's communication capabilities and ensure robust, adaptable connectivity with the CJ1W-SCU42.

Order Now

Ready to enhance your Omron CJ-Series PLC's communication capabilities? Order the Omron CJ1W-SCU42 2-Port Serial Communication Unit today and experience the benefits of flexible, reliable, and high-performance serial connectivity. Upgrade your automation system with a solution that delivers precision, versatility, and efficiency.
